Cisco ASA 5506-X Installation Guide

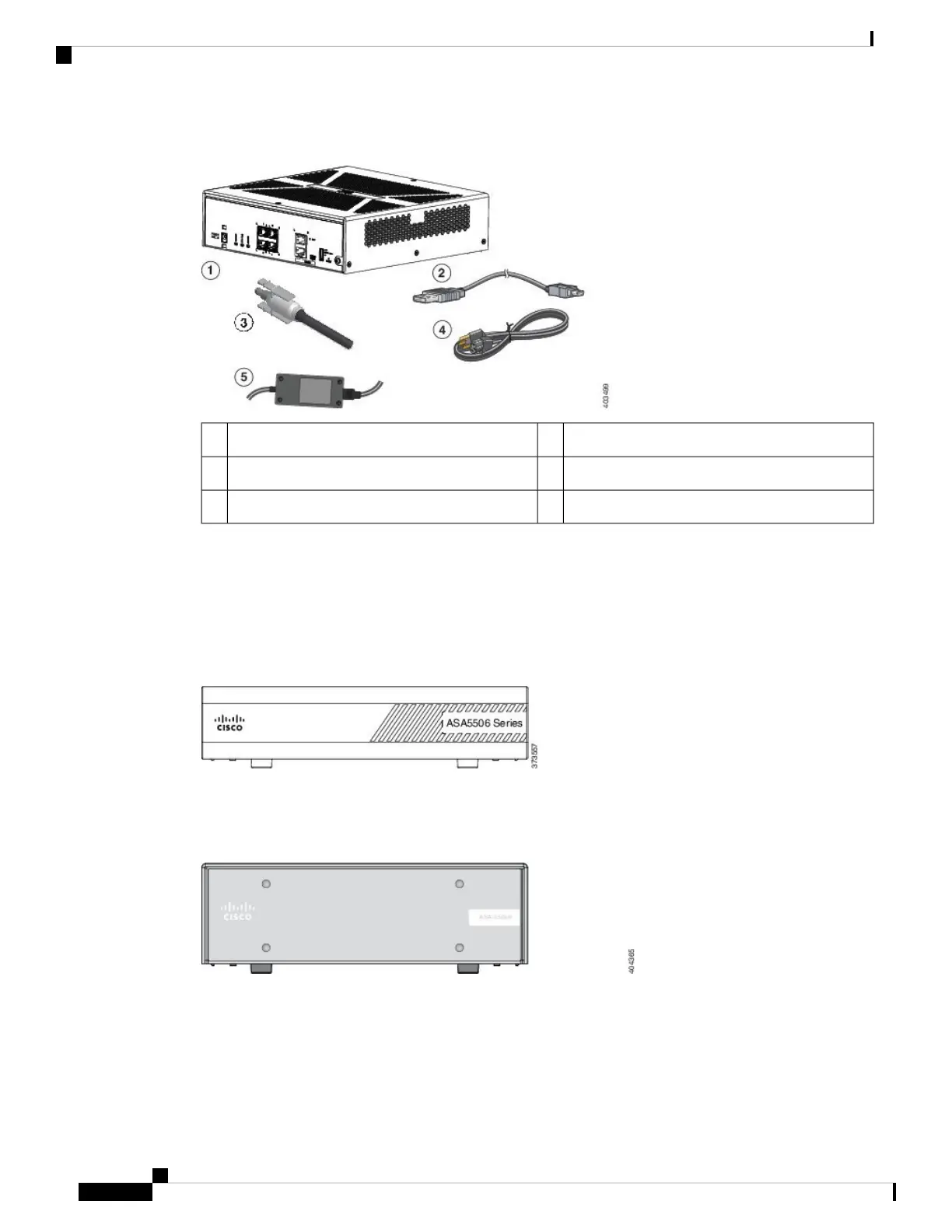

Figure 2: ASA 5506H-X Package Contents
USB console cable (Type A to Type B)2Chassis1
Power cord4Power cord retention lock3
Power supply5
Front Panel
The following figure shows the front panel of the ASA 5506-X. The ASA 5506W-X has an identical front
panel. Note that there are no connectors or LEDs on the front panel.
Figure 3: 5506-X and 5506W-X Front Panel
The following figure shows the front panel of the ASA 5506H-X. Note that there are no connectors or LEDs
on the front panel.
Figure 4: 5506H-X Front Panel
Rear Panel
The following figure shows the rear panel of the ASA 5506-X. The 5506W-X has an identical rear panel.
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
Online Only4
Overview
Front Panel

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
