Cisco ASA 5506-X Installation Guide

You can only mount the chassis with the front panel oriented toward either the ceiling or the floor. Wall mounting in
other orientation is not supported.
What to do next
Install the cables as described in Quick Start Guide for your default software configuration.
Rack-Mount the Chassis
Follow these steps to mount the chassis in a rack-mount shelf.
You mount only one ASA 5506H-X in the rack-mount shelf.
The dimensions of the ASA 5506H-X are 3.46 x 18.3 x 19.5 in. (8.79 x 46.48 x 49.52 cm). The PID is
asa5506h-rack-mnt=.
Note
Step 1 Place the chassis upside down on a large, stable work area. If you are installing two chassis in the shelf, place the second
chassis beside the first, also upside down.
Step 2 Invert the sliding trays and position the chassis on top of them such that the front of the device(s) and the front of the tray
are in the same direction.
Step 3 Adjust the position of the first chassis and the tray until the three mounting holes in the dimples in the bottom of the shelf
are aligned with the mounting holes in the bottom of the chassis.
Step 4 Tighten the captive tray screws into the shelf to lock it into place.

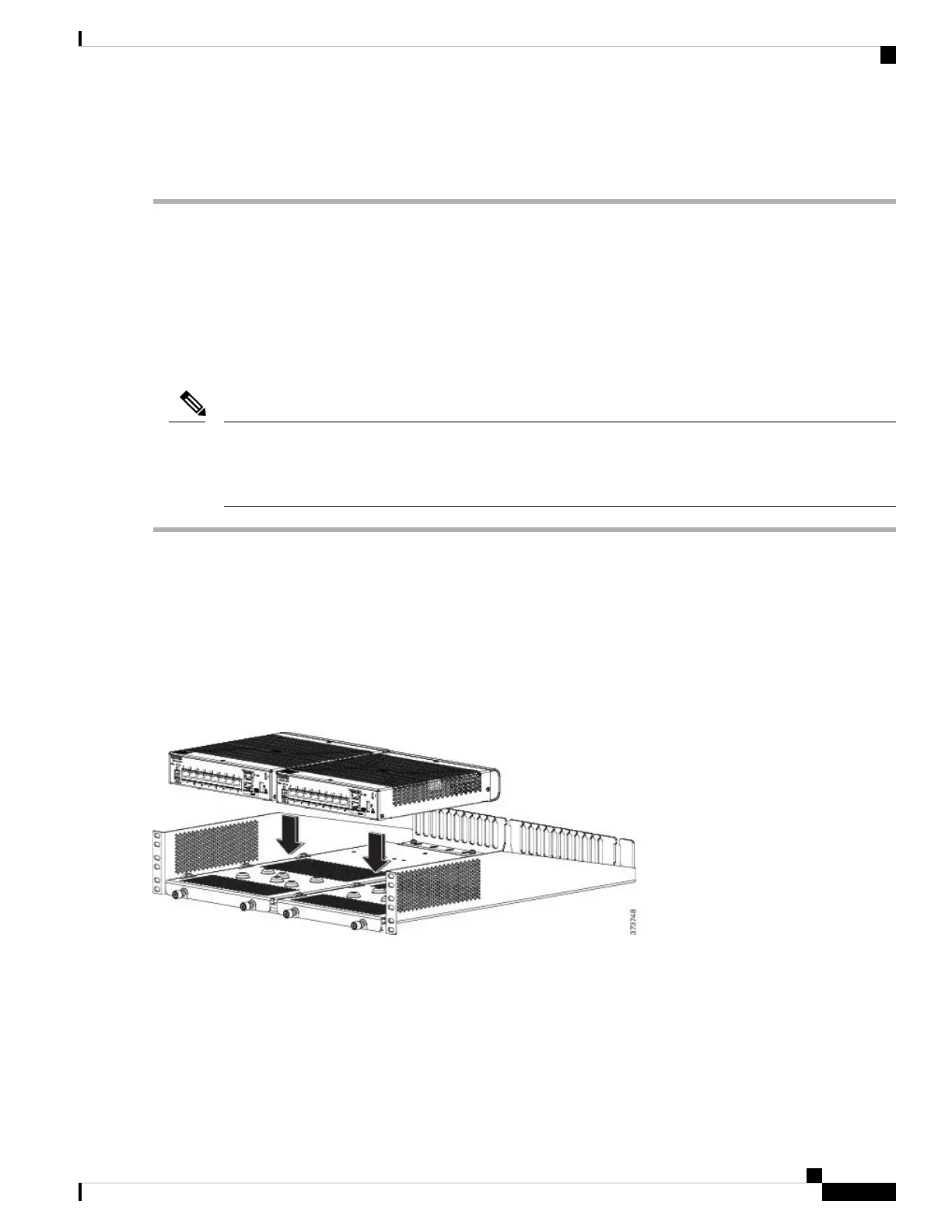

Figure 23: ASA 5506-X and ASA 5506W-X in the Rack-Mount Shelf
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
29Online Only
Mount the Chassis
Rack-Mount the Chassis

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
