Cisco ASA 5506-X Installation Guide

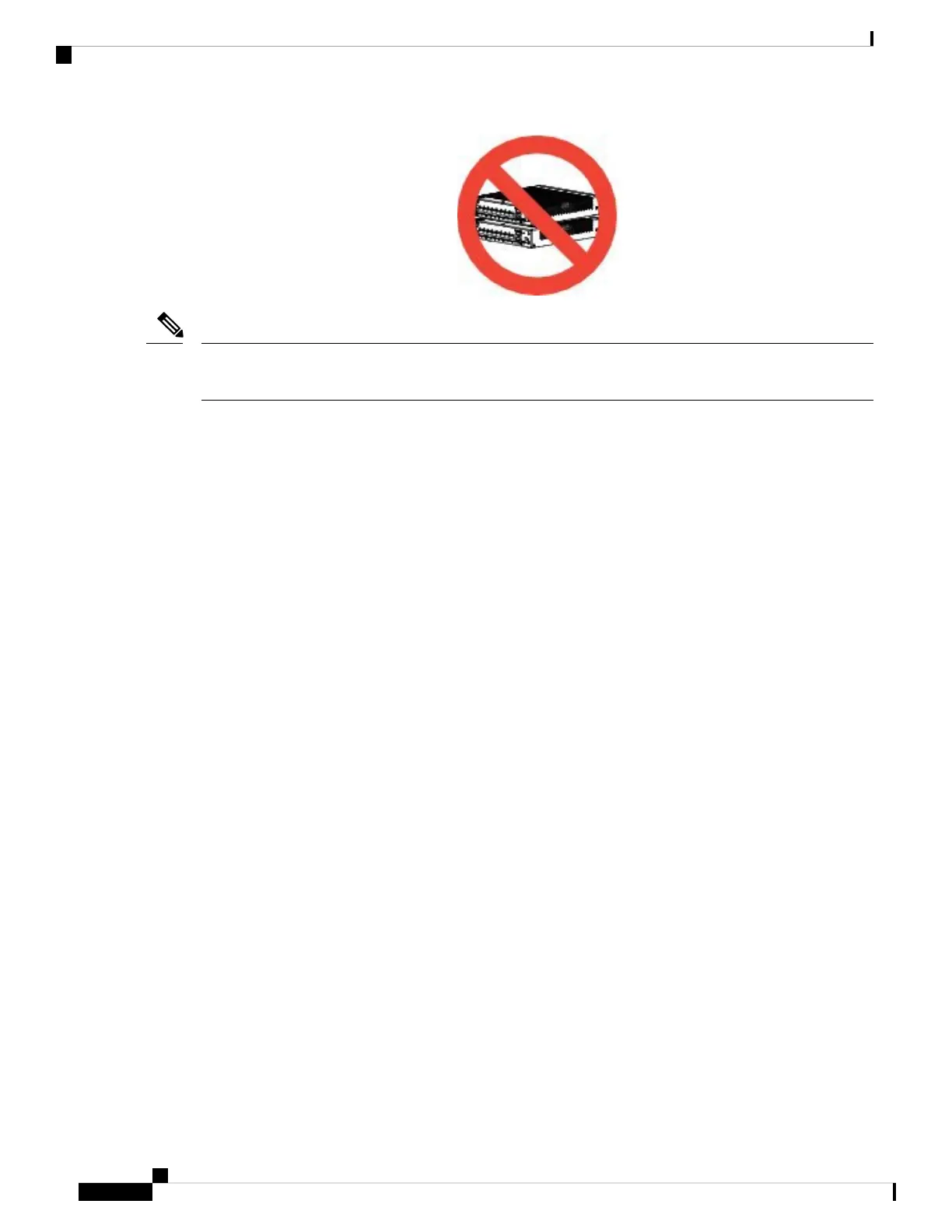

Do not stack the ASA chassis on top of another ASA chassis. If you stack the units, they will overheat, which
causes the units to power cycle.
Note
The ASA 5506-X, 5506W-X, and ASA 5506H-X have been validated for the following security standards
certifications:
• Federal Information Processing Standards (FIPS) 140-2 for ASA 9.12.x
• Common Criteria (CC) certification for the Network Device Collaborative Protection Profile, (NDcPPv2.1),
VPN Gateway Module (VPNGW_MOD_v1.0), and Firewall Module (FW_MOD_v1.3) for ASA 9.12.x
ASA 5506W-X Wireless Features
The ASA 5506W-X supports two high-performing spatial stream rates over a deployable distance with
high reliability when serving clients. The ASA 5506W-X contains two simultaneous dual-band radios
(2.4-GHz and 5-GHz 802.11n MIMO radios) in a controller-based mode or autonomous mode. It has
integrated internal antennas that support full inter-operability with leading 802.11n clients. The radio
hardware supports Unified, FlexConnect, and Monitor-mode.
The ASA 5506W-X has the following processor features:
• 128 MB NAND flash size
• 1 MB NOR flash size
• 128 MB DDR2 memory bus, x32
The 2.4 GHz and 5 GHz 802.11n radios have the following features:
• 802.11n standard compliant
• A-MPDU TX
• HT Duplicate Mode
• 2TX x 2RX
• 2-spatial streams, 300 Mbps PHY rate
• Maximal ratio combining (MRC)
• Cyclic Shift Diversity (CSD)
• MCS0-MCS15; Short or Long Guard Intervals
• DFS for UNII-2 and UNII-2 Extended channels, including 0.5us radar pulse detection
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
Online Only2
Overview
About the ASA 5506-X, ASA 5506W-X, and ASA 5506H-X

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
