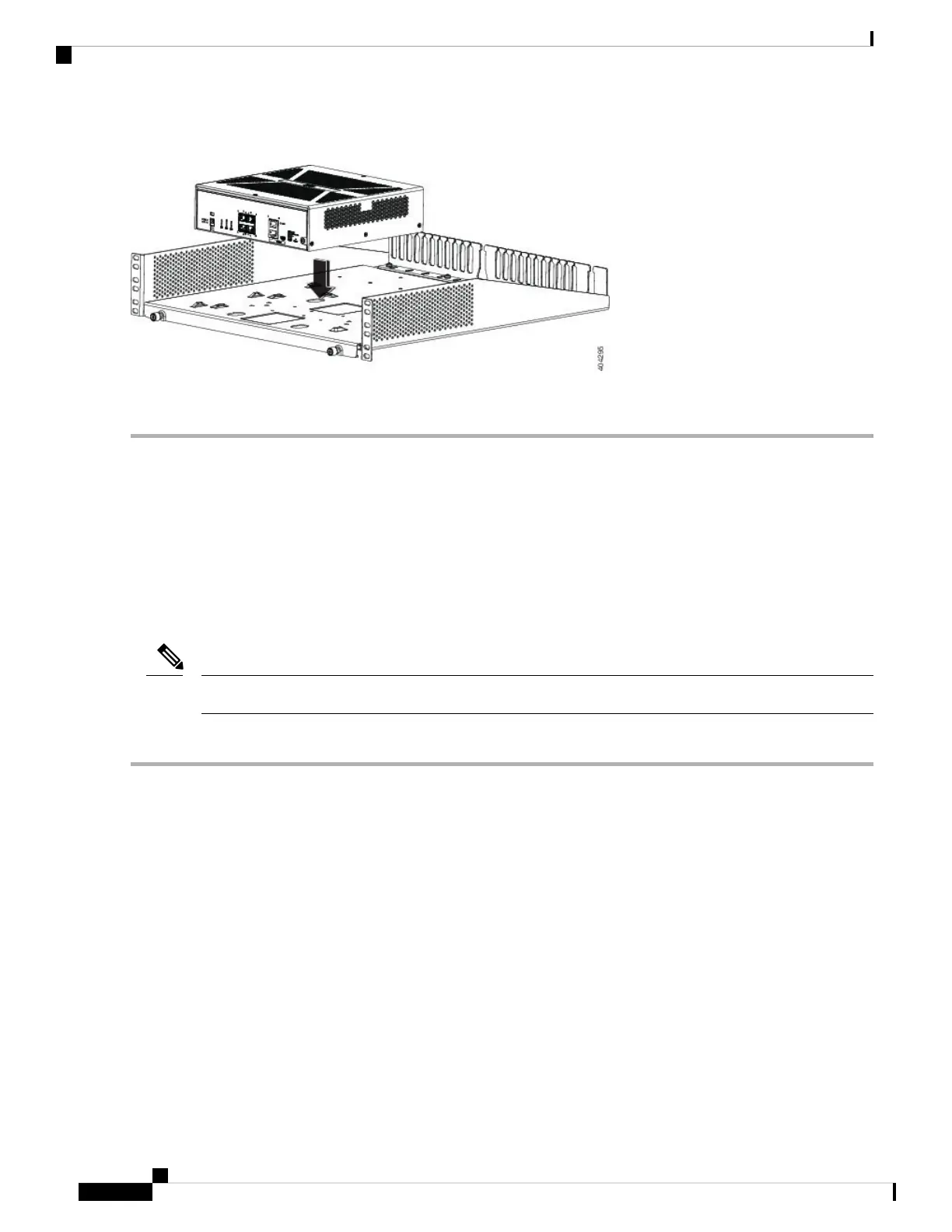

Figure 24: ASA 5506H-X in the Rack-Mount Shelf
Step 5 Carefully turn the tray right-side up and slide it into the rack-mounted shelf.
What to do next
Install the cables as described in Getting Started Guide for your default software configuration.
Install the ASA 5506H-X in a DIN Rail
You can use the 7.5-mm thick 45mm wide top hat DIN rail for the ASA 5506H-X. Secure the DIN rail to the
mounting surface approximately every 7.8 inches (200 mm) and use end-anchors appropriately.
We recommend that you install the ASA 5506H-X on a steel DIN rail for extra stability.
Note
To attach the ASA 5506H-X to a 35-mm wide DIN rail, follow these steps:
Step 1 Attach the DIN rail bracket to the back of the chassis using the four screws provided.
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
Online Only30
Mount the Chassis
Install the ASA 5506H-X in a DIN Rail
