Chapter 1 Preparing for Installation
Site Requirement Guidelines
Figure 1-20 shows the type of terminal block required for DC-input cable connections.

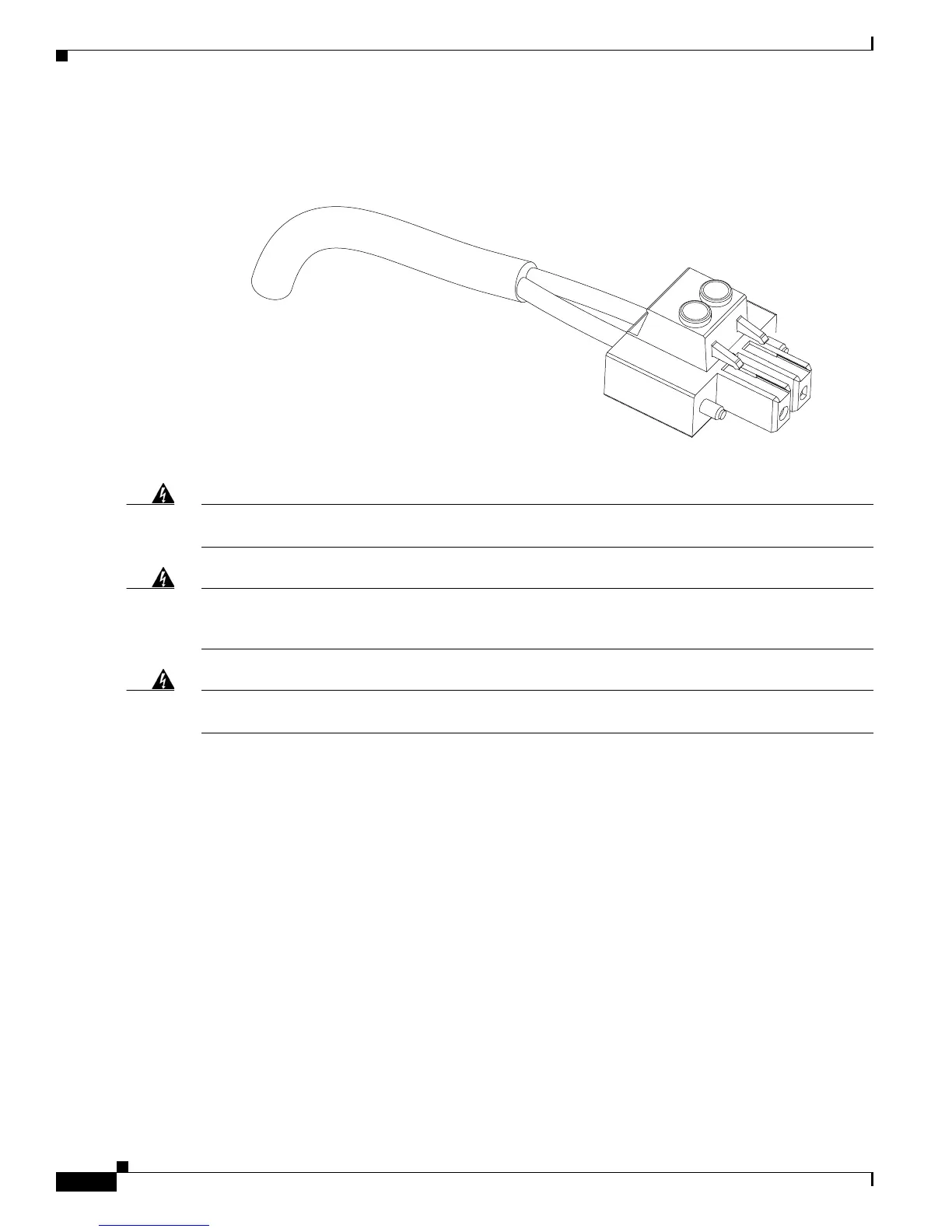

Figure 1-20 DC Power Cable Terminal Block
Figure 1-21 shows DC power source cable connections for single DC power module.
Warning To avoid shock hazard, be sure to apply shrink wrap tubing around the wire entry area of the terminal
block.
Warning Hazardous voltage or energy may be present on power terminals. Always replace cover when
terminals are not in service. Be sure uninsulated conductors are not accessible when cover is in
place. Statement 1086
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
