Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
OL-26701-02
Chapter 2 Unpacking and Installing the Chassis
Rack-Mounting the Router Chassis
Use this procedure to install the chassis in the equipment rack:
Step 1 With two people’s aid, lift the chassis into the rack holding top and bottom of the chassis (see
Figure 2-4).

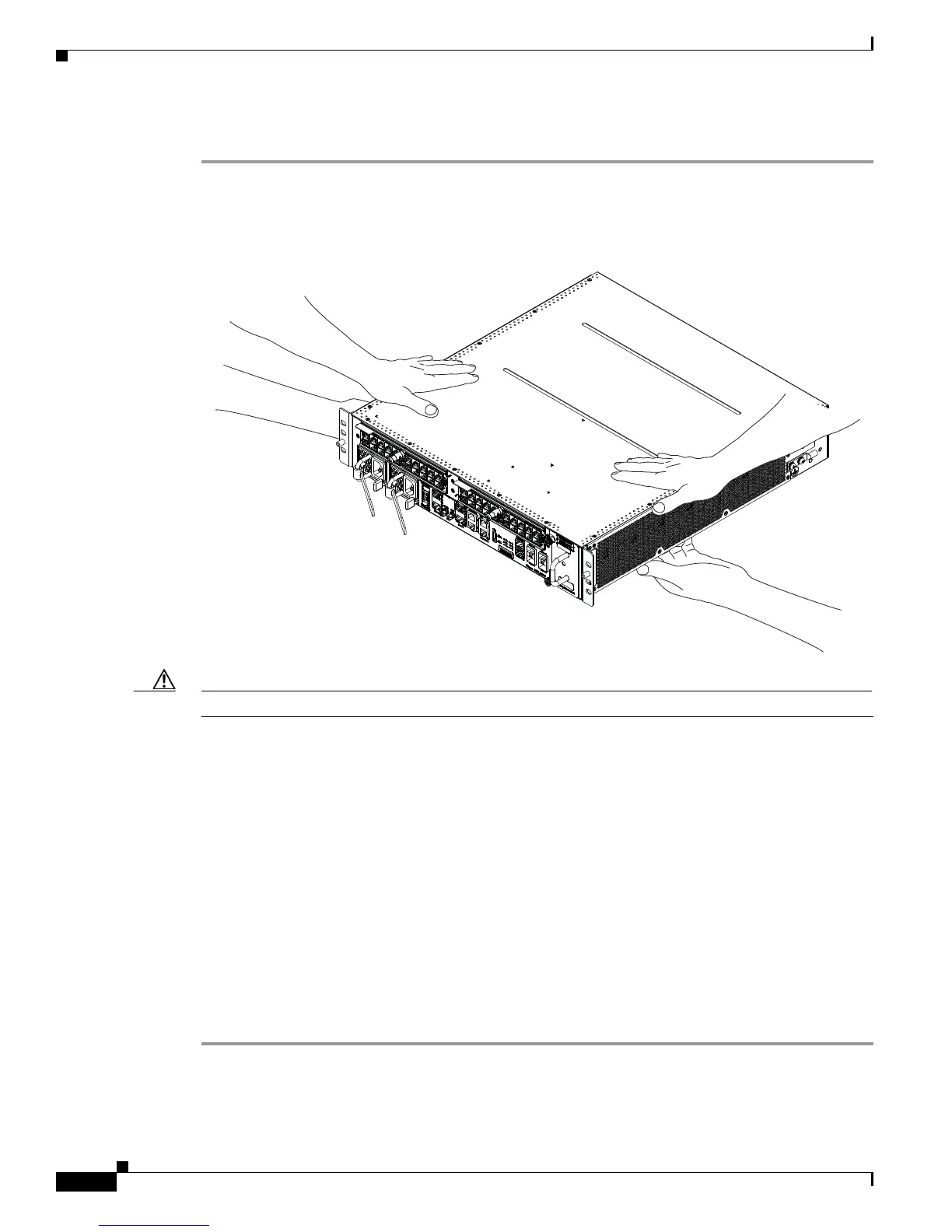

Figure 2-4 Correct Lifting Positions
Caution Do not grasp air inlet or exhaust when lifting the router chassis.
Step 2 Position the chassis until the rack-mounting flanges are flush against the mounting rails on the rack.
Step 3 Hold the chassis in position against the mounting rails while the second person finger-tightens a screw
to the rack rails on each side of the chassis.
Step 4 Finger-tighten two more screws to the rack rails on each side of the chassis. Space the screws evenly
between the top and bottom of the chassis.
Step 5 Attach the side brackets to the left and right side of the chassis by finger-tightening two screws through
each bracket into the chassis.
Step 6 Attach the side bracket front flanges to the rack by finger-tightening two screws through each bracket
flange into the front mounting rails of the rack.
Step 7 Fully tighten both the screws on the chassis mounting flanges on each side to secure the chassis to the
rack rails.
Step 8 Fully tighten the two screws on each side bracket to secure the brackets to the chassis.
Step 9 Fully tighten the two screws on each side bracket flange to secure the brackets to the rack rails.
