Chapter 2 Unpacking and Installing the Chassis
Supplemental Bonding and Grounding Connections
Use this procedure to attach a grounding cable lug to the router:
Step 1 Insert the grounding screws through the locking washers, and into the threaded grounding receptacle on
the Cisco ASR 9001 Router chassis as shown in Figure 2-6.
Step 2 Tighten the grounding screws securely to the receptacles.
Step 3 Prepare the other end of the grounding wire, and connect it to the appropriate grounding point at your
site to ensure an adequate earth ground.

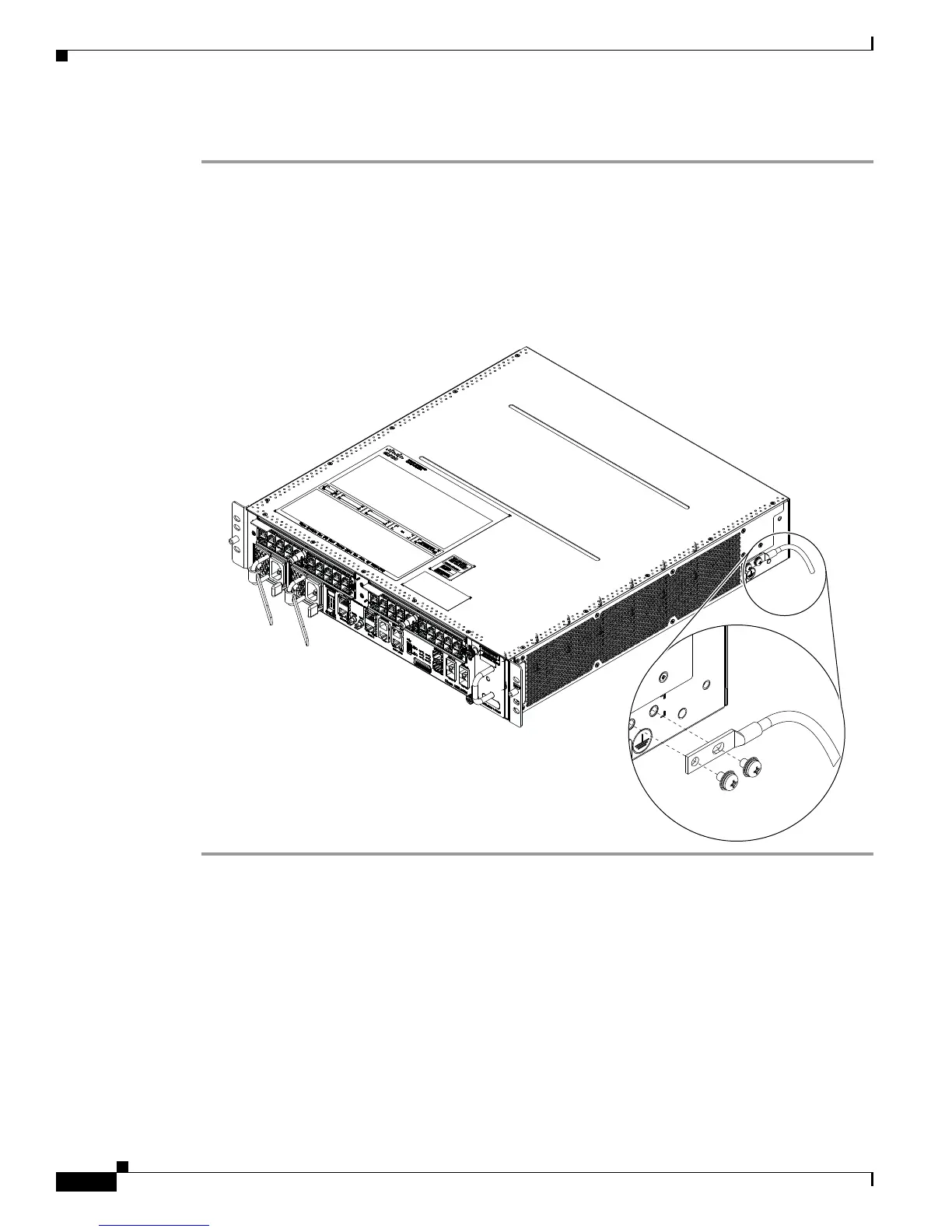

Figure 2-6 NEBS Bonding and Grounding for the Cisco ASR 9001 Router
332154
