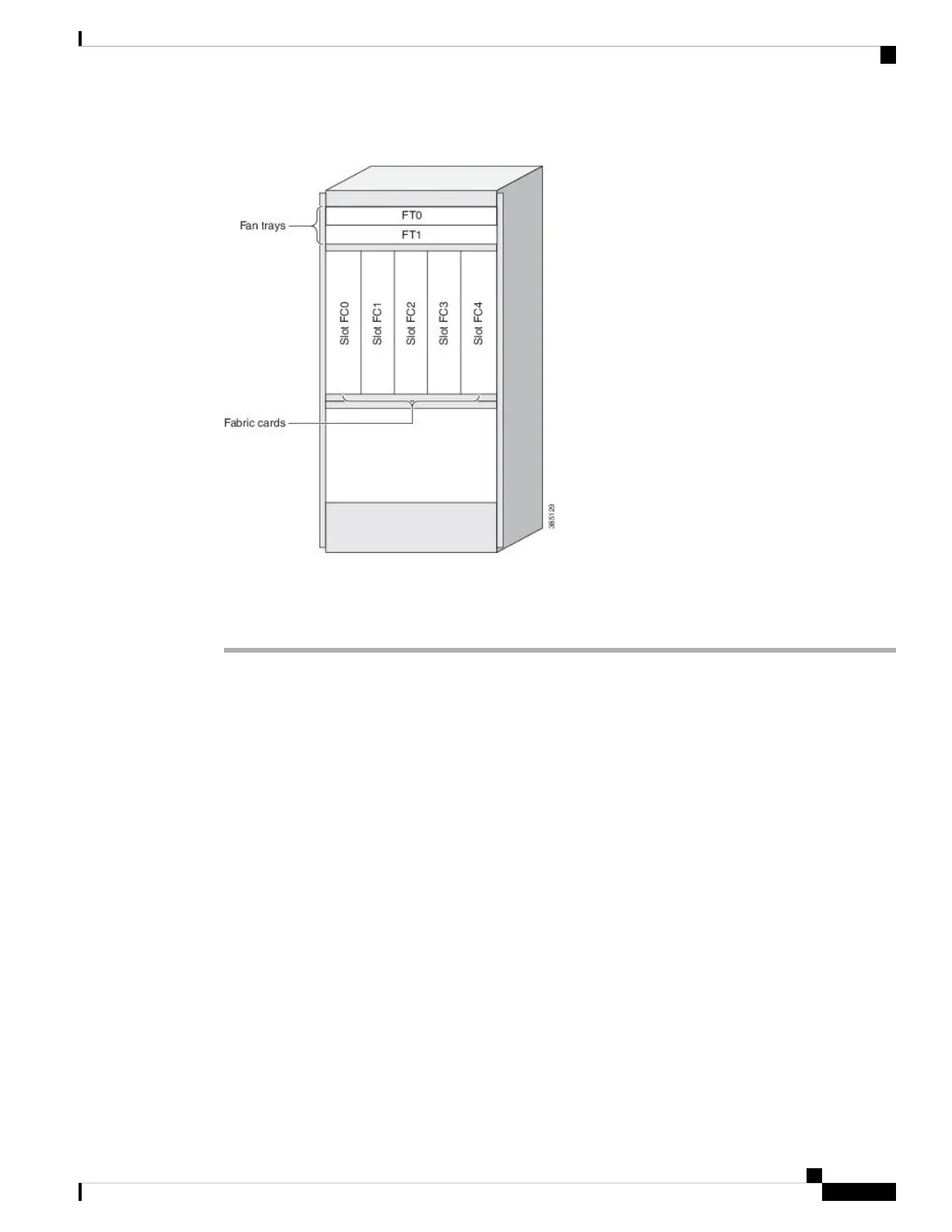

Figure 94: Cisco ASR 9910 Router Components and Slot Numbering for Fabric Cards
Follow these steps to remove RSP and line cards from the chassis.
Procedure
Step 1 Refer to the above figures to identify each card and write down the card type and slot number on a piece of
paper. You will need this information when you reinstall the cards in the chassis to be sure you reinstall each
card in its original slot.
Step 2 To remove a card starting at the lowest numbered slot:
a) Use a screwdriver to loosen the captive screws at the ends of the line card front panel.
b) Pivot the ejector levers to unseat the card from the backplane connector.
c) Slide the card out of the slot and place it directly into an antistatic bag or other ESD-preventive container.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
87
Unpacking and Installing the Chassis
Removing RSP Cards and Line Cards from the Cisco ASR 9006, 9010, 9904, 9906, and 9910 Routers
