Cisco ASR 9001 Installation Guide

Screws attaching chassis
to plenum
2Screws attaching chassis
to rack
1
Step 9 Install the optional chassis accessories, if desired. See Installing Optional Chassis Accessories on the Cisco
ASR 9006 Router, on page 135.
The figure below shows the air baffle accessory kit and Cisco ASR 9006 Router with its optional accessories
fully installed in a two-post 19-inch rack.

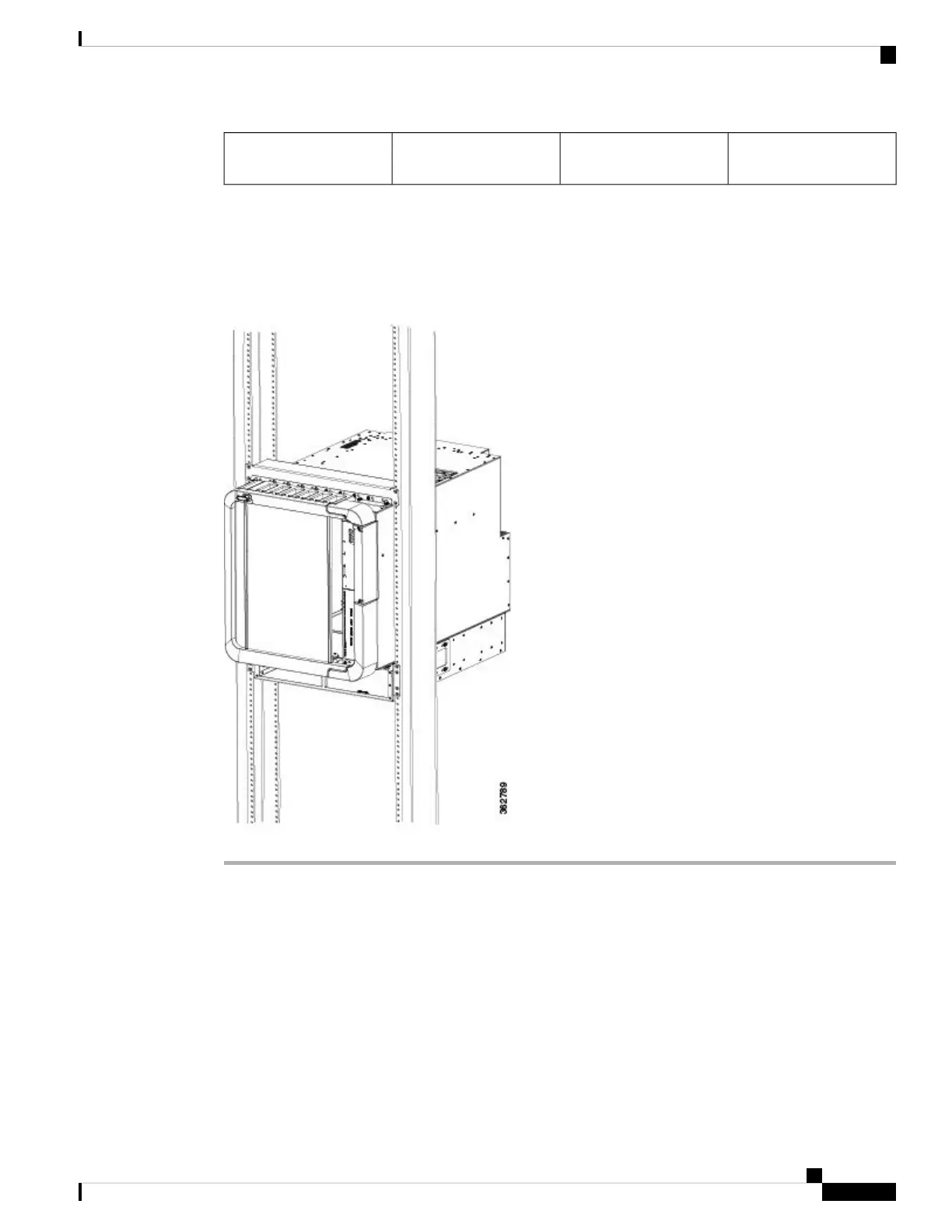

Figure 152: Cisco ASR 9006 Router Fully Installed with Air Baffle Accessory Kit and Optional Chassis Accessories
Installing Optional Air Baffles on the Cisco ASR 9904 Router
The Cisco ASR 9904 Router has an optional air baffle accessory kit (ASR-9904-BAFFLE=) for mounting
the router chassis in a 2-post 23-inch rack. The accessory kit includes:
• Two adapter plates
• Two air baffles (left and right)
• Two air deflectors
• Twenty-eight 12-24 screws for attaching the air baffles and air deflectors to the adapter plate
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
145
Unpacking and Installing the Chassis
Installing Optional Air Baffles on the Cisco ASR 9904 Router

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
