Cisco ASR 9001 Installation Guide

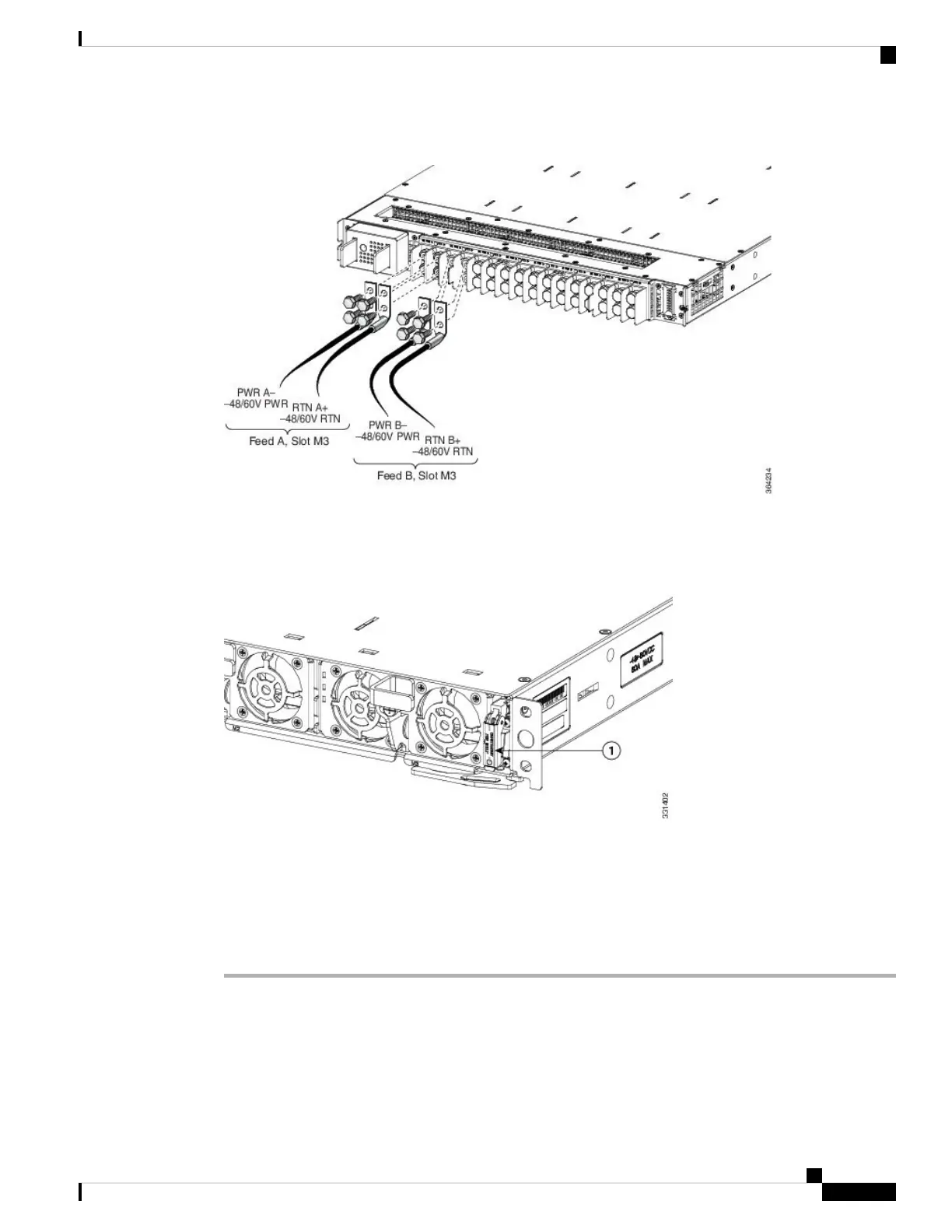

Figure 196: Typical Power Connections to a Power Tray for a Single DC Power Module—Version 3 Power System
Figure 197: Location of DC Power Switch—Version 2 and Version 3 Power System
a. Power switch
Step 5 Replace the clear plastic safety covers over the connection terminal studs. Step 6 shows the plastic safety
cover being installed over the version 2 DC power tray connection terminals. The plastic covers for the version
2 DC power tray are similar.
Step 6 Proceed to Powering On the Router, on page 195.
Powering On the Router
Follow these steps to turn on power to an AC-powered or DC-powered router:
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
195
Installing Cards and Modules in the Chassis
Powering On the Router

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
