Cisco ASR 9001 Installation Guide

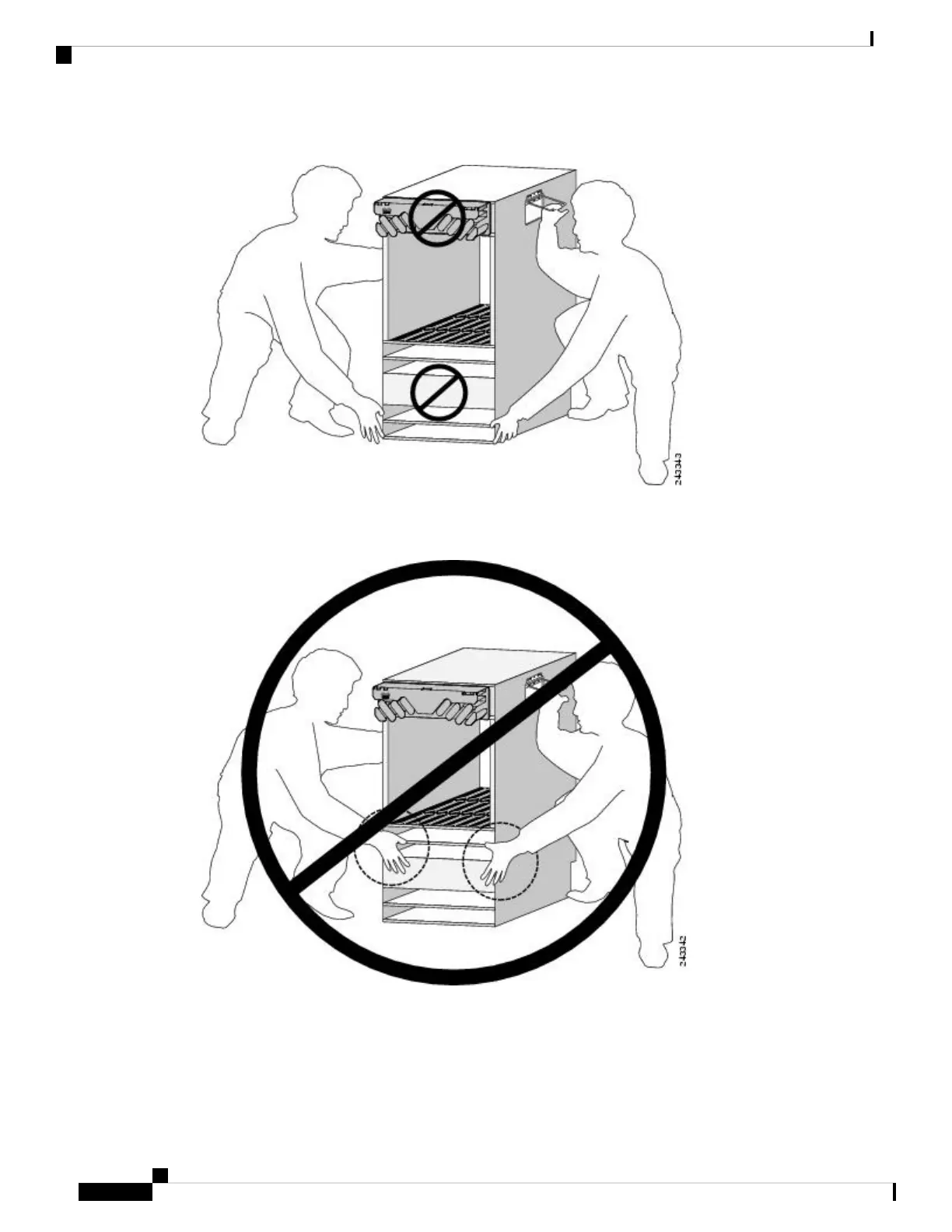

Figure 118: Correct Lifting Positions
Do not grasp the card cage or the air inlet grill when lifting the router chassis (see the figure below).
Caution
Figure 119: Incorrect Lifting Handholds
Step 2 Position the chassis until the rack-mounting flanges are flush against the mounting rails on the rack.
Step 3 Hold the chassis in position against the mounting rails while the second person finger-tightens a screw to the
rack rails on each side of the chassis.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
112
Unpacking and Installing the Chassis
Installing the Chassis in a 2-Post Rack

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
