Cisco ASR 9006 Installation Guide

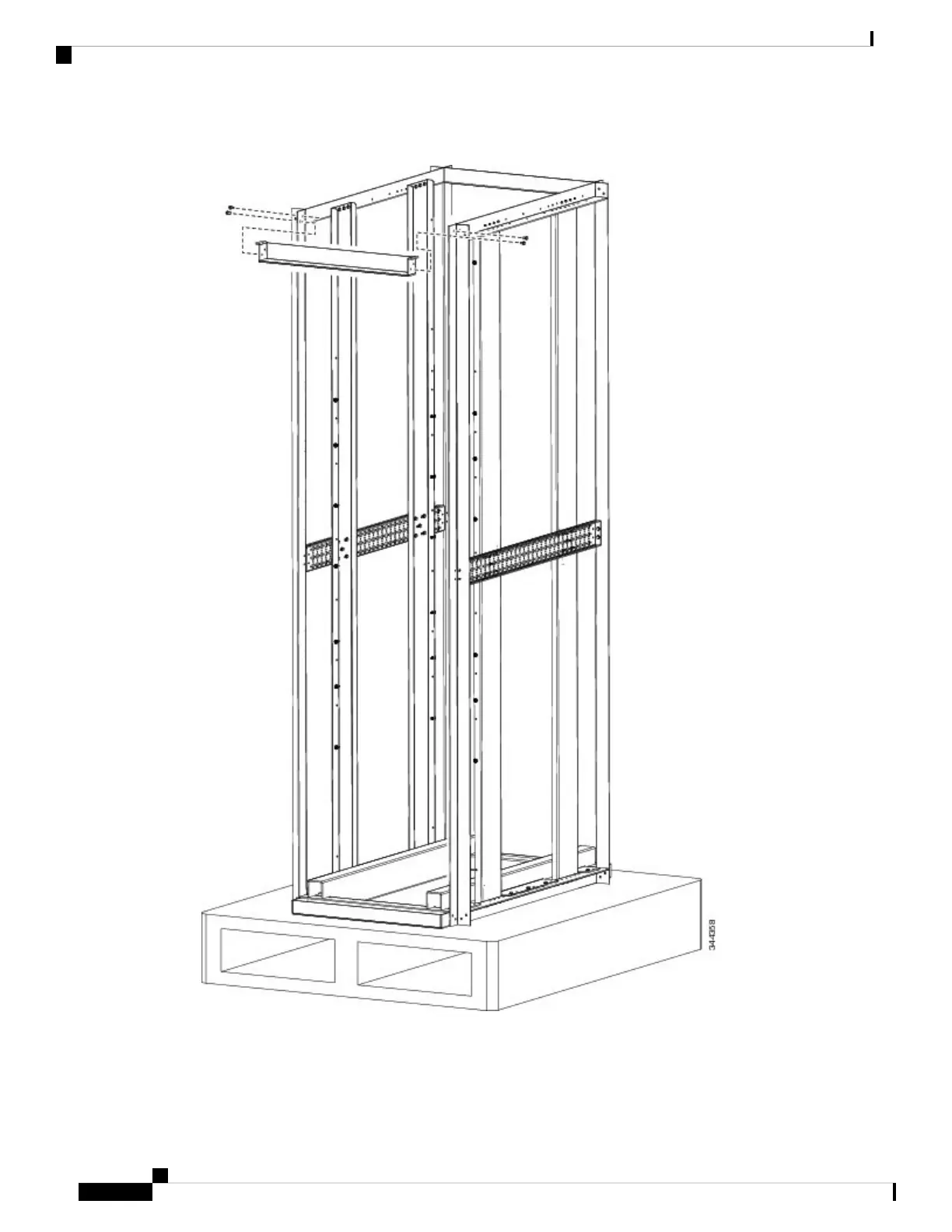

Figure 74: Cross-brace and Attachment Bolts on the Shipping Rack
Step 6 Use a Phillips screwdriver to unscrew the rear mounting flange from the system and rack.
Step 7 Use a Phillips screwdriver to unscrew the front mounting flange from the rack.
Step 8 Remove two bolts per hold-down bracket that secure the brackets to the pallet (see the figure below).
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
70
Unpacking and Installing the Chassis
Unpacking the Cisco ASR 9922 Router

Cisco ASR 9006 Specifications

General

Chassis Type	Modular
Rack Units	10 RU
Slots	6
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Front-to-back airflow
Input Voltage	100-240 VAC or -48 to -60 VDC
Supported Protocols	IPv4, IPv6, MPLS, L2VPN, L3VPN
Interfaces	10GE, 40GE, 100GE
Management Interfaces	Ethernet, Console, Auxiliary
