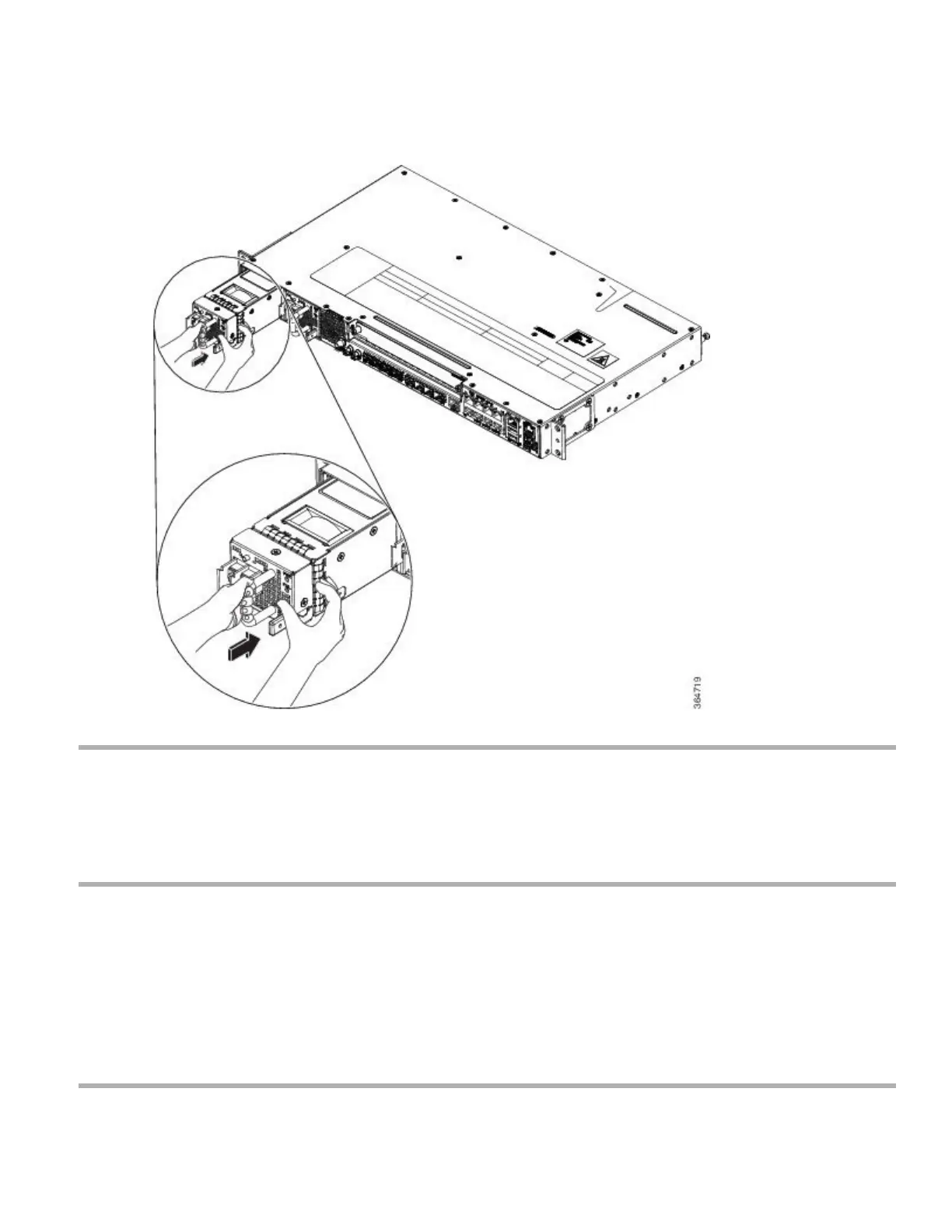

Figure 13: Installing the DC Power Supply Module
Activate a DC Power Supply Module
Perform the following procedure to activate a DC power supply:
Procedure
Step 1 Remove the tape from the circuit-breaker router handle, and restore power by moving the circuit-breaker router handle
to the On (|) position.
Step 2 Verify power supply operation by checking if the respective power supply front panel LED (PS0 or PS1) is green.
Step 3 If the LEDs indicate a power problem, see Troubleshooting.
Step 4 If you are connecting a redundant DC power supply, repeat these steps for the second power source.
If you are connecting a redundant DC power supply, ensure that each power supply is connected to a separate
power source in order to prevent power loss in the event of a power failure.
Note
17

Cisco ASR-920-12SZ-IM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Networking standards	IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
Product color	Gray
Rack capacity	1U
Antenna type	Not supported
AC input voltage	100 - 240 V
Power source type	AC, DC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	130 W
Non-operating altitude	0 - 4570 m
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005
Electromagnetic compatibility	FCC CFR47 Part 15 Class A
Mean time between failures (MTBF)	407230 h
Firewall	-
Security algorithms	IPSec

Weight and Dimensions

Depth	286.54 mm
Width	444.5 mm
Height	44 mm
Weight	4830 g
