The following figures shows how to attach the brackets on the Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Router for
a 23-inch rack.

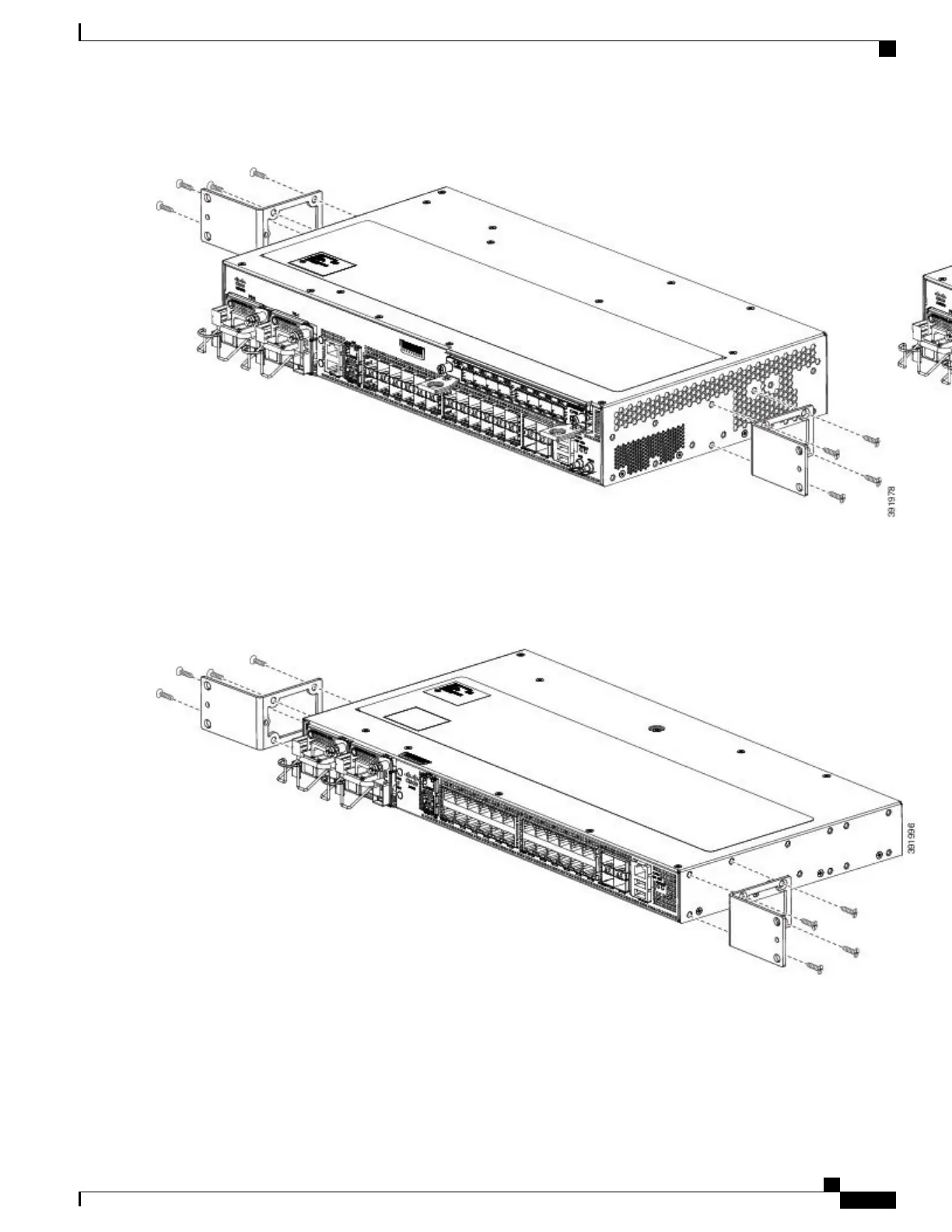

Figure 17: Attaching Mounting Brackets to Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Routerfor a 23-inch Rack (Front, Middle, and
Rear Positions)
