Cisco C1101-4P Hardware Installation Guide

R314

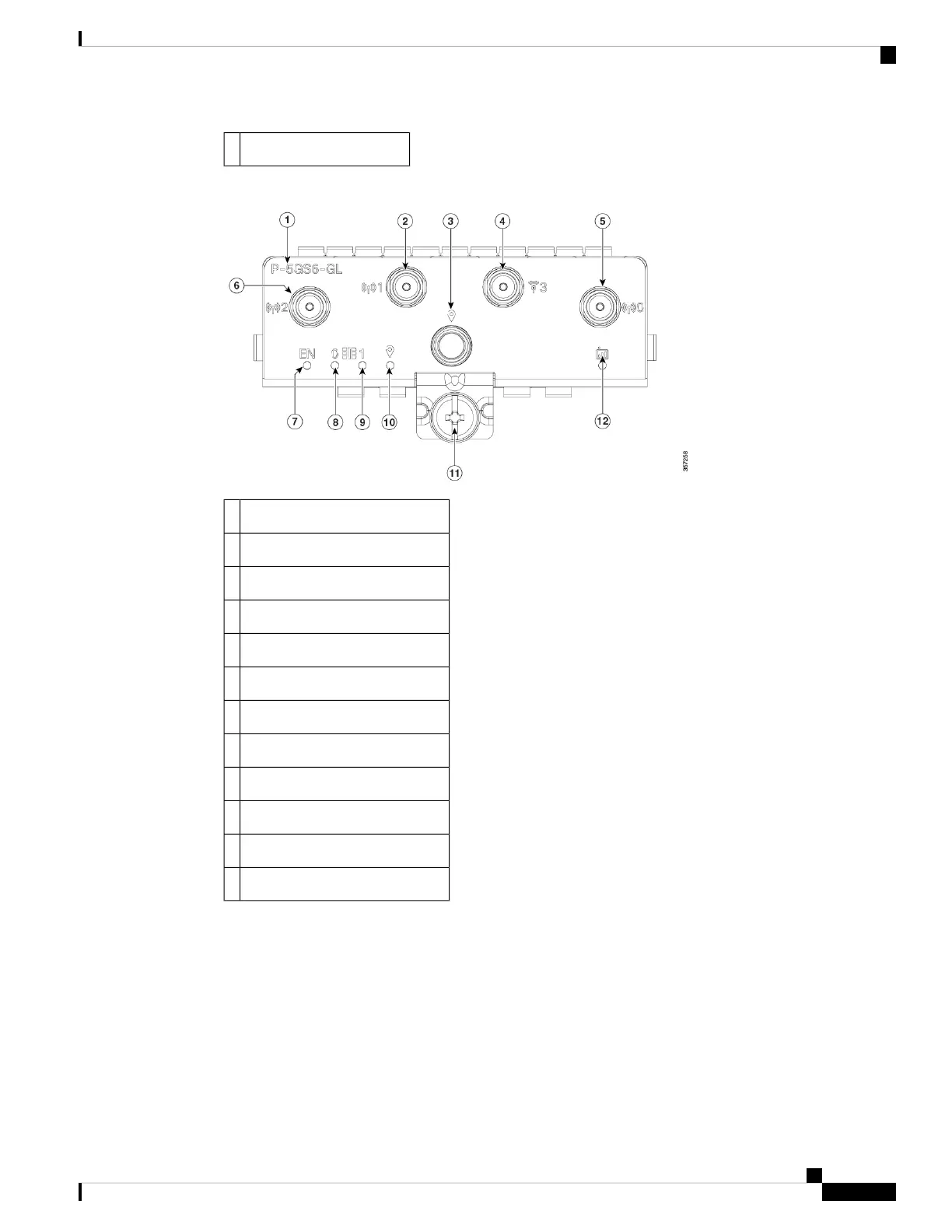

Figure 57: 5G Pluggable Interface Module - P-5GS6-GL
PID1
antenna 1 (SMA)2
GPS (SMA)3
Antenna 3 (SMA, reception only)4
Antenna 0 (SMA)5
Antenna 2 (SMA)6
Enable LED7
SIM 0 LED8
SIM 1 LED9
GPS LED10
M3.5 thumb-screw11
Service LED12
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
65
Install and Upgrade Internal Modules and Field Replaceable Units
Install a Pluggable Interface Module on a C1101-4P

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
