Cisco C1101-4P Hardware Installation Guide

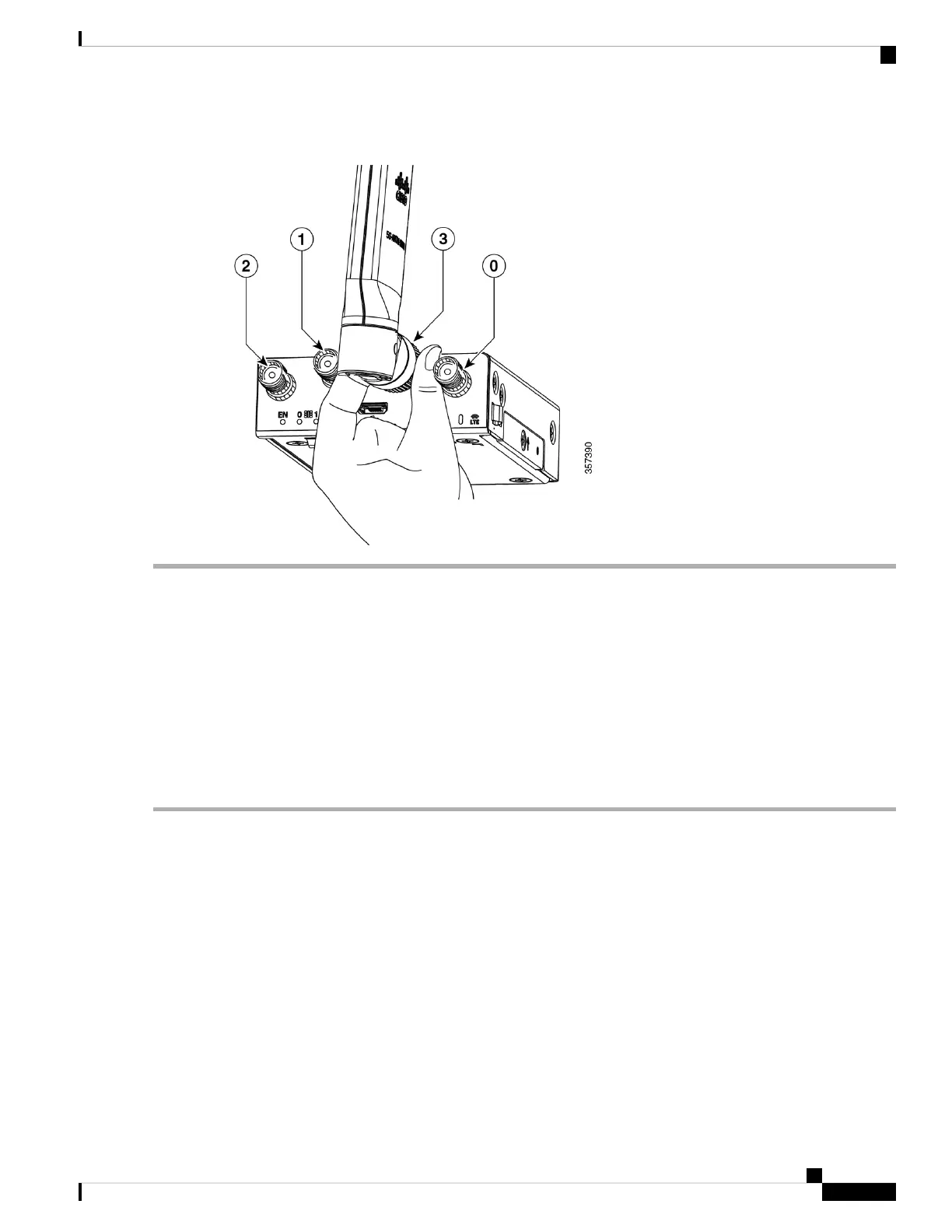

Figure 60: Attaching the Antennas
Step 1 Use your thumb and index finger to insert and tighten antenna 1 and antenna 3 in the middle antenna attachment slots as
indicated in the figure.
While installing the antennas, first install antenna 1 and antenna 3 (this instruction is for the two antenna
attachments present in the middle) and secure it completely. If you install antenna 2 and antenna 0 first (this
refers to the first and the last antenna attachments), there will be less space to insert your thumb and index
finger and therefore you may not be able to secure antenna 1 and 3.
Note
Step 2 Insert antenna 2 and antenna 0 in the first and last antenna attachment slots.
Step 3 After installing the antennas, adjust the antenna orientation by spacing out each of them equally until they are spread out.
This is important as it helps in getting higher RF performance.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
69
Install and Upgrade Internal Modules and Field Replaceable Units
Configuring a Pluggable Interface Module

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
