Cisco C1101-4P Hardware Installation Guide

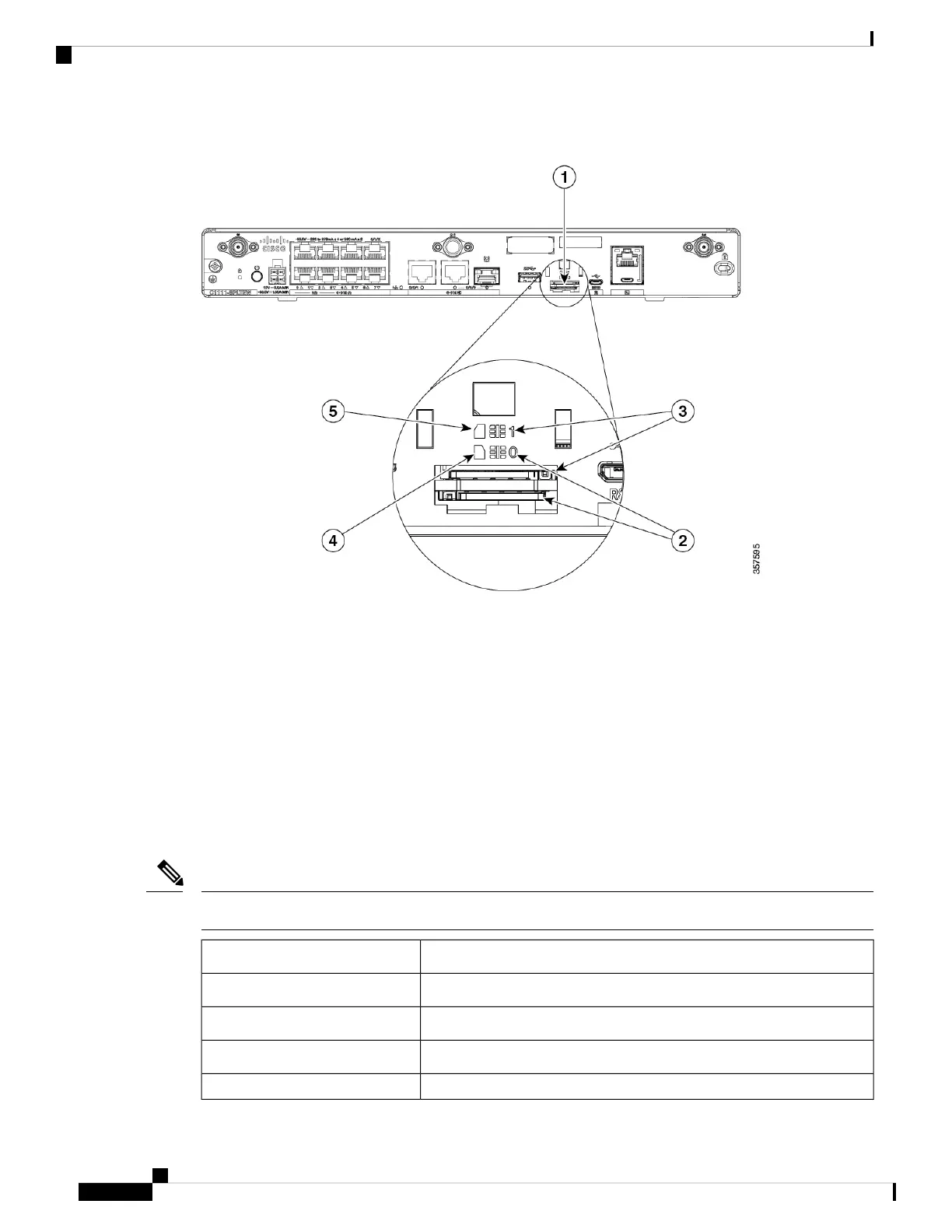

Figure 65: SIMs Installed
1. Use a flat screw driver to pry and remove the SIM-cover.
2. Install SIM 0 or SIM 1 in their respective slots. SIM location (0 or 1) is marked on both the unit panel
face (visible when the SIM-cover is removed). The SIM icons show the correct orientation required to
install the SIM into each respective connector (SIM connectors are a push-push type).
3. To install, insert the SIM card in the connector until you feel it click, then let go and the SIM is locked
in the connector.
4. To remove the SIM card, depress the SIM in the connector slot again until you feel the same click and let
it go, the SIM connector should eject part way out of the connector. The SIM card can then be grabbed
and removed.
5. When SIM cards are installed, replace the SIM-cover and secure using a flat screw-driver.
We recommend using industrial-grade SIM cards.
Note
Micro SIM slots1
SIM 0 slot2
SIM 1 slot3
Orientation notch (SIM 0)4
Orientation notch (SIM 1)5
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
84
Install and Upgrade Internal Modules and Field Replaceable Units
Installing a SIM Card on C111X, C1109-2PX, C1109-4P

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
