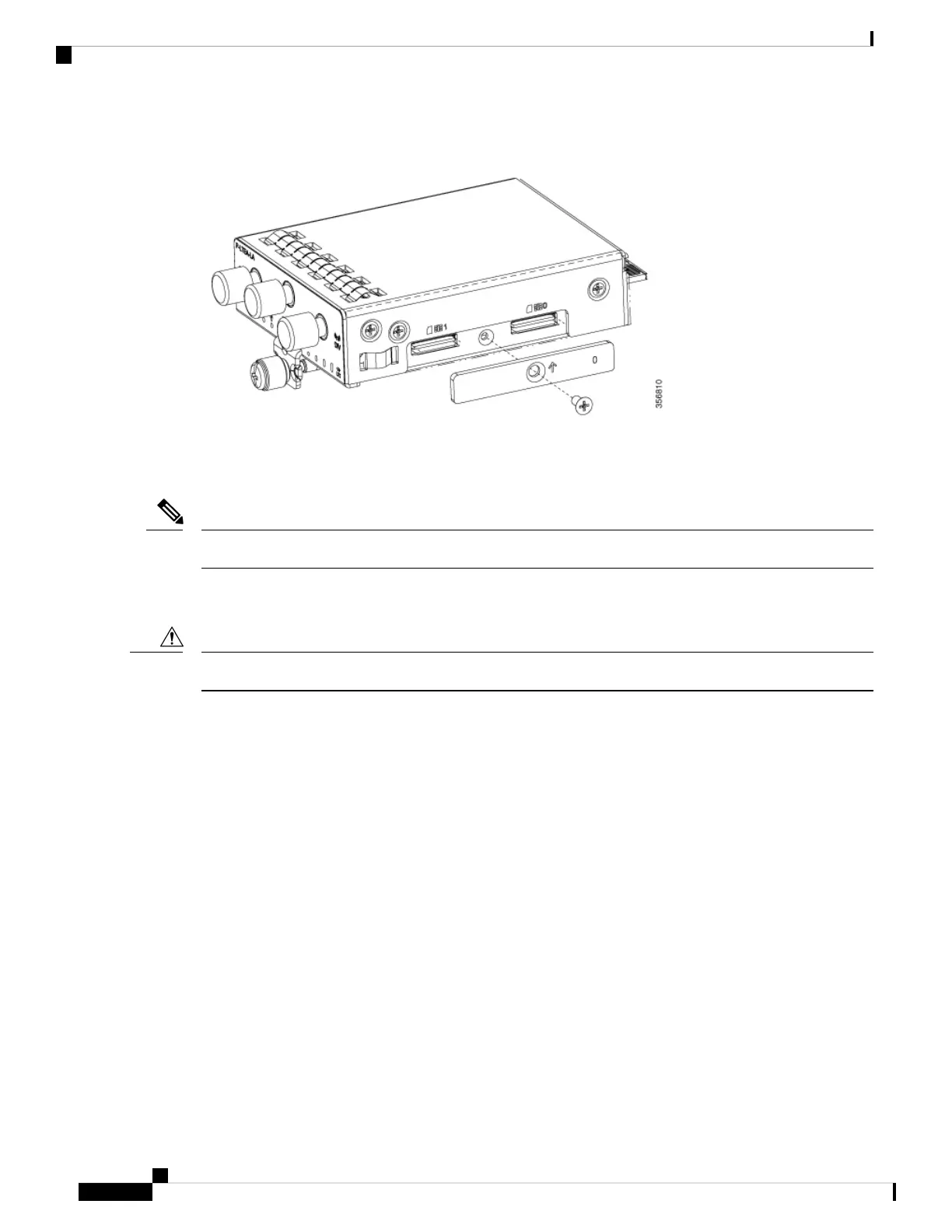

Figure 58: C1118-8PLTEAP with Micro SIM Slots
This section describes how to insert a Micro-SIM card into an LTE pluggable module.
To insert the Micro-SIM cards into an LTE Pluggable module:
Ensure to use the correct tool for removing the Micro-SIM door.
Note
1. Place the pluggable module on its bottom side, remove the SIM door screw, use a #1 Philips screw driver
for removing the screws, and then carefully remove the Micro-SIM cover from the pluggable module.
Do not touch any part of the exposed PCB circuit area when the Micro-SIM cover is removed.
Caution
2. In the figure, step 2 below shows the Micro-SIM slot 1 (label 1) and Micro-SIM slot 0 (label 2).
3. Push in each Micro-SIM card (label 3) into the slot until it clicks. Secure the Micro-SIM cover with a
screw, use a number 1 Philips screw driver to secure the screw on the Micro-SIM cover. The recommended
torque is 2.8 - 3.8 inch LBF.
4. You have now successfully inserted the Micro-SIM cards into the LTE pluggable module. The marking
on the Mirco-SIM door should align with Micro-SIM0 on the pluggable module with the arrow pointing
upward.
