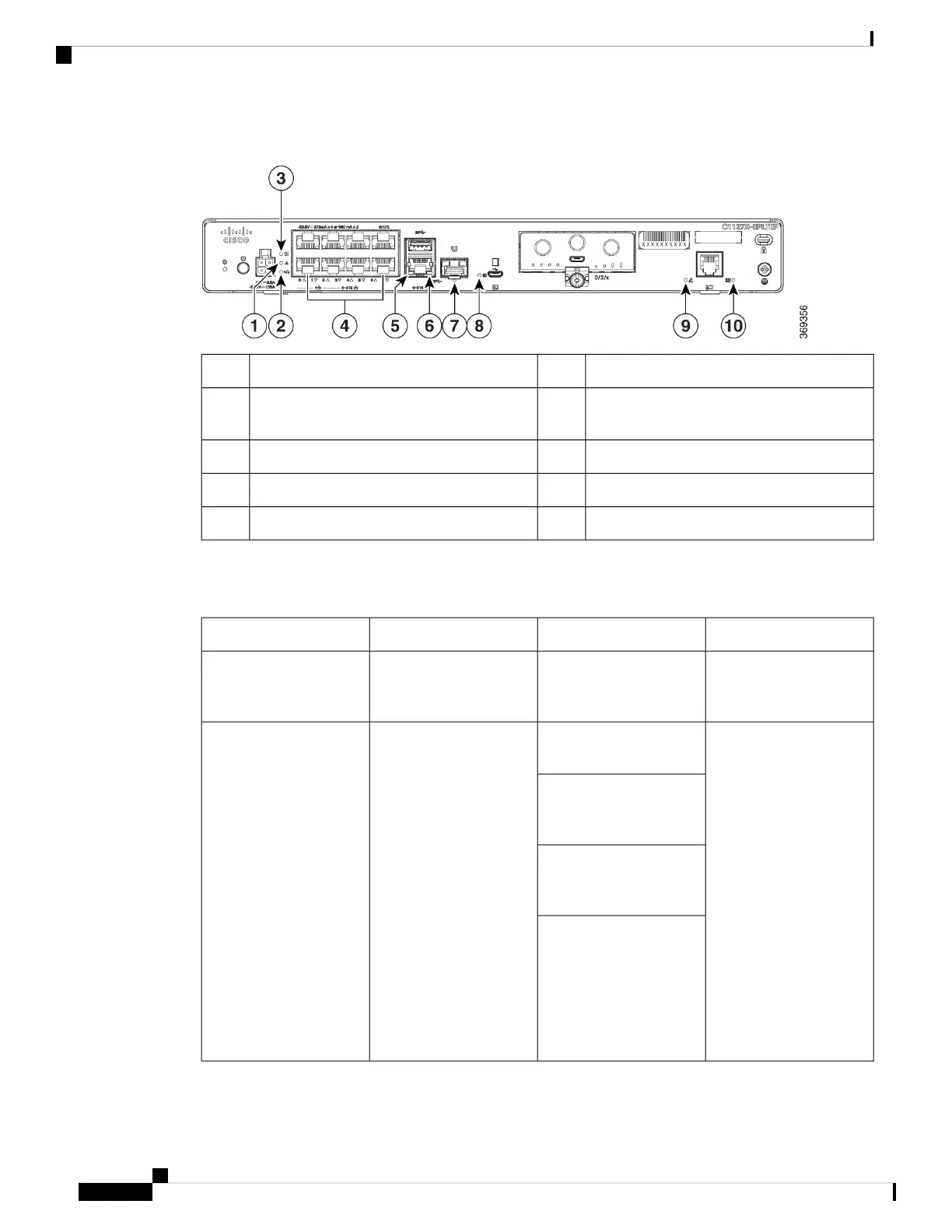

Figure 28: Cisco 1126(X)-8PLTEP/ C1127(X)-8PxLTEP LED Indicators
PoE LED2VPN1
Ethernet Switch Ports 0-7 (0, 2, 4, 6 at the top
and 1, 3, 5, 7 at the bottom)
4Status3
USB5 LED6GE 0/0/0 RJ45 LED5
Micro USB console LED8GE 0/0/0 SFP LED7
CD LED9
The following table summarizes the LED indicators that are located in the bezel or chassis of the C111x series.
Table 3: LED Indicators for C111x
Control SourceDescriptionLED ColorPort
Bezel sideIlluminated Cisco logo.
Indicates that router is
powered on.
BlueCisco logo
Bezel side. All models.Steady green - System is
operating normally.
Green and AmberStatus
(System status)
Off—System is not out of
reset mode or BIOS image
is not loadable.
Blinking Amber —
BIOS/ROMmon is
booting.
Steady Amber —
BIOS/ROMmon has
completed booting, and
the system is at the
ROMmon prompt or
booting the platform
software.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
16
Overview of Cisco 1000 Series Integrated Services Routers
LED Indicators

Cisco C1121-4PLTEP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11i, IEEE 802.11r, IEEE 802.1x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
3G	-
USB version	3.2 Gen 1 (3.1 Gen 1)
Combo SFP ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power over Ethernet (PoE) ports quantity	2
Security algorithms	3DES, 802.1x RADIUS, AES, DES
Flash memory	4096 MB
Internal memory type	DRAM
Product color	Silver
Output voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	66 W
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	226 mm
Width	322 mm
Height	41.9 mm
Weight	1560 g
