a. Tap open the micro-SIM protective cap on the USB dongle, gently insert the micro-SIM card with its edge oriented
as shown in the figure until the SIM is seated in the socket.
b. Tap close the micro-SIM protective cap on the USB to close the slot.
Step 2 To remove a micro-SIM card into a USB LTE dongle, do these steps:
a. Tap open the dust cover, and then gently push the micro-SIM card to eject the card from the SIM slot.
b. Tap close the micro-SIM protective cap on the USB to close the slot.
The antenna orientation may need to be adjusted for optimal performance.
Note
Perform the following steps to insert the USB LTE dongle with the SIM card into a horizontal slot on the rear
panel of a C110x series router:
1. Ensure the micro-SIM is installed in the LTE USB dongle.
2. Plug the LTE USB dongle into the magnet holder.
3. Attach the magnet holder into the USB port on the metal front panel of C1101-4P.

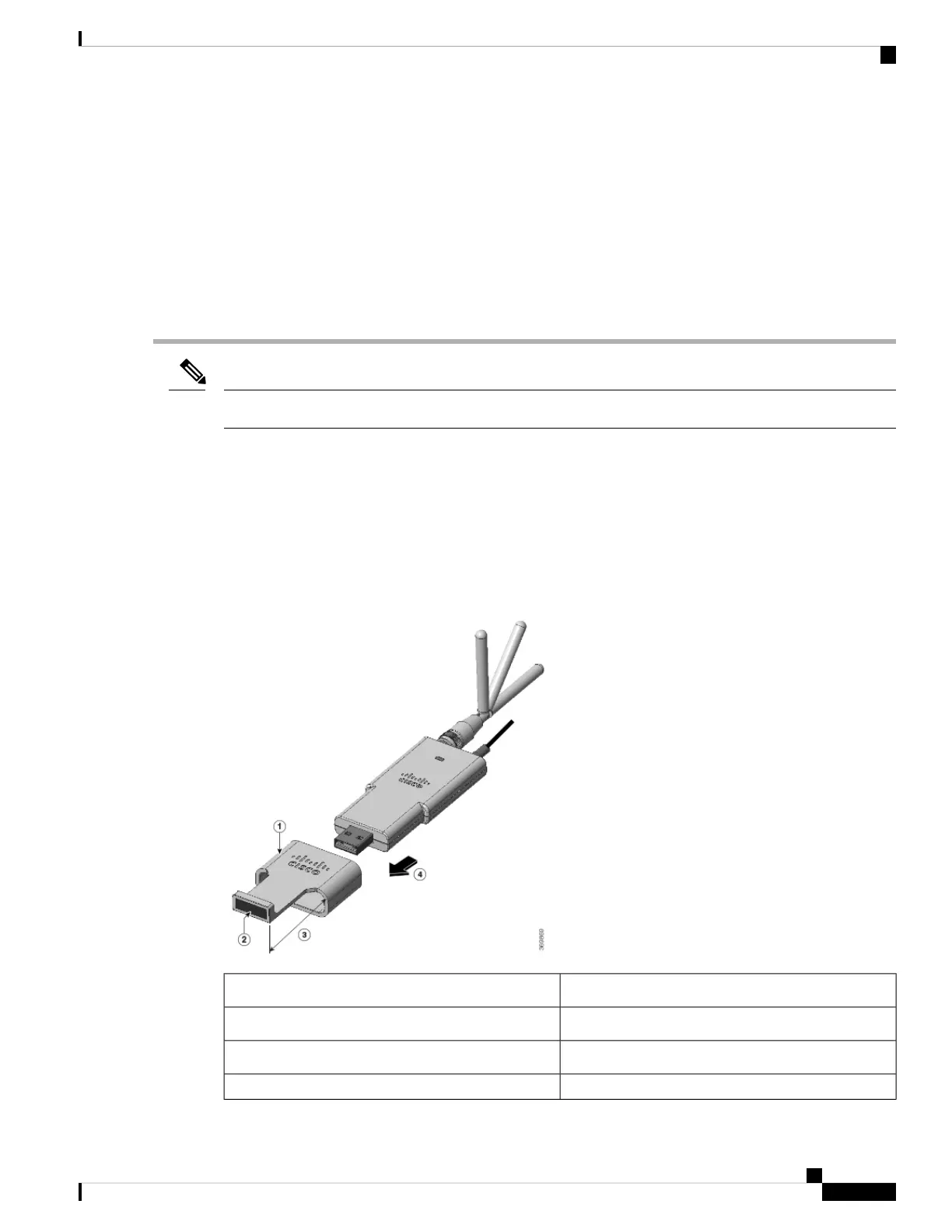

Figure 63: LTE USB 2.0 Dongle for C1101-4P
DescriptionNumber
Supporting ring1
Magnet2
Extend outward 30mm3
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
75
Install and Upgrade Internal Modules and Field Replaceable Units
Install a Micro-SIM Card into a USB LTE Dongle

Cisco C1121-4PLTEP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11i, IEEE 802.11r, IEEE 802.1x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
3G	-
USB version	3.2 Gen 1 (3.1 Gen 1)
Combo SFP ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power over Ethernet (PoE) ports quantity	2
Security algorithms	3DES, 802.1x RADIUS, AES, DES
Flash memory	4096 MB
Internal memory type	DRAM
Product color	Silver
Output voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	66 W
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	226 mm
Width	322 mm
Height	41.9 mm
Weight	1560 g
