Do not remove the rubber plugs from the SFP or SFP+ module port or the rubber caps from the fiber-optic
cable until you are ready to connect the cable. The plugs and caps protect the SFP module ports and cables
from contamination and ambient light. Before connecting to the SFP module, be sure that you understand the
port and cabling stipulations.
Caution
SUMMARY STEPS
1. Remove the rubber plugs from the module port and fiber-optic cable, and store them for future use.
2. Insert one end of the fiber-optic cable into the SFP or SFP+ module port.
3. Insert the other cable end into a fiber-optic receptacle on a target device.
4. Observe the port status LED.
DETAILED STEPS
Step 1 Remove the rubber plugs from the module port and fiber-optic cable, and store them for future use.
Step 2 Insert one end of the fiber-optic cable into the SFP or SFP+ module port.
Step 3 Insert the other cable end into a fiber-optic receptacle on a target device.

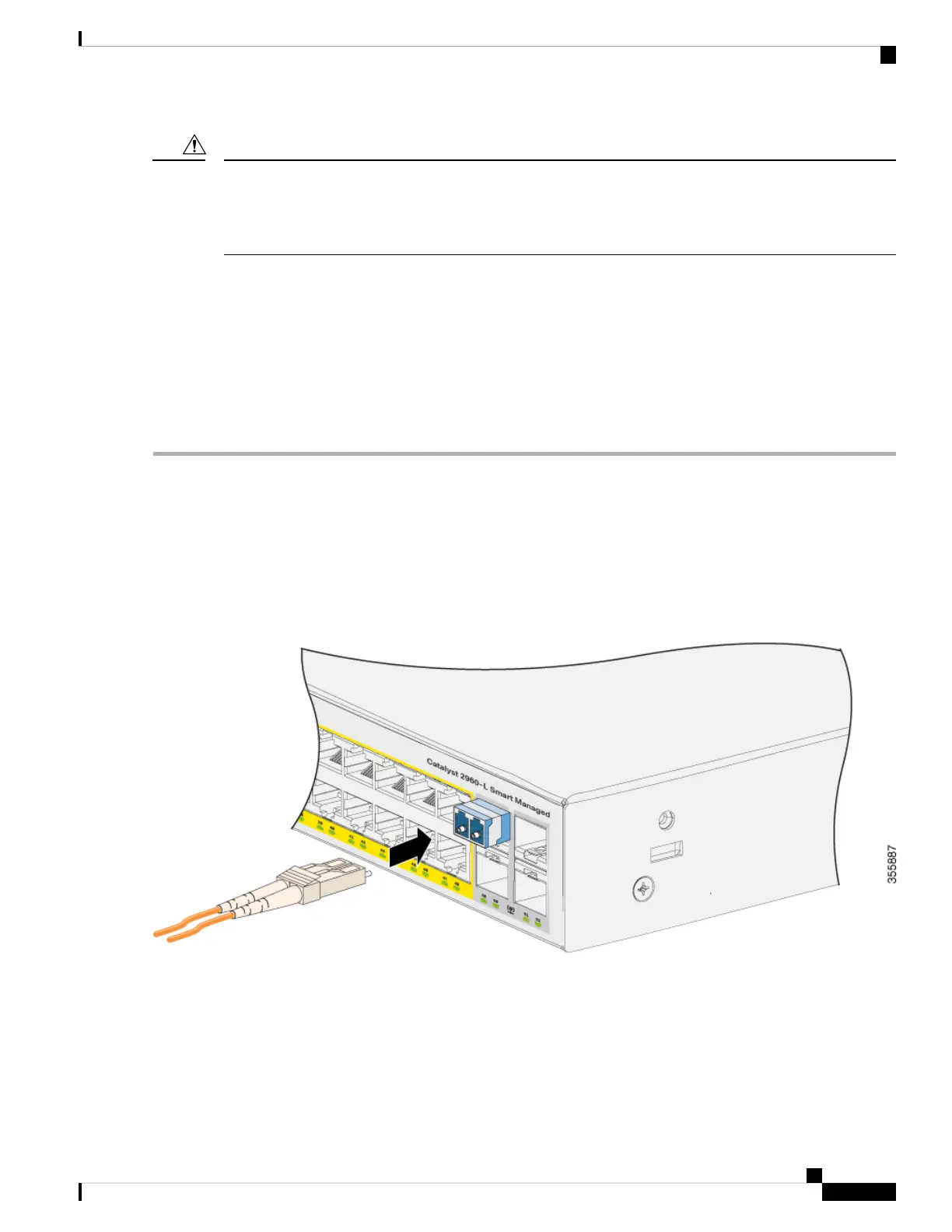

Figure 13: Connecting to a Fiber-Optic SFP Module Port
Step 4 Observe the port status LED.
The LED turns green when the switch and the target device have an established link.
The LED turns amber while the STP discovers the network topology and searches for loops. This process takes about 30
seconds, and then the port LED turns green.
Switch Installation
17
Switch Installation
Connecting to Fiber-Optic SFP or SFP+ Modules

Cisco Catalyst 2960-L Specifications

General

Subtype	Gigabit Ethernet
Power Device	Internal power supply
Stacking	Not supported
Model	Catalyst 2960-L
Uplink Interfaces	4 x Gigabit SFP
Power Supply	Internal
Device Type	Switch
Routing Protocol	Static IP routing
Features	VLAN support, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1w, IEEE 802.1s
Memory	256 MB Flash
Dimensions	1.73 in x 17.5 in x 9.4 in
Operating Temperature	32 to 113°F (0 to 45°C)
