Approximately 30 seconds after the switch powers on, it begins the power-on self-test (POST), which can take up to 5
minutes to complete.
During POST, the SYST (system) LED blinks green. When POST is complete, the SYST LED turns solid green. The
MAST (master) LED is green if the switch is acting as the stack master.
Before going to the next step, wait until POST is complete.
If the SYST LED does not turn solid green, or turns amber, the switch failed the POST. Contact your Cisco
representative or reseller.
Note
Step 5

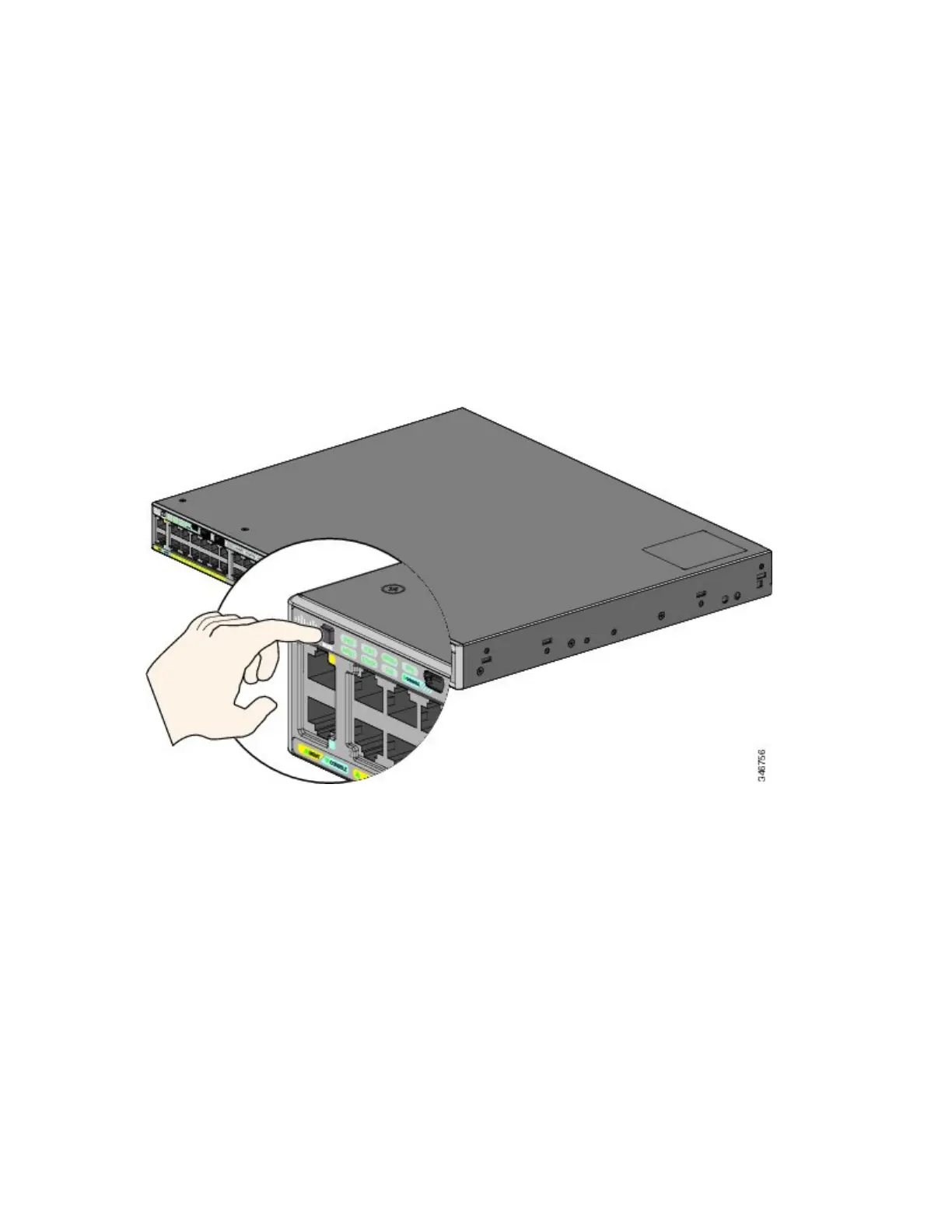

Press the Mode button when the SYST, MAST, and STAT LED turn green, hold the Mode button until all the LEDs next
to the Mode button turn green.
You might need to hold the button for more than 3 seconds.
The switch is now in Express Setup mode.
If the LEDs next to the Mode button blink when you press the button, release it. Blinking LEDs indicate that the
switch is already configured and cannot go into Express Setup mode. See Resetting the Switch, on page 21.
Note
Step 6
Connect a Category 5 or 6 Ethernet cable to a port:
Any 10/100/1000 or 10/100/1000 PoE+ Ethernet port
The RJ-45 Ethernet management port
Connect the other end of the cable to the Ethernet port on your PC.
Wait until the port LEDs on the switch and your PC or laptop are green or blinking green. Green LEDs indicate a successful
connection.
5

Other manuals for Cisco Catalyst 2960-X

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco Catalyst 2960-X and is the answer not in the manual?

Cisco Catalyst 2960-X Specifications

General IconGeneral
Console portRJ-45
USB 2.0 ports quantity2
SFP module slots quantity4
Installed SFP modules quantity-
Gigabit Ethernet (copper) ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power sourceAC
Input current5 A
AC input voltage100 - 240 V
Power consumption (typical)60.9 W
Number of power supply units1
Redundant power supply (RPS) supportYes
Operating altitude0 - 3000 m
Non-operating altitude0 - 4000 m
Storage temperature (T-T)-25 - 70 °C
Operating temperature (T-T)-5 - 40 °C
Operating relative humidity (H-H)10 - 95 %
Switching protocolsUDP, TCP, RADIUS/TACACS+
Number of VLANs1023
Networking standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Throughput107.1 Mpps
Jumbo frames9216
Number of queues8
MAC address table16000 entries
Number of static routes1000
DHCP featuresDHCP server
AuthenticationMAC-based authentication, Port-based authentication
Security algorithms802.1x RADIUS, SNMP, SSH
Access Control List (ACL) rules3
Switch typeManaged
Switch layerL2/L3
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Form factor1U
Product colorBlack
Total Power over Ethernet (PoE) budget370 W
Power over Ethernet (PoE) ports quantity24
Power over Ethernet plus (PoE+) ports quantity12
Memory typeDRAM
Noise level39 dB
Flash memory128 MB
Internal memory512 MB
Processor frequency600 MHz
Mean time between failures (MTBF)276870 h
Weight and Dimensions IconWeight and Dimensions
Depth368 mm
Width445 mm
Height45 mm
Weight5800 g
