• Power adapter bracket (C9K-ADPT-BRKT-12T)
• One 8-18 Phillips pan-head screws
• Two M3x6mm pan head screw
• Phillips screwdriver
Procedure
Step 1 Attach the power adapter bracket to the rear side of the mounting tray or the DIN rail mount using the two
M3 x 6 mm Phillips pan head screws provided.

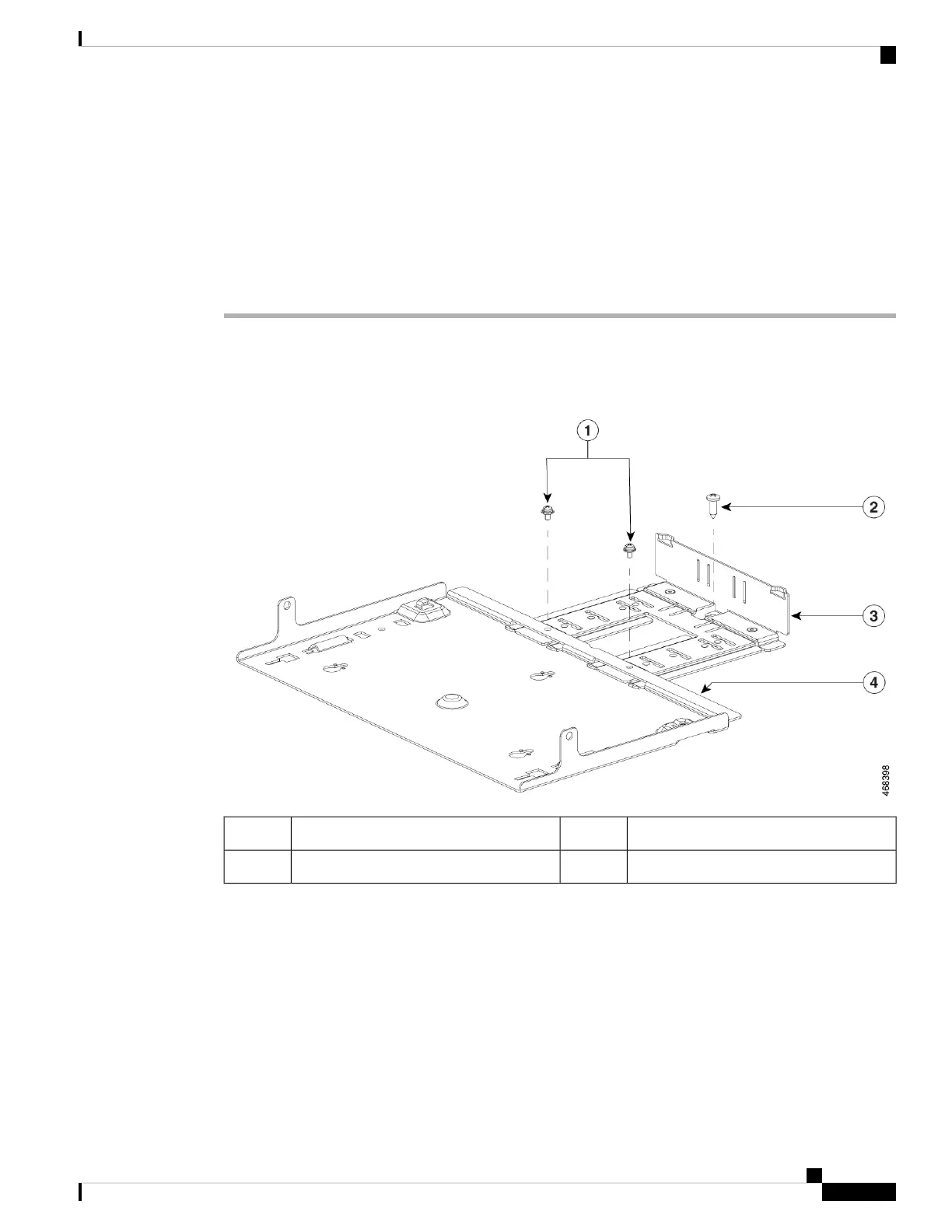

Figure 21: Attaching the Power Adapter Bracket
Adapter bracket3M3 x 6 mm Phillips pan head screws1
Mounting tray48-18 x 0.5" Phillips pan head tapping screw2
The power adapter bracket cannot be used without a mounting tray or a DIN rail mount.
Note
Step 2 Thread the velcro straps through the slots on the adapter bracket that corresponds to the size of the adapter.
You can thread the strap based on the size of the power adapter. The following illustration displays some
examples.
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
39
Installing a Compact Switch
Attaching the Adapter Bracket to the Switch (Optional)

Cisco Catalyst 9200CX Compact Series Specifications

General

Model	Cisco Catalyst 9200CX Compact Series
Software	Cisco IOS XE
Power over Ethernet (PoE)	No
Stacking	Not supported
Weight	5.0 lb (2.3 kg)
Form Factor	Compact
Management	WebUI, CLI, SNMP, Cisco DNA Center
Power Supply	Internal power supply
Memory	4 GB DRAM
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	5% to 90% noncondensing
Ports	8, 12, or 24 10/100/1000BASE-T ports
Dimensions	1.73 x 10.5 x 9.45 in. (4.4 x 26.7 x 24 cm)
