Cisco Catalyst 9407R User Manual

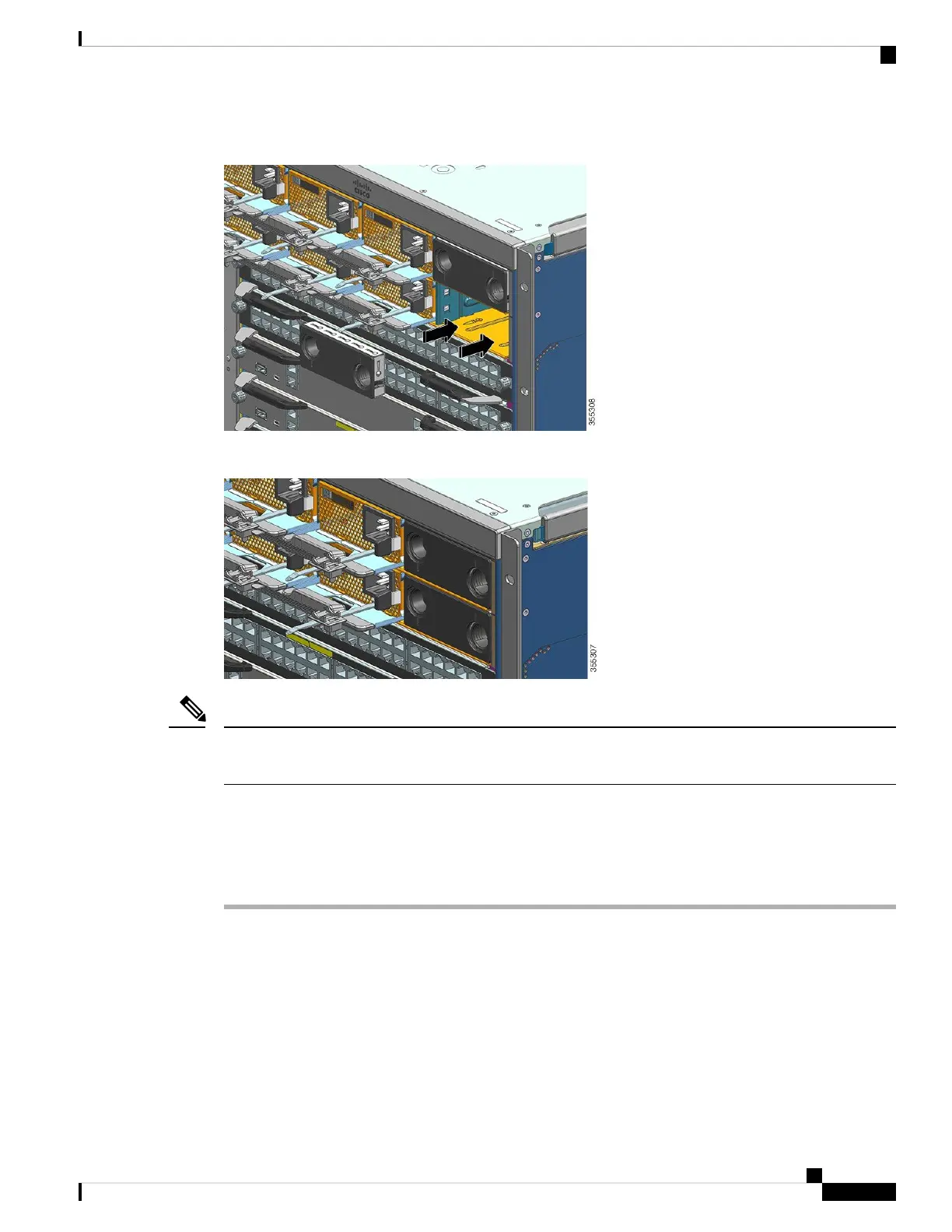

Figure 35: Installing a Power Supply Blank Cover
Figure 36: Power Supply Blank Cover Installed
Power supply blank covers can be placed in any slot when fewer than eight power supplies are installed in a
chassis.
Note
Verifying the Power Supply Module Installation
Procedure
Step 1 Verify the power supply operation by checking the power supply’s front-panel LEDs. You should see the
following:
• The INPUT LED is green.
• The OUTPUT LED is green if it is an active module and blinking green if it is a redundant module.
• The FAIL LED is off.
Cisco Catalyst 9400 Series Switches Hardware Installation Guide
127
Removing and Replacing FRUs
Verifying the Power Supply Module Installation

Cisco Catalyst 9407R Specifications

General

Model	Cisco Catalyst 9407R
Category	Switch
Chassis Slots	7
Rack Units	10 RU
Form Factor	Rack-mountable
Slots	7
Maximum Number of Line Cards	5
Operating System	Cisco IOS XE
Product Type	Modular Switch
Power Supply Options	AC and DC
Redundancy	Yes
