Cisco Catalyst C9300-48T User Manual

APPENDIX B
Connector and Cable Specifications
• Connector Specifications, on page 121
• Console Port, on page 123
• Cables and Adapters, on page 123

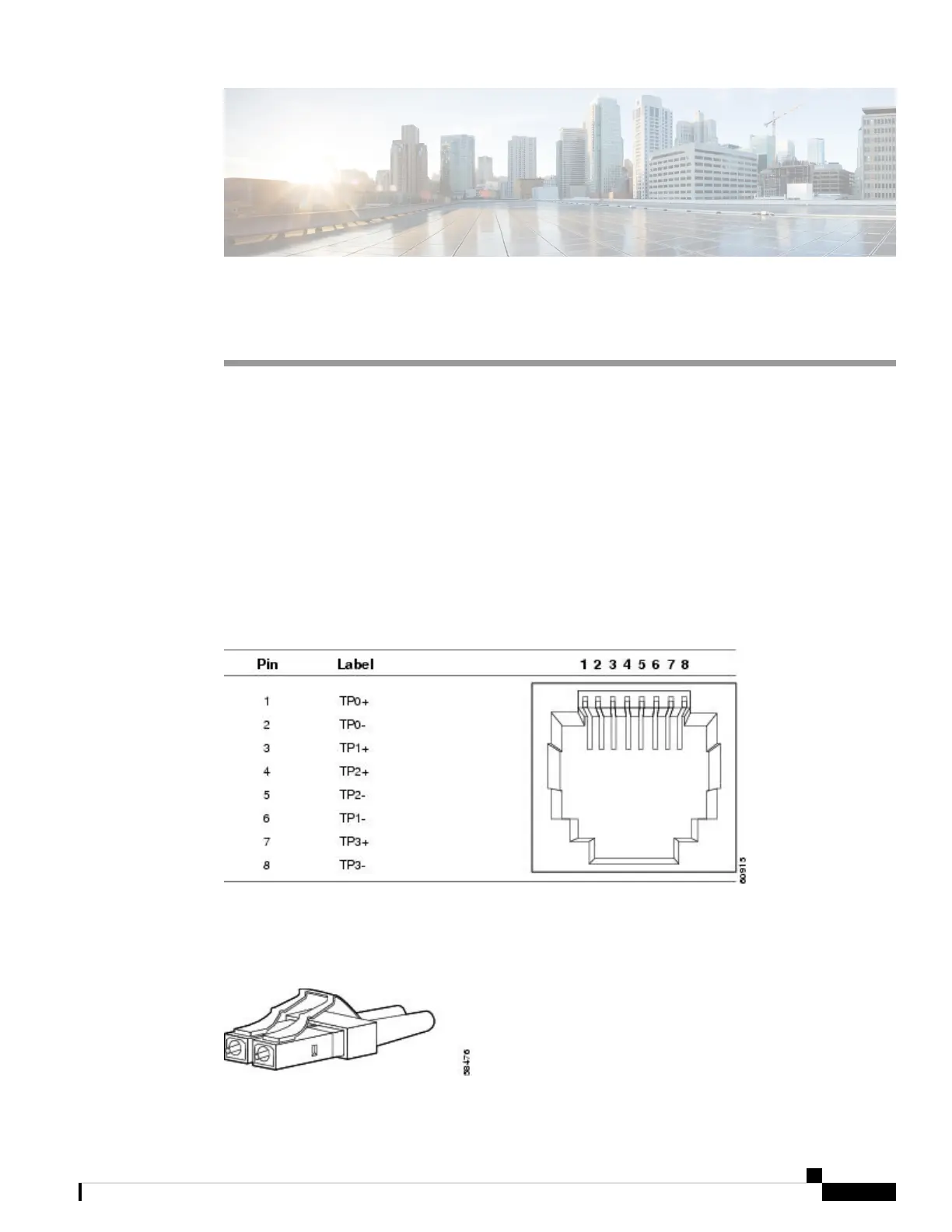

Connector Specifications
10/100/1000 Ports (Including PoE)
All 10/100/1000 ports use standard RJ-45 connectors and Ethernet pinouts.
Figure 67: 10/100/1000 Port Pinouts
Module Connectors
Figure 68: Duplex LC Cable Connector
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
121

Cisco Catalyst C9300-48T Specifications

General

Total Ports	48
Default AC Power Supply	715W AC
Switching Capacity	176 Gbps
DRAM	8 GB
Flash Memory	16 GB
Rack Units (RU)	1 RU
Stacking Bandwidth	480 Gbps
Weight	7.25 kg
Power Supply Options	1100W AC
Operating Temperature	0 to 45°C
Operating Humidity	5 to 90% relative humidity
Uplink Ports	4 x 1G Network Module uplink ports (Optional)
