LengthCable TypePart Number
0.3 meterStackPower CableCAB-SPWR-30CM
1.5 meterStackPower CableCAB-SPWR-150CM

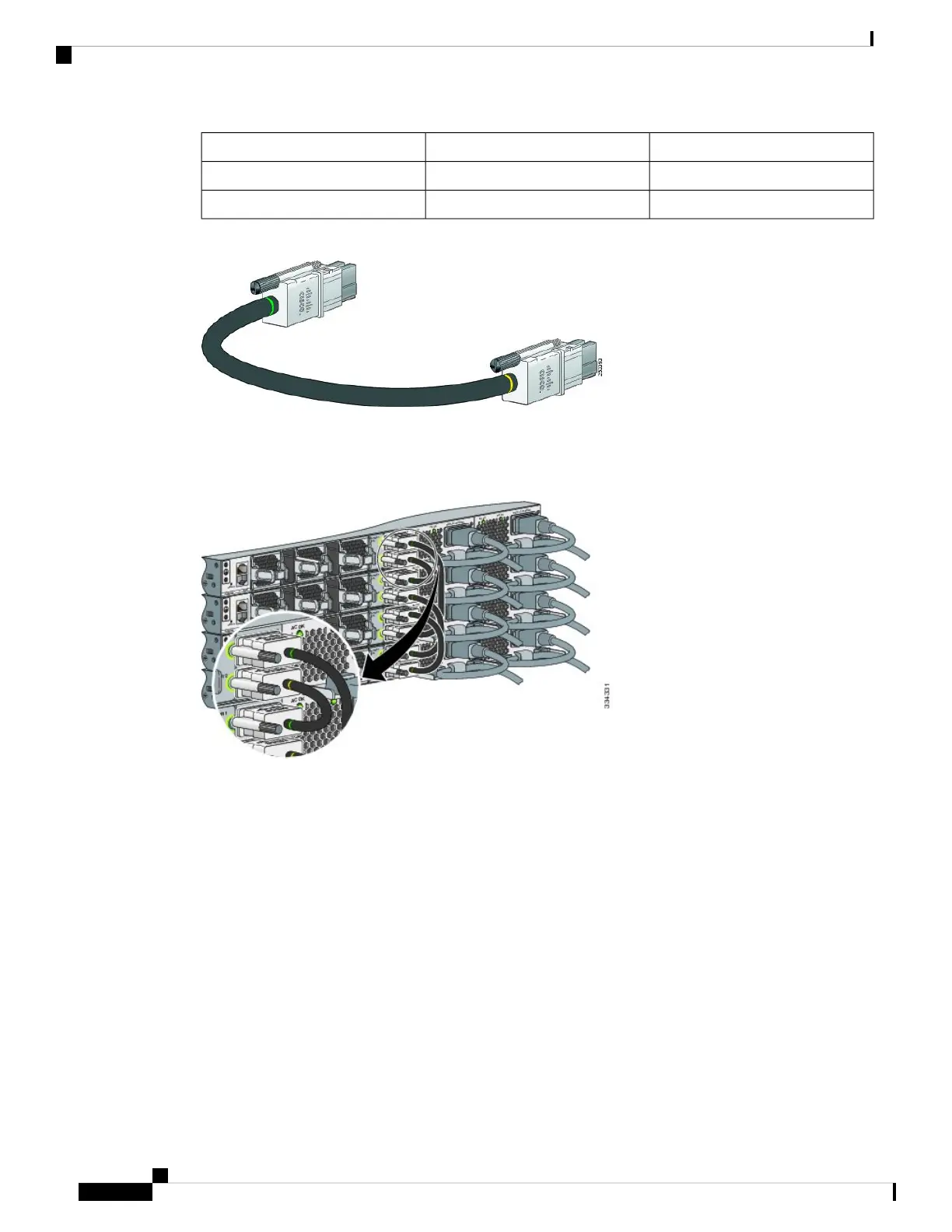

Figure 15: StackPower Cable for Use with Cisco Catalyst 9300 Series Switches
This figure shows a ring configuration using both of the supplied 0.3-meter StackPower cables and one
1.5-meter cable. In the examples that follow, the switches are stacked in a vertical rack or on a table.
Figure 16: StackPower Ring Topology
This figure shows 8 switches connected in a star topology.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
30
Switch Installation
StackPower Cabling Configurations
