Cisco Catalyst C9300-48T User Manual

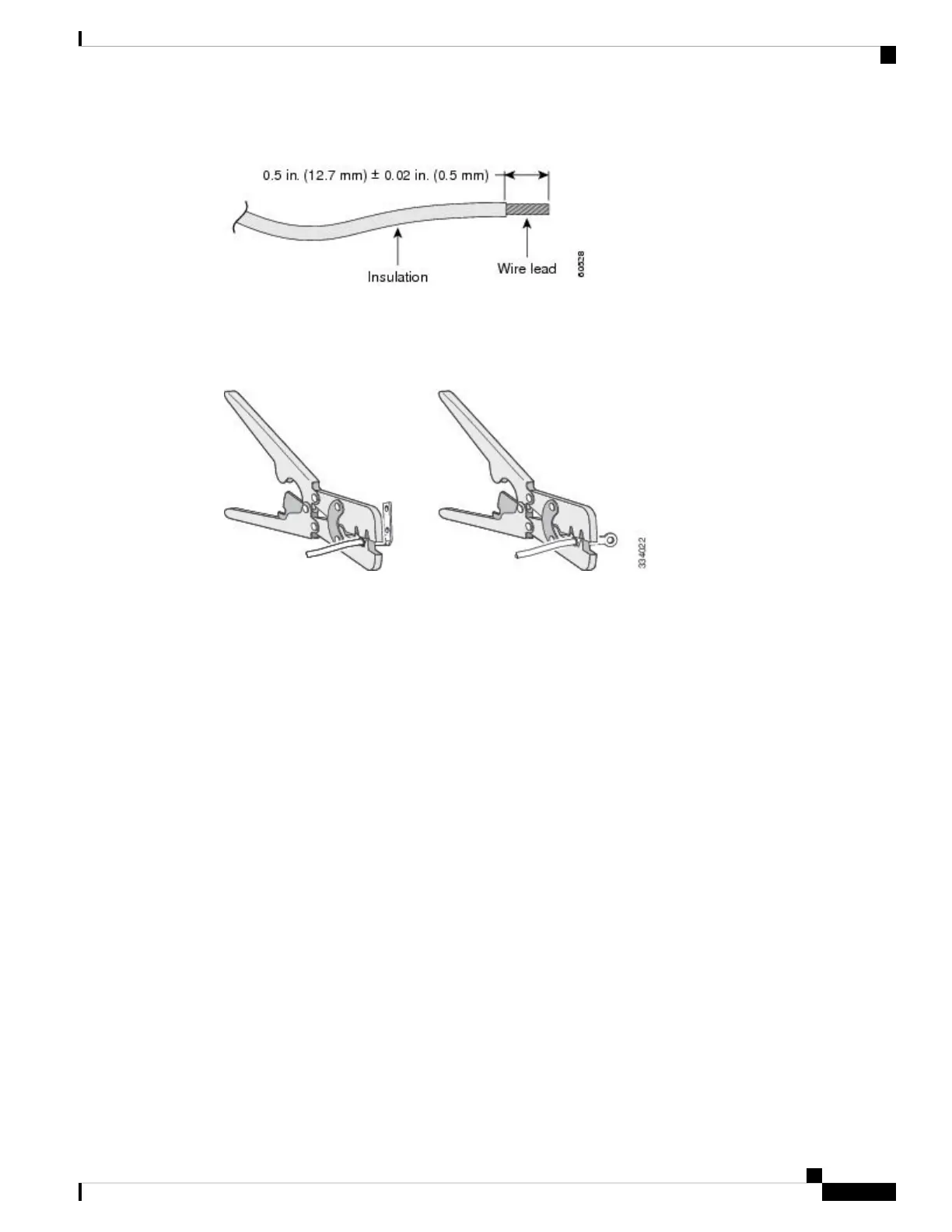

Figure 52: Stripping the Ground Wire
Step 3 Slide the open end of the ground lug over the exposed area of the wire.
Step 4 Using a Panduit crimping tool, crimp the ground lug to the wire.
Figure 53: Crimping the Ground Lug
Step 5 Use the ground screw to attach the single-hole ground lug to the switch rear panel. Use two ground screws to
attach the dual-hole ground lug to the switch rear panel.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
91
Installing a Power Supply
Grounding the Switch

Cisco Catalyst C9300-48T Specifications

General

Total Ports	48
Default AC Power Supply	715W AC
Switching Capacity	176 Gbps
DRAM	8 GB
Flash Memory	16 GB
Rack Units (RU)	1 RU
Stacking Bandwidth	480 Gbps
Weight	7.25 kg
Power Supply Options	1100W AC
Operating Temperature	0 to 45°C
Operating Humidity	5 to 90% relative humidity
Uplink Ports	4 x 1G Network Module uplink ports (Optional)
