Attaching the Rack-Mount Brackets
Procedure
Use four Phillips flat-head screws to attach the long side of the bracket to each side of the switch for the front-
or rear-mounting positions.

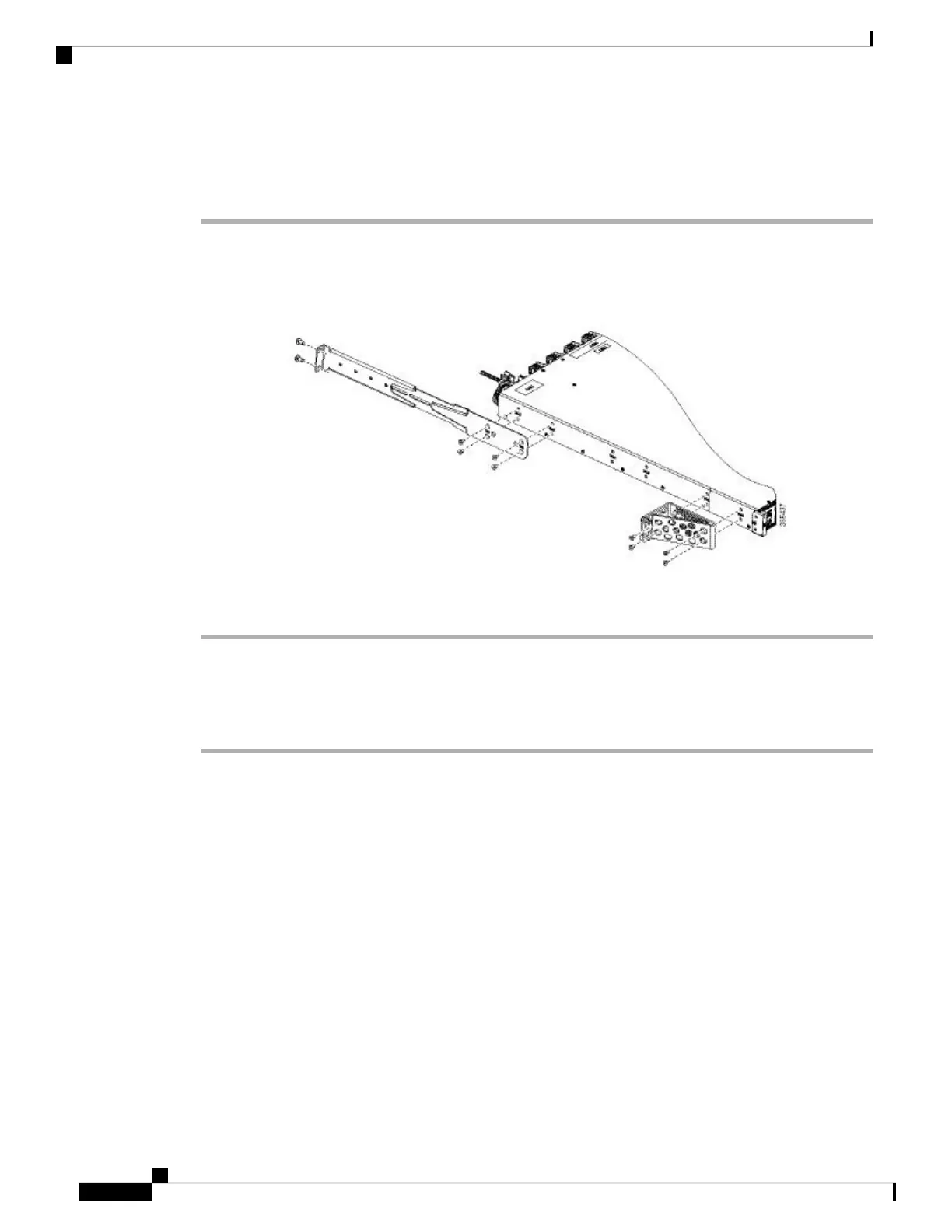

Figure 21: Attaching Brackets for 19-inch Racks
Mounting the Switch a Rack
Procedure
Step 1 Use the four supplied Phillips machine screws to attach the brackets to the rack.
Step 2 Use the black Phillips machine screw to attach the cable guide to the left or right bracket.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
34
Switch Installation
Attaching the Rack-Mount Brackets
