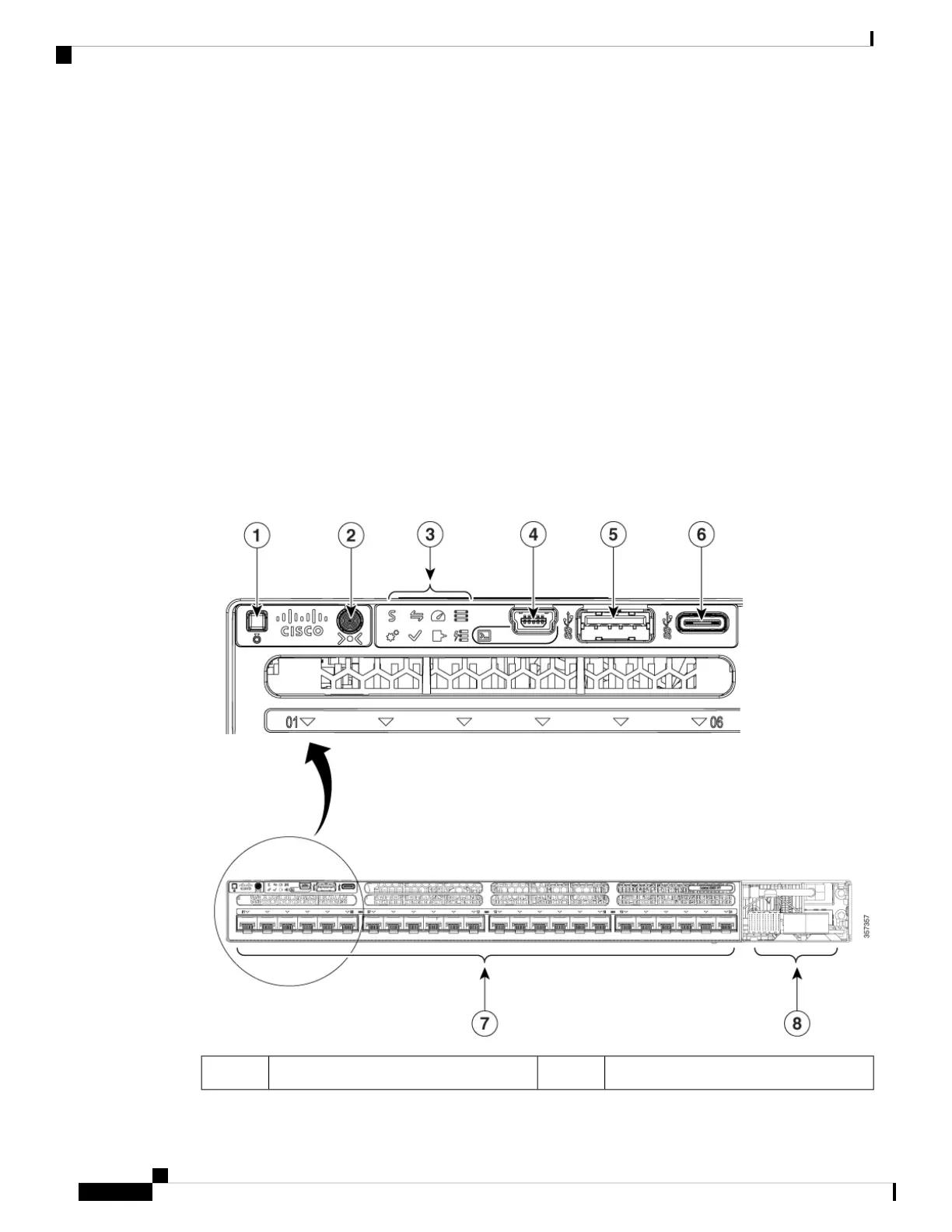

DescriptionColor
PoE mode is selected, and the port LEDs show the PoE mode status.Green
PoE mode is not selected. At least one of the 10/100/1000 ports has been denied
power, or at least one of the 10/100/1000 ports has a PoE mode fault.
Blinking amber
XPS LED
Table 7: XPS LED
DescriptionColor
XPS cable is not installed.
Switch is in StackPower mode.
Off
XPS is connected and ready to provide back-up power.Green
XPS is connected but is unavailable because it is providing power to another device
(redundancy has been allocated to a neighboring device).
Blinking green
The XPS is in standby mode or in a fault condition. See the XPS 2200
documentation for information about the standby mode and fault conditions.
Amber
The power supply in a switch has failed, and the XPS is providing power to that
switch (redundancy has been allocated to this device).
Blinking amber
For information about the XPS 2200, see the Cisco eXpandable Power System 2200 Hardware Installation
Guide on Cisco.com:
http://www.cisco.com/go/xps2200_hw
S-PWR LED
Table 8: S-PWR LED
DescriptionColor
StackPower cable is not connected, or the switch is in standalone mode.Off
Each StackPower port is connected to another switch.Green
This appears on the switch in a StackPower ring configuration that detects an open
ring or has only one StackPower cable connected.
Blinking green
There is a fault: load shedding is occurring, a StackPower cable is defective, or an
administrative action is required. See the switch software configuration guide for
information about configuring StackPower.
Amber
The StackPower budget is not sufficient to meet current power demands.Blinking amber
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
10
Product Overview
