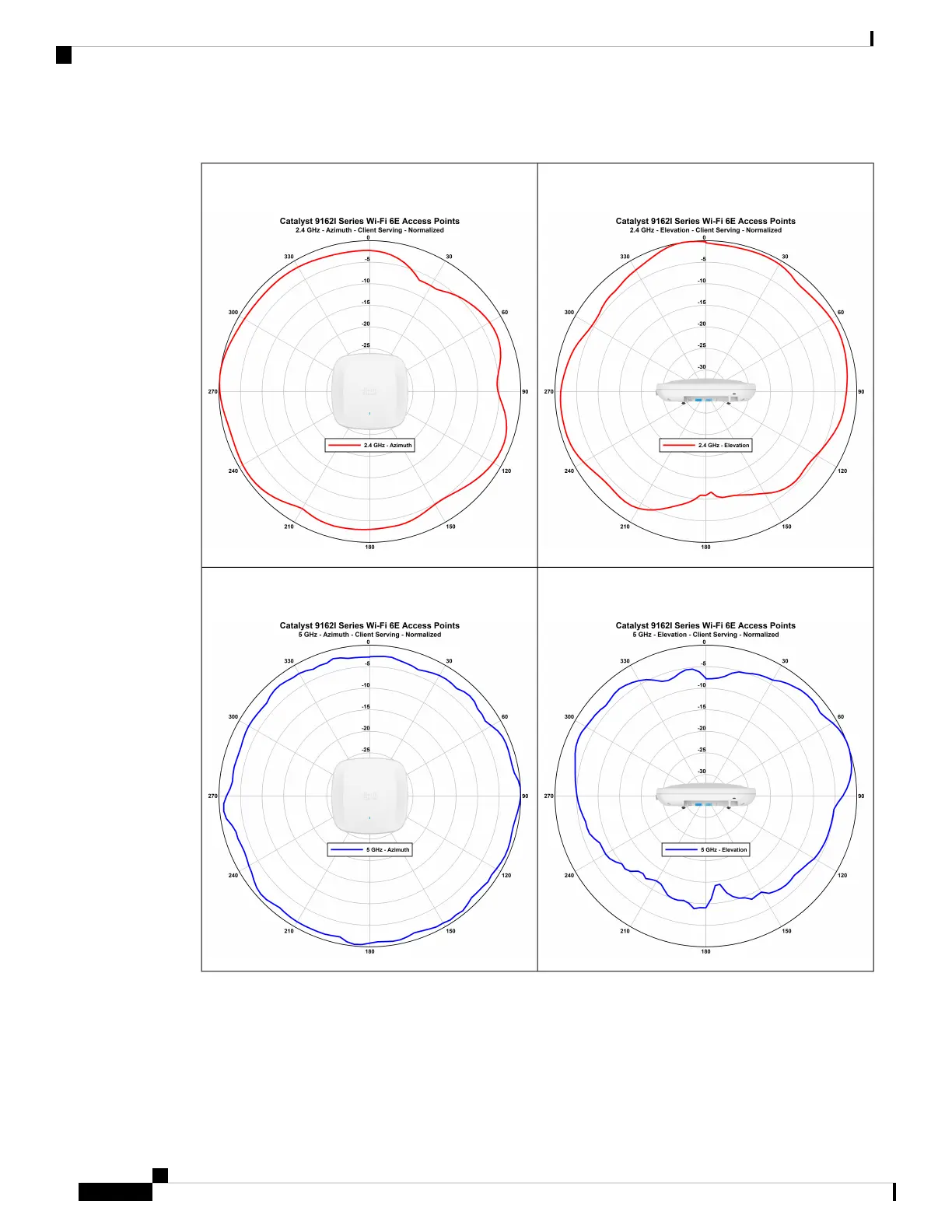

Table 3: Cisco Catalyst CW9162I AP Radiation Patterns
Figure 4: CW9162I - Client-Serving Normalized Radiation Pattern
(2.4-GHz Elevation)
Figure 3: CW9162I - Client-Serving Normalized Radiation Pattern
(2.4-GHz Azimuth)
Figure 6: CW9162I - Client-Serving Normalized Radiation Pattern
(5-GHz Elevation)
Figure 5: CW9162I - Client-Serving Normalized Radiation Pattern
(5-GHz Azimuth)
Cisco Catalyst Wireless 9162I Series Wi-Fi 6E Access Point Hardware Installation Guide
10
Hardware Features
CW9162I (Internal Antenna) Radiation Patterns
