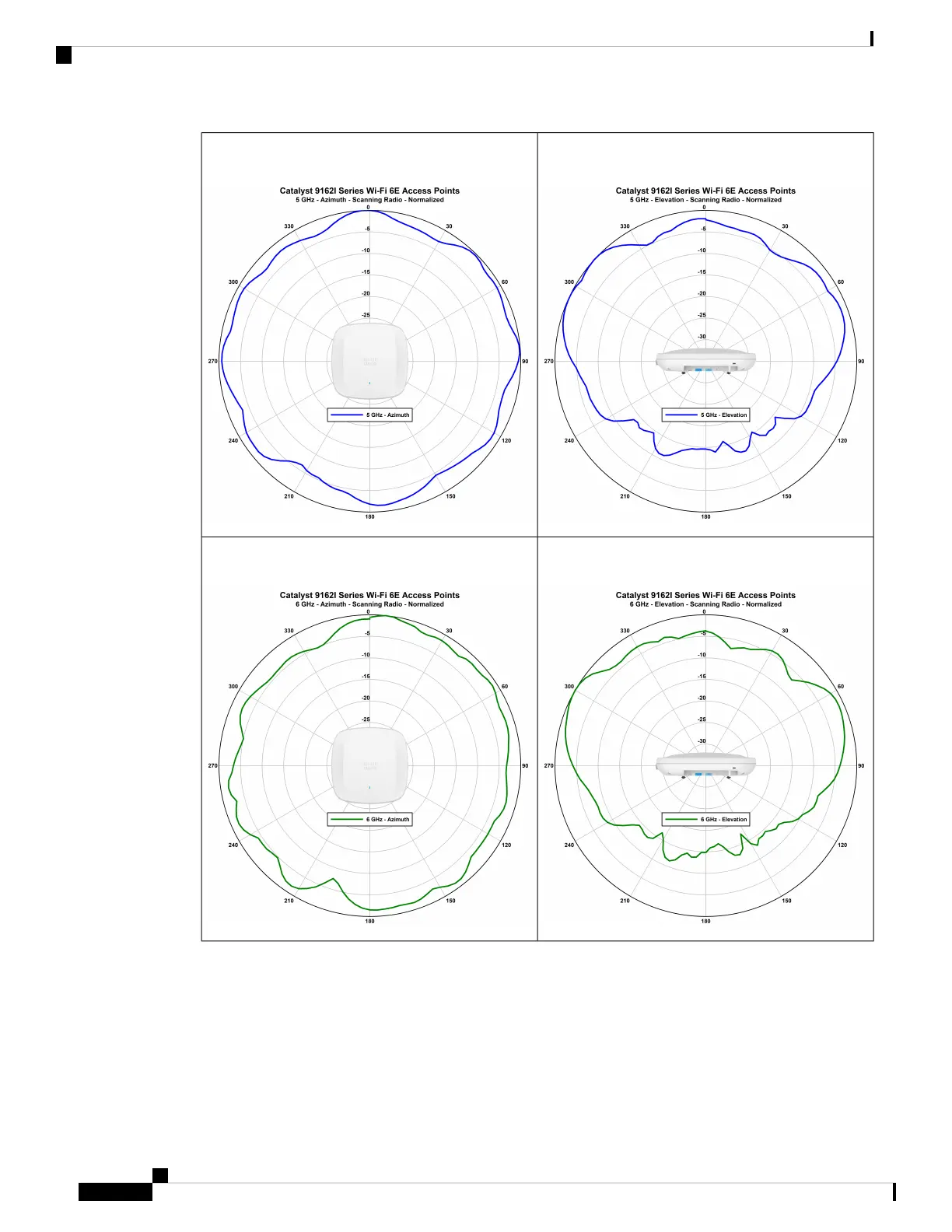

Figure 12: CW9162I - Scanning Radio-Normalized Radiation Pattern
(5-GHz Elevation)
Figure 11: CW9162I - Scanning Radio-Normalized Radiation Pattern
(5-GHz Azimuth)
Figure 14: CW9162I - Scanning Radio-Normalized Radiation Pattern
(6-GHz Elevation)
Figure 13: CW9162I - Scanning Radio-Normalized Radiation Pattern
(6-GHz Azimuth)
Cisco Catalyst Wireless 9162I Series Wi-Fi 6E Access Point Hardware Installation Guide
12
Hardware Features
CW9162I (Internal Antenna) Radiation Patterns
