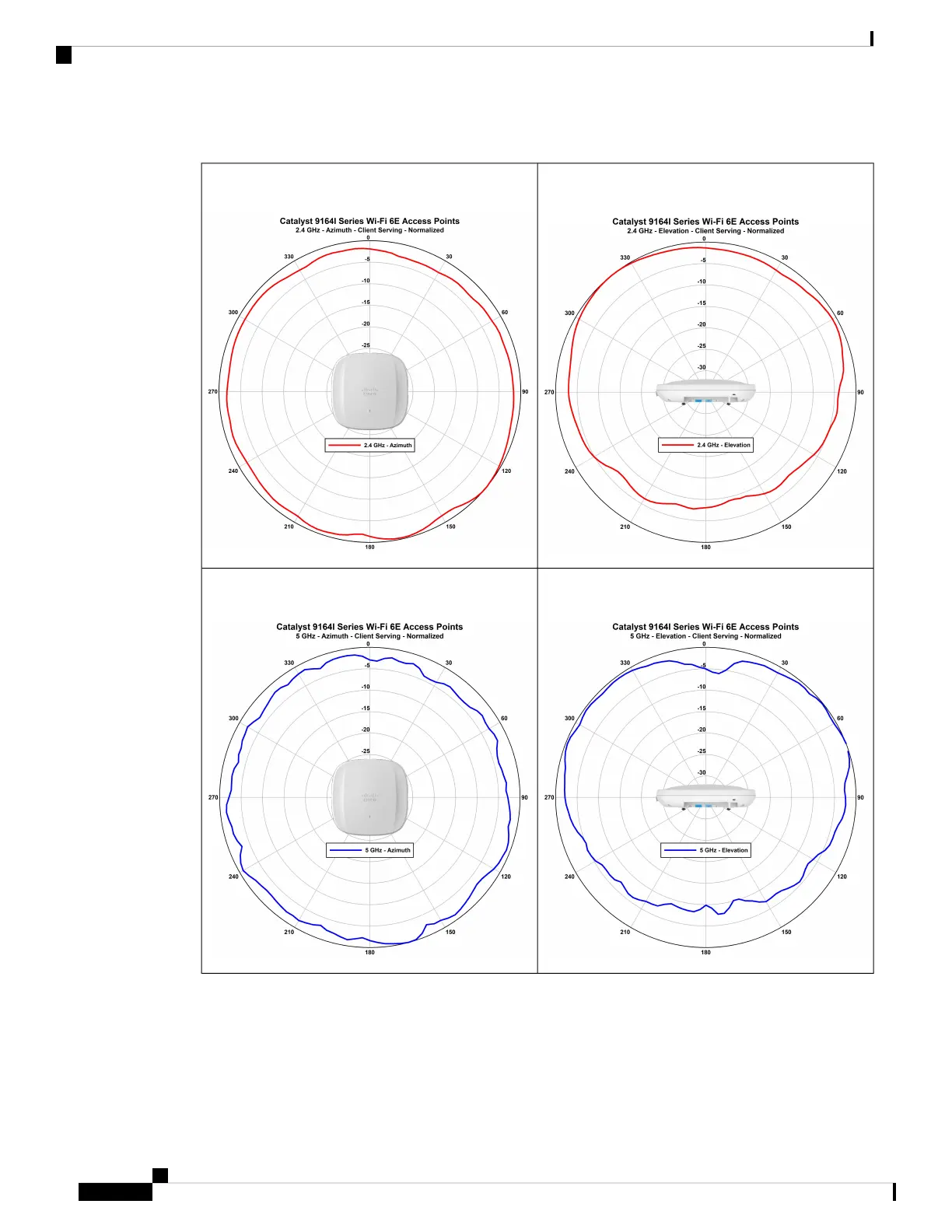

Table 3: Cisco Catalyst 9164I AP Radiataion Patterns
Figure 4: CW9164I - Client-Serving Normalized Radiation Pattern
(2.4-GHz Elevation)
Figure 3: CW9164I - Client-Serving Normalized Radiation Pattern
(2.4-GHz Azimuth)
Figure 6: CW9164I - Client-Serving Normalized Radiation Pattern
(5-GHz Elevation)
Figure 5: CW9164I - Client-Serving Normalized Radiation Pattern
(5-GHz Azimuth)
