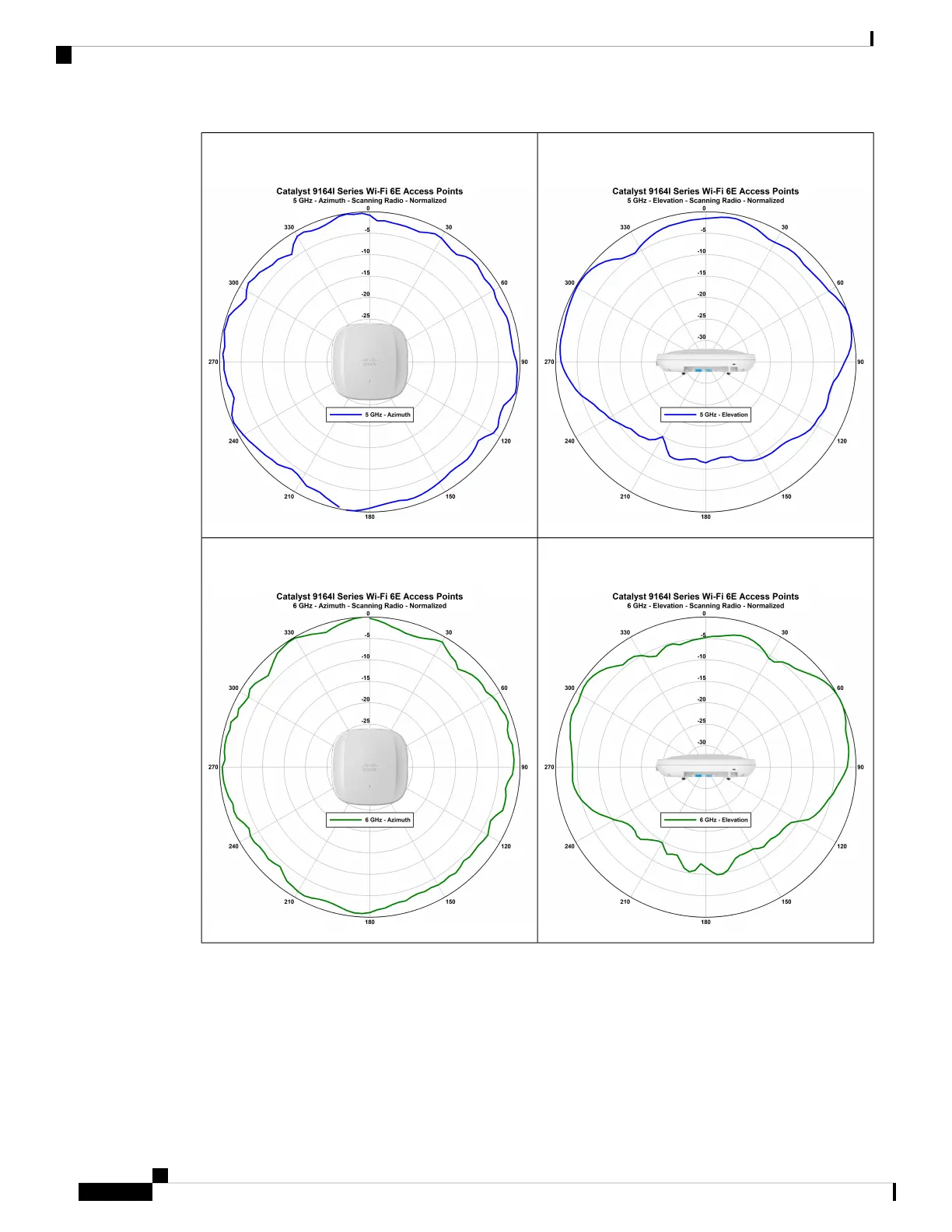

Figure 12: CW9164I - Scanning Radio-Normalized Radiation Pattern

(5-GHz Elevation)

Figure 11: CW9164I - Scanning Radio-Normalized Radiation Pattern

(5-GHz Azimuth)

Figure 14: CW9164I - Scanning Radio-Normalized Radiation Pattern

(6-GHz Elevation)

Figure 13: CW9164I - Scanning Radio-Normalized Radiation Pattern

(6-GHz Azimuth)

Cisco Catalyst Wireless 9164I Series Wi-Fi 6E Access Point Hardware Installation Guide

Hardware Features

CW9164I (Internal Antenna) Radiation Patterns
