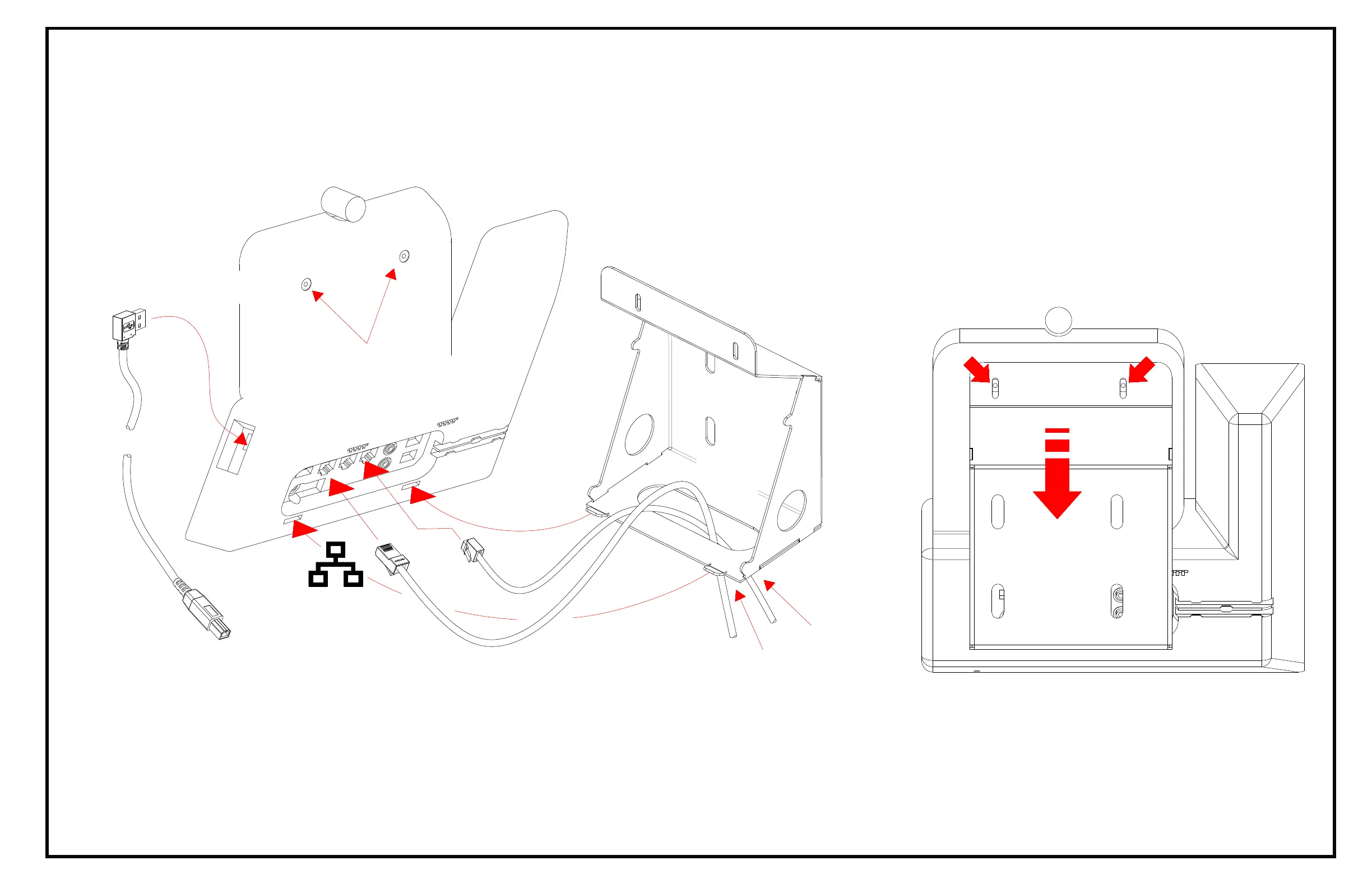

Cisco CP-8865 - Final Phone Mounting and Cable Routing; Securing Phone Mount and Cable Management

This Will Allow Camera to Line Up with
Camera Hole on the Faceplate
Screw
Mounting
Phone
Mount
Cable
Exit
Cables Run Through Cable Exit then
Connect to Phone
Mounting
Holes
the USB Port on the Side
Right Angle USB-A to
Then Tightening Screws
Lower Phone Mount Until Tabs Stops
Tab
Tab
the USB to Analog Audio Module (UAAM)
USB-B to
Screw
Mounting
from Serial
Controller
Network Cable
AUX
Update Note: 1) Serial Controller RJ11 to AUX
Date: 02/07/2019
