Cisco Firepower 2140 Hardware Installation Guide

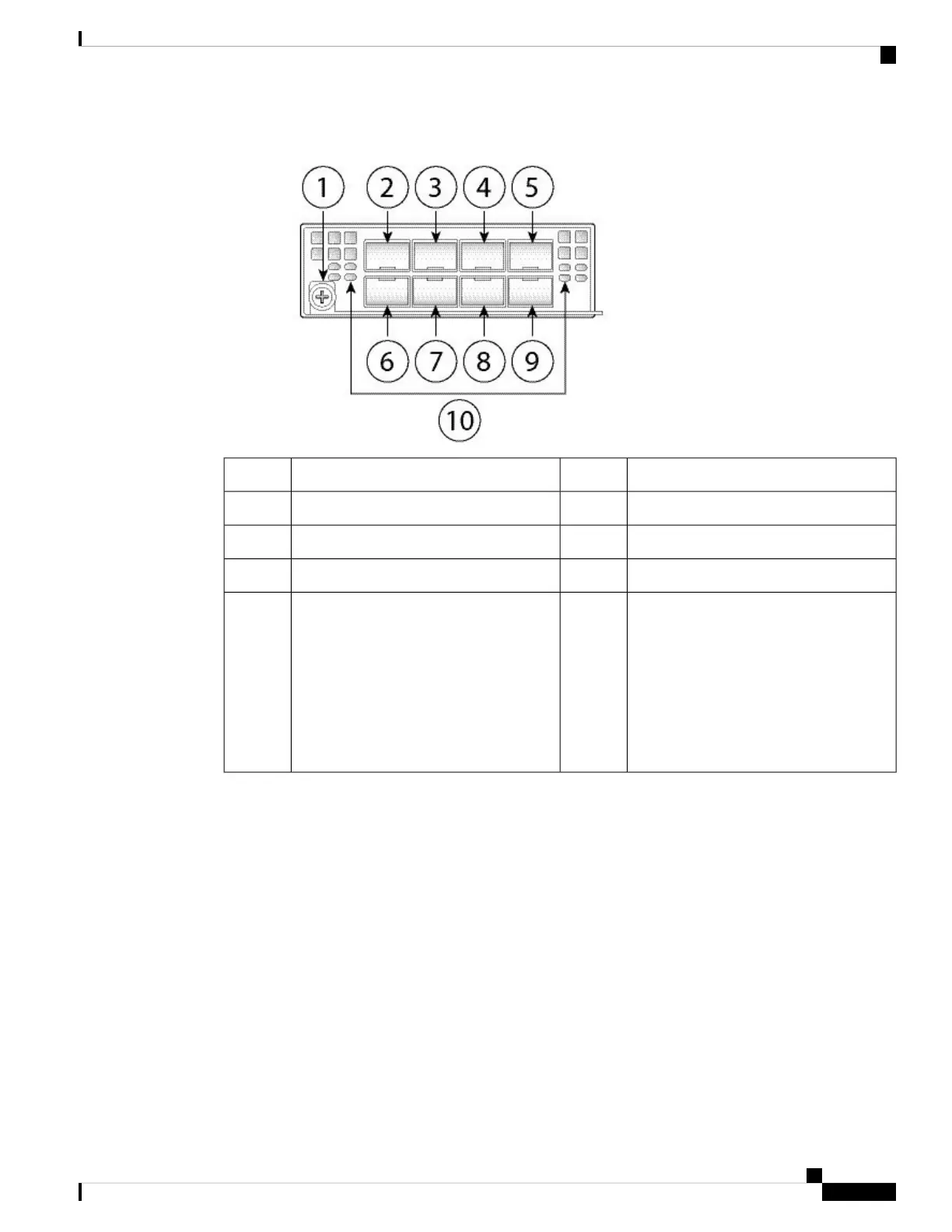

Figure 13: FPR2K-NM-8X1G
Ethernet X/1
2Captive screw/handle1
Ethernet X/5
4
Ethernet X/3
3
Ethernet X/2
6
Ethernet X/7
5
Ethernet X/6
8
Ethernet X/4
7
Network activity LEDs
• Unlit—No connection or port is not
in use.
• Amber—No link or network failure.
• Green—Link up.
• Green, flashing—Network activity.
10
Ethernet X/8
9
Hardware Bypass Network Modules
Fail-to-wire (also known as hardware bypass) is a physical layer (Layer 1) bypass that allows paired interfaces
to go into bypass mode so that the hardware forwards packets between these port pairs without software
intervention. Fail-to-wire provides network connectivity when there are software or hardware failures. Hardware
bypass is useful on ports where the Firepower security appliance is only monitoring or logging traffic. The
hardware bypass network modules have an optical switch that is capable of connecting the two ports when
needed.
The fail-to-wire network modules have built-in SFPs.
Hardware bypass is supported only on a fixed set of ports. You can pair Port 1 with Port 2, Port 3 with Port
4, but you cannot pair Port 1 with Port 4 for example.
Cisco Firepower 2100 Series Hardware Installation Guide
19
Overview
Hardware Bypass Network Modules

Cisco Firepower 2140 Specifications

General

Model	Cisco Firepower 2140
Category	Firewall
Firewall Throughput	20 Gbps
Power Supply	Dual, Hot-swappable
Firewall Throughput (Maximum)	20 Gbps
Firewall Throughput (Application Visibility and Control AVC)	10 Gbps
Form Factor	1 RU
Memory	32 GB
Operating System	Cisco Firepower Threat Defense (FTD)
Maximum Concurrent Sessions	4, 000, 000
Network Interfaces	8 x 1G/10G SFP+
Concurrent Sessions	4, 000, 000
Interfaces	8 x 1G/10G SFP+
Throughput	20 Gbps
