Cisco Firepower 2140 Hardware Installation Guide

Figure 12: FPR2K-NM-8X10G
Ethernet X/1
2Captive screw/handle1
Ethernet X/5
4
Ethernet X/3
3
Ethernet X/2
6
Ethernet X/7
5
Ethernet X/6
8
Ethernet X/4
7
Network activity LEDs
• Off—No connection or port is not in
use.
• Amber—No link or network failure.
• Green—Link up.
• Green, flashing—Network activity.
10
Ethernet X/8
9
1-G Network Module

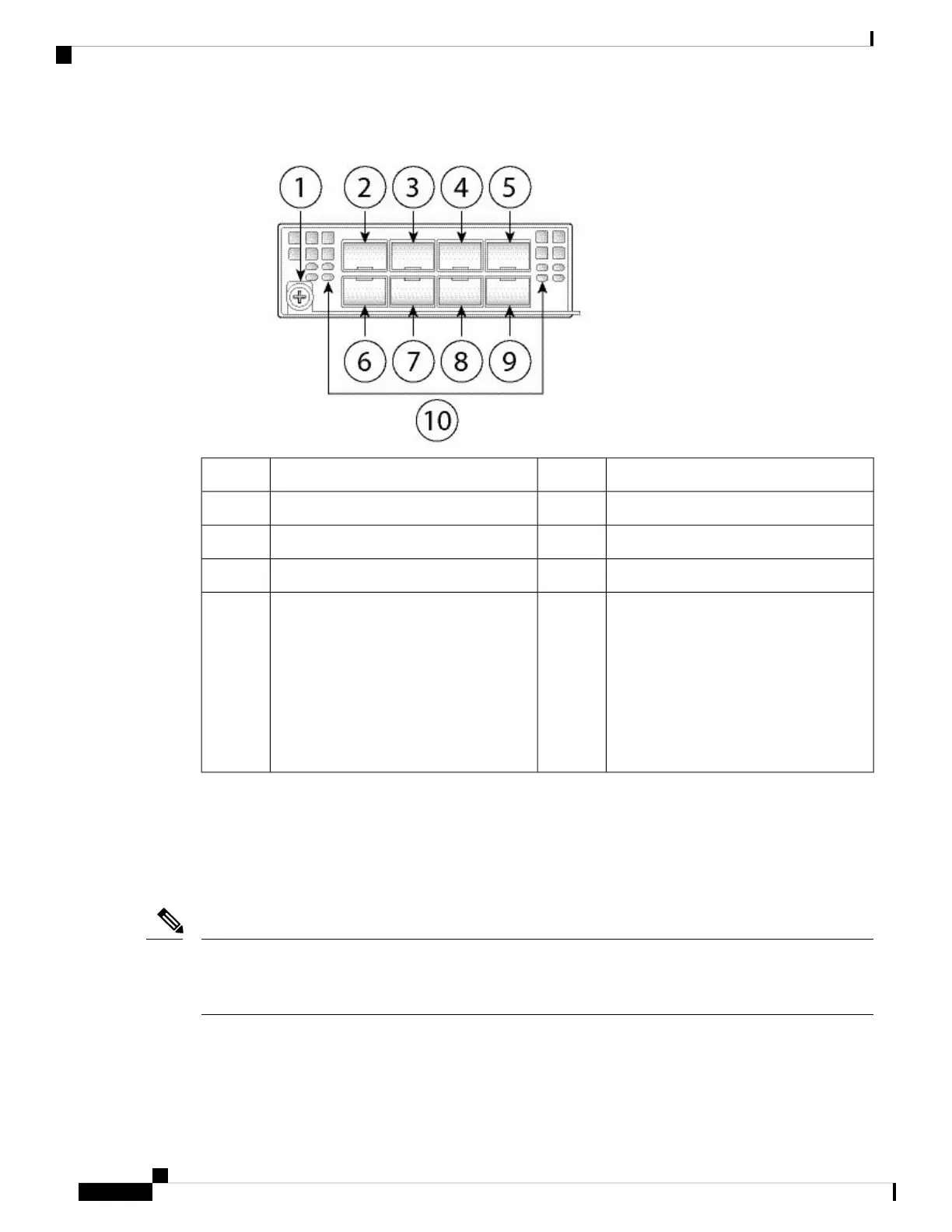

The following figure shows the front panel of the 1-G network module (FPR2K-NM-8X1G). The
FPR2K-NM-8X1G is a single-wide module that supports hot swapping. The eight ports are numbered from
top to bottom, left to right.
You can fit four copper SFPs in either the top row of ports or the bottom row of ports. Both rows cannot be
populated at the same time, because of the port row spacing. For a list of copper SFPS, see Supported SFP/SFP+
and QSFP Transceivers.
Note
Cisco Firepower 2100 Series Hardware Installation Guide
18
Overview
1-G Network Module

Cisco Firepower 2140 Specifications

General

Model	Cisco Firepower 2140
Category	Firewall
Firewall Throughput	20 Gbps
Power Supply	Dual, Hot-swappable
Firewall Throughput (Maximum)	20 Gbps
Firewall Throughput (Application Visibility and Control AVC)	10 Gbps
Form Factor	1 RU
Memory	32 GB
Operating System	Cisco Firepower Threat Defense (FTD)
Maximum Concurrent Sessions	4, 000, 000
Network Interfaces	8 x 1G/10G SFP+
Concurrent Sessions	4, 000, 000
Interfaces	8 x 1G/10G SFP+
Throughput	20 Gbps
