Cisco Firepower 2140 Hardware Installation Guide

Power Supply Module LEDs
The following figure shows the bicolor power supply LEDs on the power supply module. The figure shows
the AC power supply module. The DC power supply module has the same LEDs.

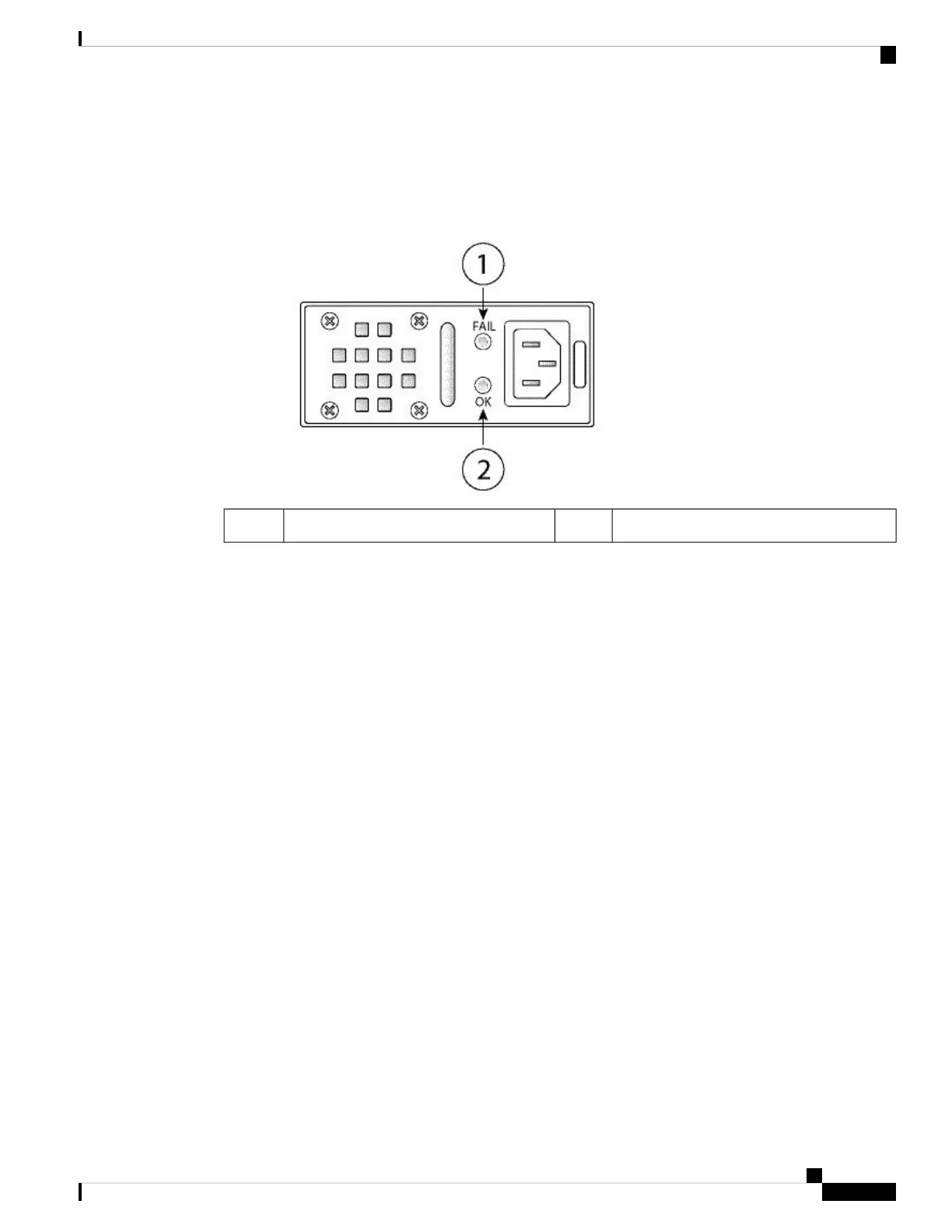

Figure 15: Power Supply Module LEDs
Green OK LED2Amber FAIL LED1
The following describes the power module supply LEDs.
Green LED (OK Status)
• Off—Input power not present.
• Green, flashing—Input power present, but system is not powered up (power switch is off).
• Green—The power supply module is enabled and running.
Amber LED (Fail Status)
• Off—No fault detected.
• Amber, flashing—Fault warning, power supply may still work but could fail due to high temperature,
failing fan, or over current.
• Amber—Fault detected; power supply not working properly. Includes over voltage, over current, over
temperature, and fan failure.
For More Information
• See Remove and Replace the Power Supply Module, on page 70 for the procedure for removing and
replacing the power supply module in the Firepower 2130 and 2140.
Fan Modules
The Firepower 2110 and 2120 have four fixed fans. If the fans fail, you must send your 2110 or 2120 for
RMA.
Cisco Firepower 2100 Series Hardware Installation Guide
25
Overview
Fan Modules

Cisco Firepower 2140 Specifications

General

Model	Cisco Firepower 2140
Category	Firewall
Firewall Throughput	20 Gbps
Power Supply	Dual, Hot-swappable
Firewall Throughput (Maximum)	20 Gbps
Firewall Throughput (Application Visibility and Control AVC)	10 Gbps
Form Factor	1 RU
Memory	32 GB
Operating System	Cisco Firepower Threat Defense (FTD)
Maximum Concurrent Sessions	4, 000, 000
Network Interfaces	8 x 1G/10G SFP+
Concurrent Sessions	4, 000, 000
Interfaces	8 x 1G/10G SFP+
Throughput	20 Gbps
