Cisco GS7000 User Manual

Appendix B
Enhanced Digital Return Multiplexing Applications
174

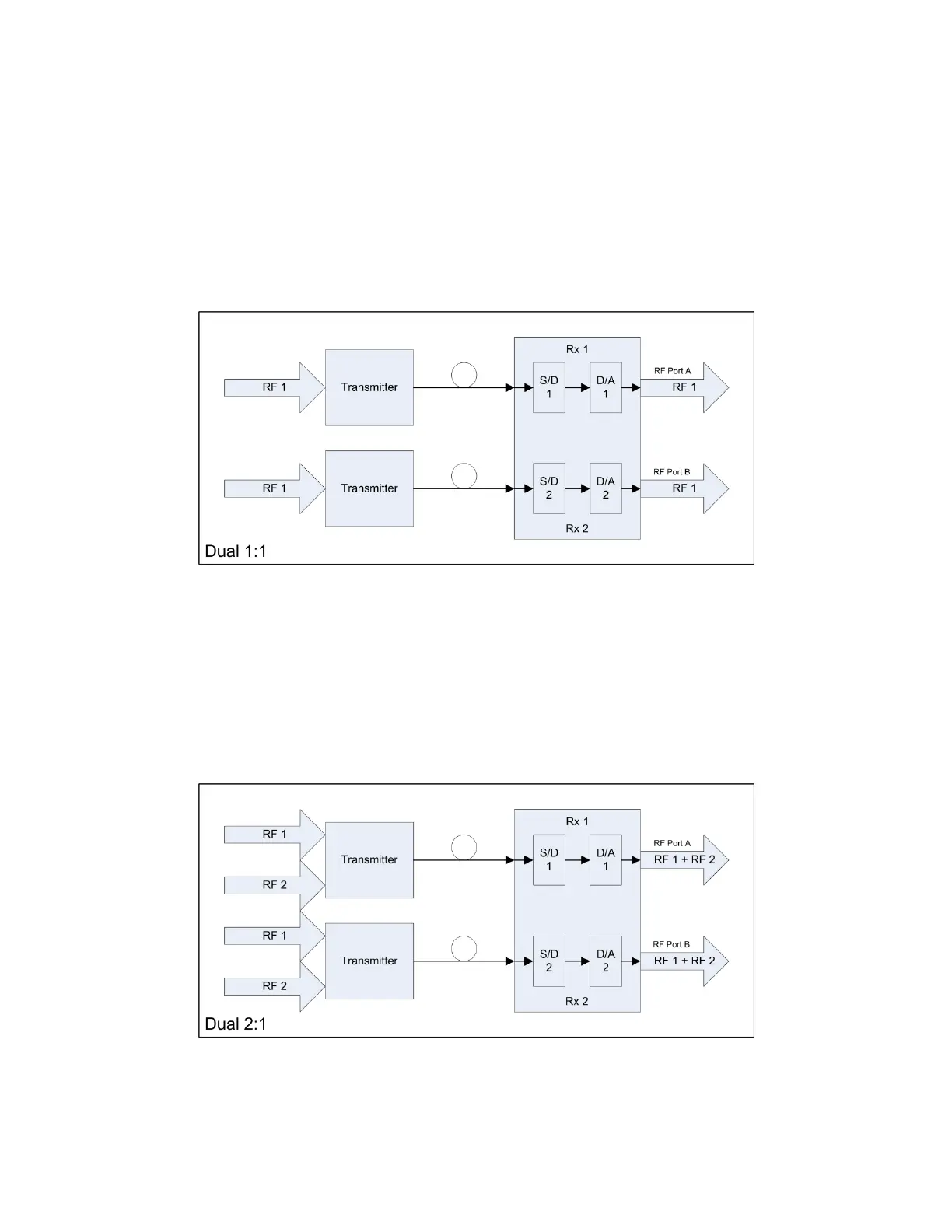

Dual 1:1 Mode
Referring to the diagram below, the EDR transmitter digitizes a single RF signal (RF
1) into a serial stream and transmits it over optical fiber to the receiver. At the
receiver, the serial streams from two separate transmitters are deserialized and
converted back to an analog RF signal. The RF signal (RF 1) for each transmitter is
sent separately to the two RF connectors on the back of the module.
Dual 2:1 Mode
Referring to the diagram below, two EDR transmitters are connected to one receiver.
Each EDR transmitter digitizes and combines two RF signals (RF 1 + RF 2) into one
serial stream and transmits it over optical fiber to the receiver. At the receiver, the
serial streams from the two separate transmitters are deserialized and converted
back to their two analog RF components. Since the receiver only has two RF ports,
the combined signals (RF 1 + RF 2) for each transmitter are sent to the two RF
connectors on the back of the module.
