Cisco GS7000 User Manual

Appendix B
Enhanced Digital Return Multiplexing Applications
182
two transmitter modules
install the modules in transmitter positions XMTR 1/XMTR 2
and XMTR 3/XMTR 4
AND
install an appropriate Reverse Configuration Module in the RF
amplifier assembly.
Refer to the RCM Section on page 40 for details.

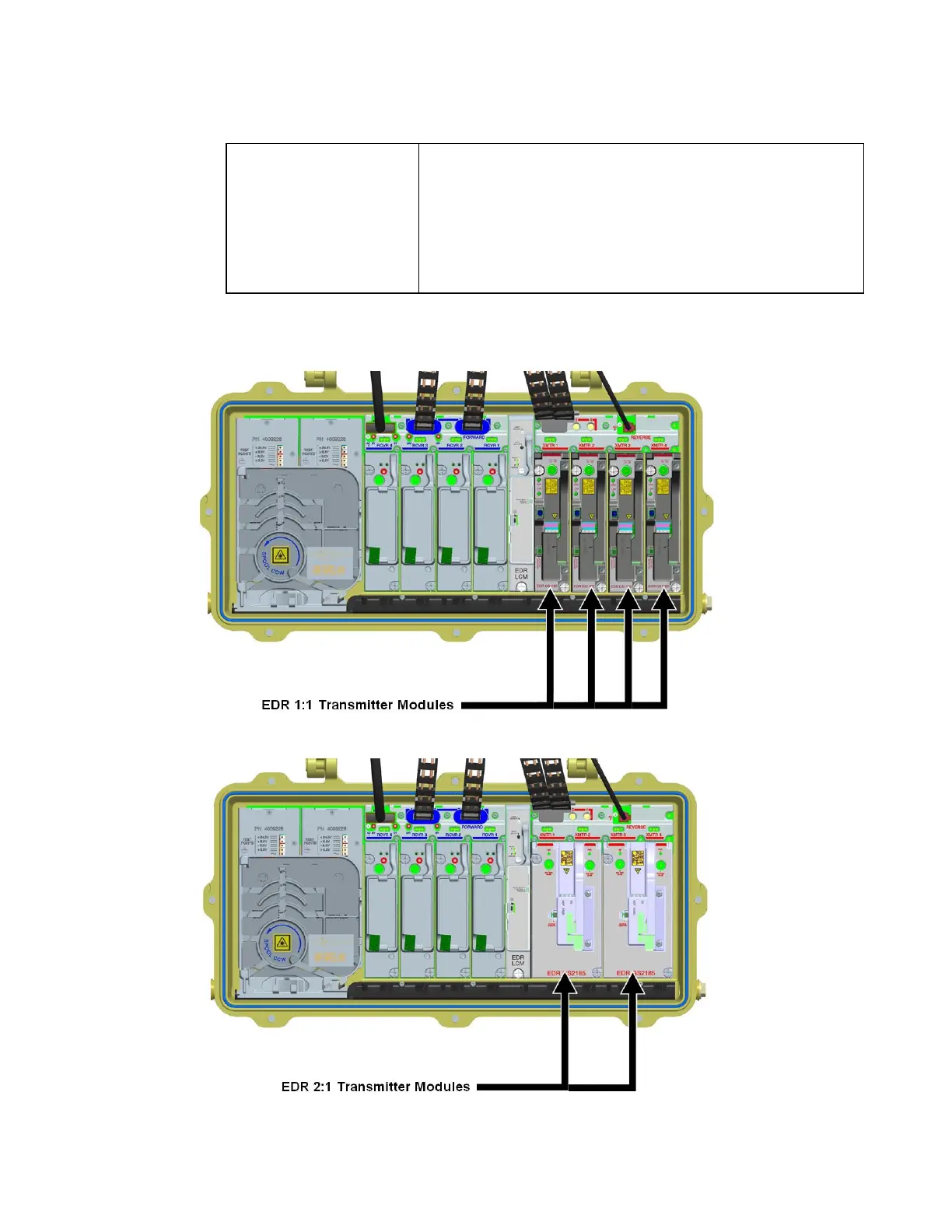

The following illustrations show the location of the installed modules in the node.
For EDR 1:1 Transmitter Module:
For EDR 2:1 Transmitter Module:
