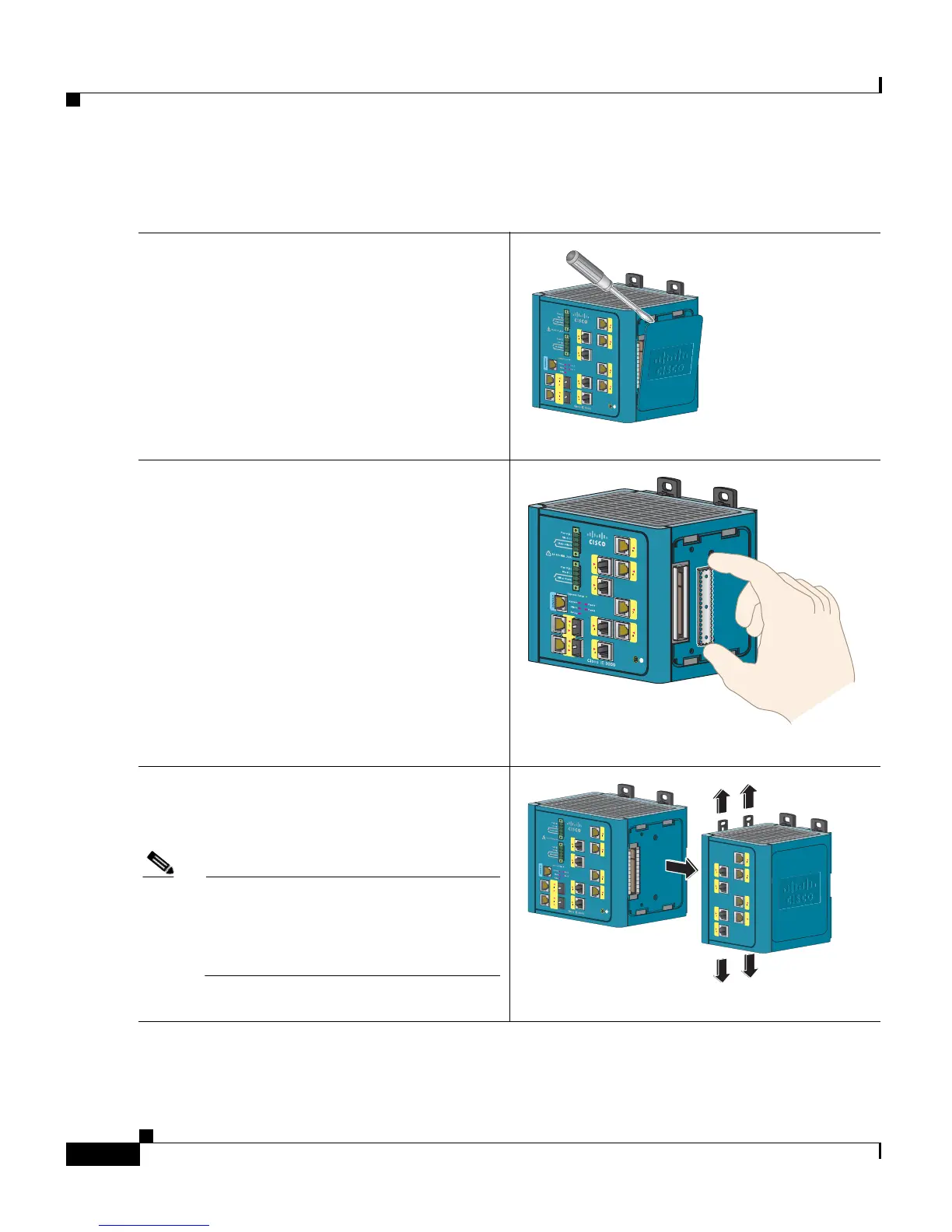

Follow these steps to connect the expansion modules to the switch.
Step 1
Remove the right side panel by firmly
grasping both sides in the middle and pulling
it outward. If necessary, use a flat-blade
screwdriver to pry open the side panel.
Step 2
Remove the EMI protective cover from the
connector.
Step 3
Push the upper module latches up and the
lower module latches down, and then slide the
switch and module together.
Note If you are installing a Cisco
IEM-3000-8TM module and a Cisco
IEM-3000-8FM module, install the
Cisco IEM-3000-8TM first.
