Cisco IE 3010 Switch Getting Started Guide
78-19582-02
Cisco IE 3010 Switch Getting Started Guide
Step 3
Use a Phillips screwdriver to loosen the captive screw on the power-input terminal, and open
the cover.
Step 4
Use twisted-pair copper wire (14- to 18-AWG) long enough to connect from the power-input
terminal to the power source.
Note Use 12-AWG (minimum) for the low-voltage DC power supply module, and use
16-AWG (minimum) for the high-voltage AC or DC power supply module.
Step 5

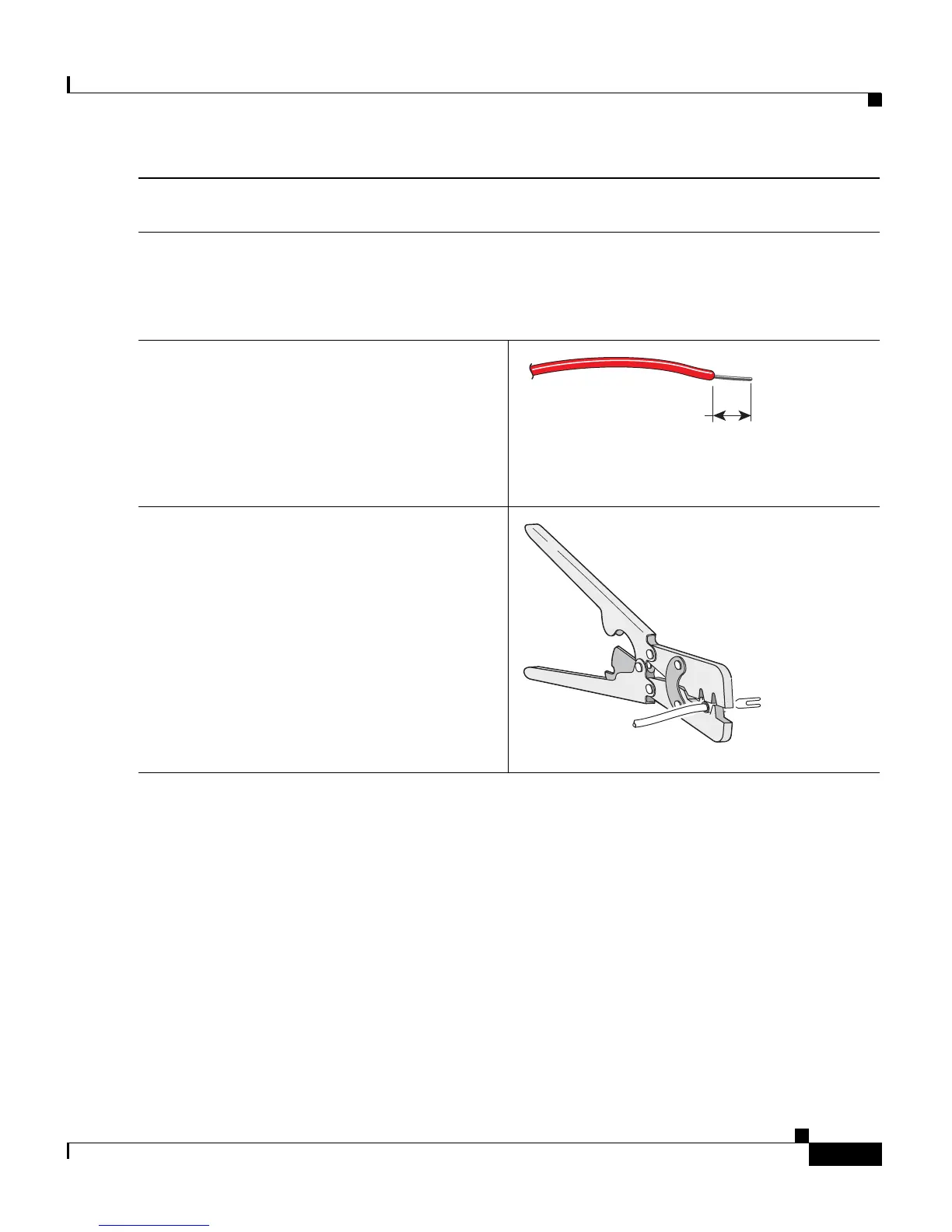

Strip each of the two wires to 0.25 inch (6.3
mm) ± 0.02 inch (0.5 mm). Do not strip more
than 0.27 inch (6.8 mm) of insulation from
the wire. Stripping more than the
recommended amount of wire can leave
exposed wire from the connector after
installation.
Step 6
Insert the wire into a spade terminal, and
crimp the spade terminal to the wire.
Note You can use a ring, spade, or flanged
spade terminal.
0.27 inch (6.8 mm)
208565
207225
