Cisco IE 3010 Installation Instructions

21
Switch Installation
Installing the Switch

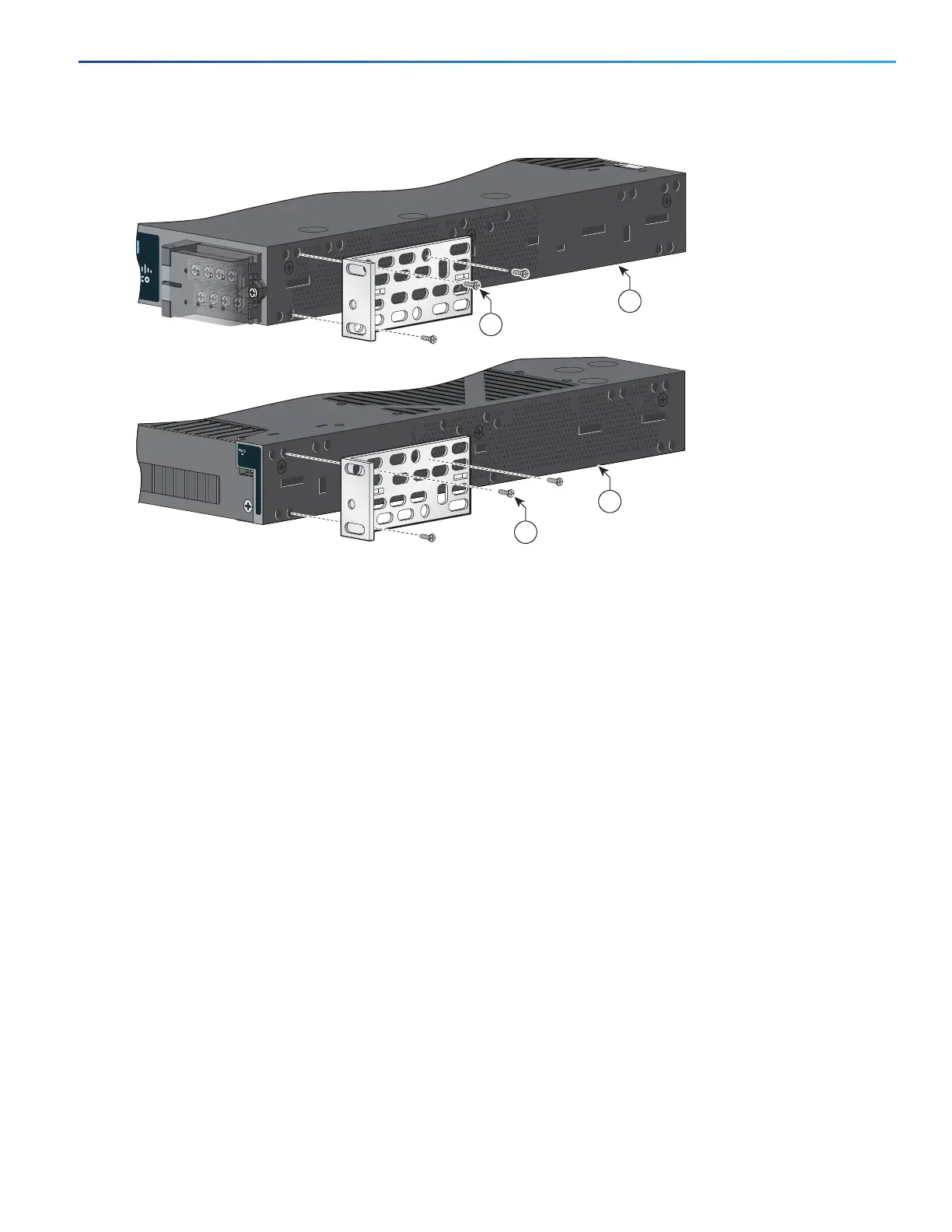

Figure 11 Attaching Brackets for 19-Inch Racks
Attaching Brackets for 19-Inch Racks for IP-30 Compliance (Optional)
Before installing the mounting brackets, you need to install the rubber plugs in the unused mounting holes. The rubber
plugs are not supplied with the switch. You can order a kit (part number IE-3010-IP30KIT) containing the rubber plugs.
You can order a kit (part number IE-3010-IP30KIT) that contains the rubber plugs.
Figure 12 on page 22 shows a close-up of the rubber plug. You can install the rubber plugs in the holes as shown in
Figure 13 on page 23 and Figure 14 on page 24.
1 Phillips flat-head screws 3 Power-supply-side mounting position
2 Cable-side-mounting position
Cisco CGS 2520
207231
1
1
2
3
