Switch Installation
Installing the Switch

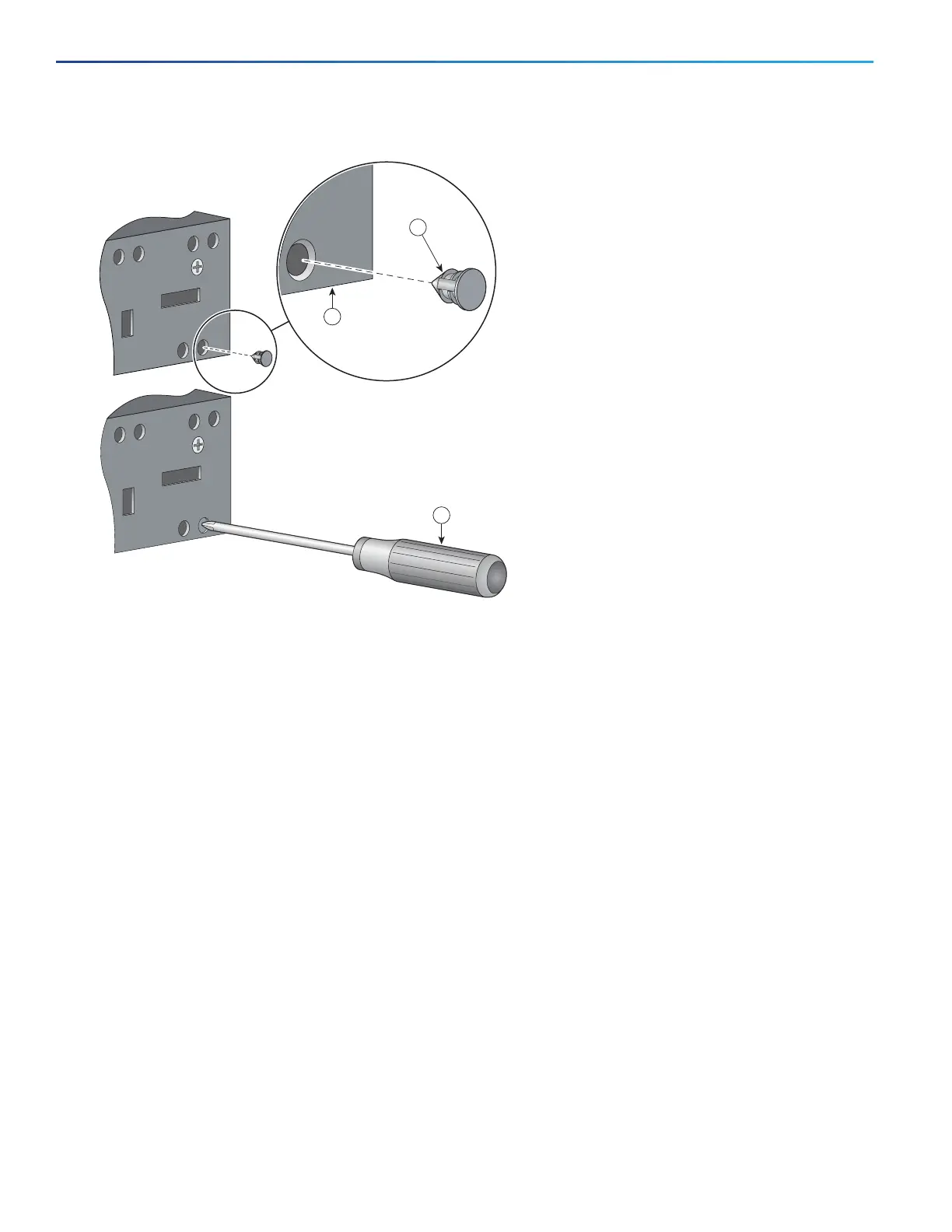

Figure 12 Inserting the Rubber Plug
1. Identify your bracket mounting position. See Figure 15 on page 25 or Figure 16 on page 26.
2. Insert the rubber plugs in the appropriate holes on both sides of the switch. See Figure 13 on page 23 or Figure 14
on page 24.
3. Use a screwdriver or pen to completely push in the rubber plugs. See Figure 12 on page 22.
4. Install the brackets on both sides of the switch. See Figure 15 on page 25 or Figure 16 on page 26.
1 Rubber plug 3 Screwdriver
2 Switch
255738
2
3
1
