Hardware Overview
The routers also support Cisco IOx Software, providing an open, extensible environment for hosting
additional operating systems and applications directly at the network edge. They can enhance other
Cisco IoT System products across multiple industries, including transportation, manufacturing,
electrical utilities, and others.
For a complete listing of the routers capabilities, see the Cisco 829 Industrial Integrated Services Routers
Product Information.
Hardware Overview
This section covers the overview of the IR809 and IR829.
IR829 Product Overview

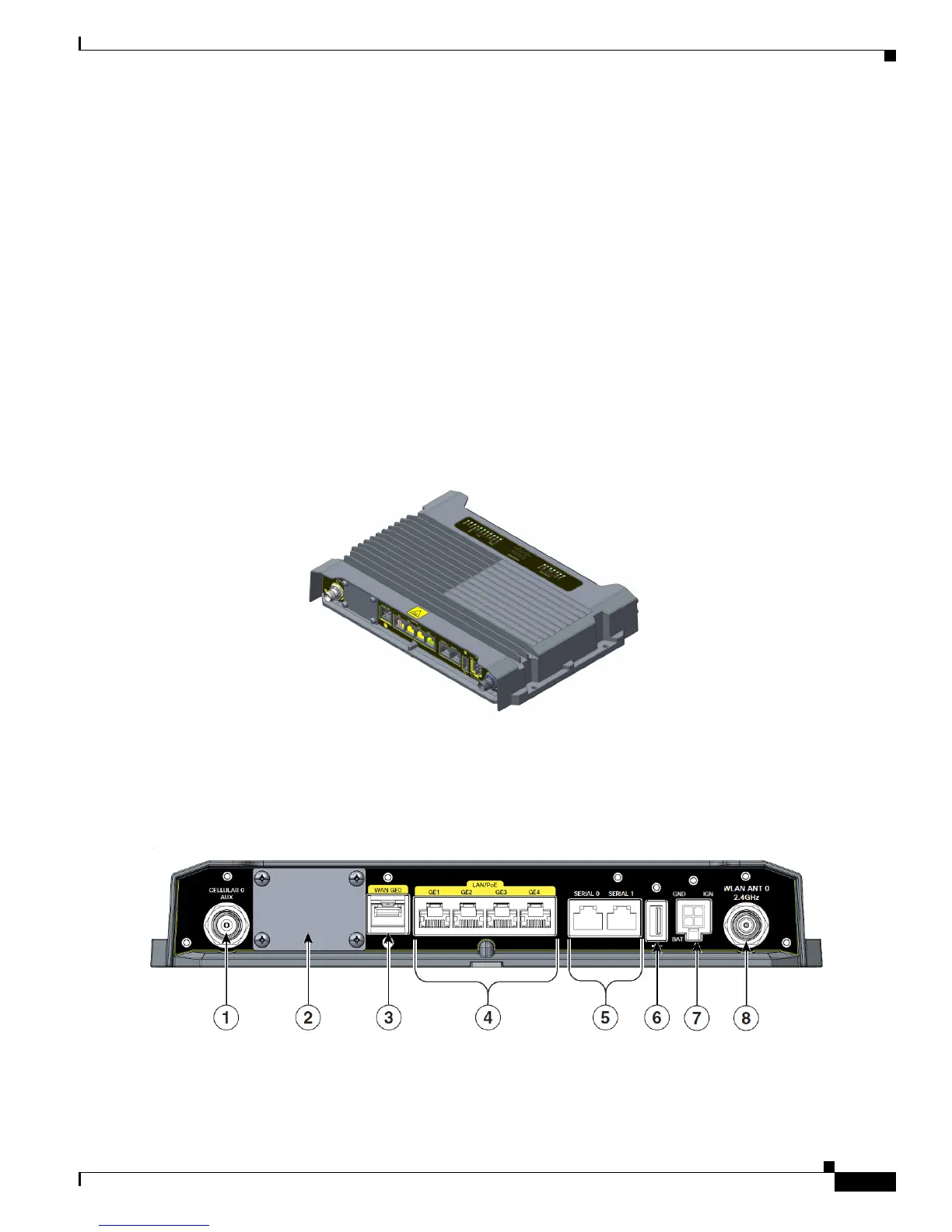

Figure 2-1 shows the IR829.
Figure 2-1 Cisco IR829 Integrated Services Router
Figure 2-2 shows the front panel details of the Cisco IR829 Single Modem.
Figure 2-2 Cisco IR829 Front Panel Single Modem
