Cisco ISA 3000 Industrial Security Appliance Hardware Installation Guide
Chapter 1 Product Overview
General Description

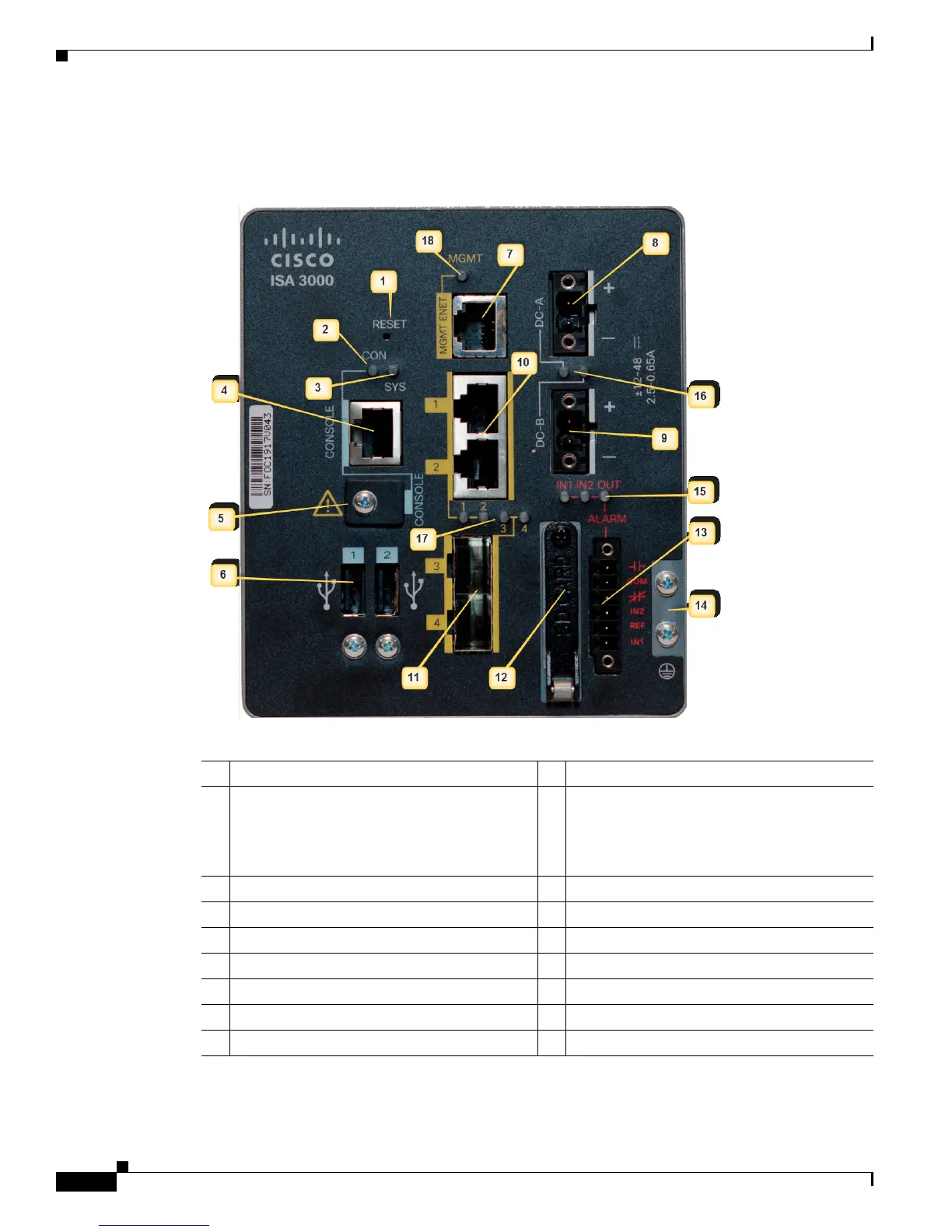

Figure 1-3 shows the front panel details of the Cisco ISA 3000.
Figure 1-3 Cisco ISA 3000 Front Panel
1 Reset Pinhole Access 10 RJ45 10/100/100 BaseT Connectors 1&2
2 Console LED 11 On the ISA-3000-2C2F SKU, these are the
SFP sockets.
On the ISA-3000-4C SKU, these are RJ45
10/100/100 BaseT Connectors 3&4,
3 System LED 12 1GB removable SD flash memory card slot
4 Console connector (RJ-45) 13 Alarm Connectors
5 Console connector (mini-USB) 14 Grounding Point
6 USB connectors 15 Alarm LEDs
7 Management Interface 16 DC Power LEDs
8 DC power connection A 17 Gig Ethernet LEDs
9 DC power connection B 18 Management LED
