Cisco ISA 3000 Connecting Instructions

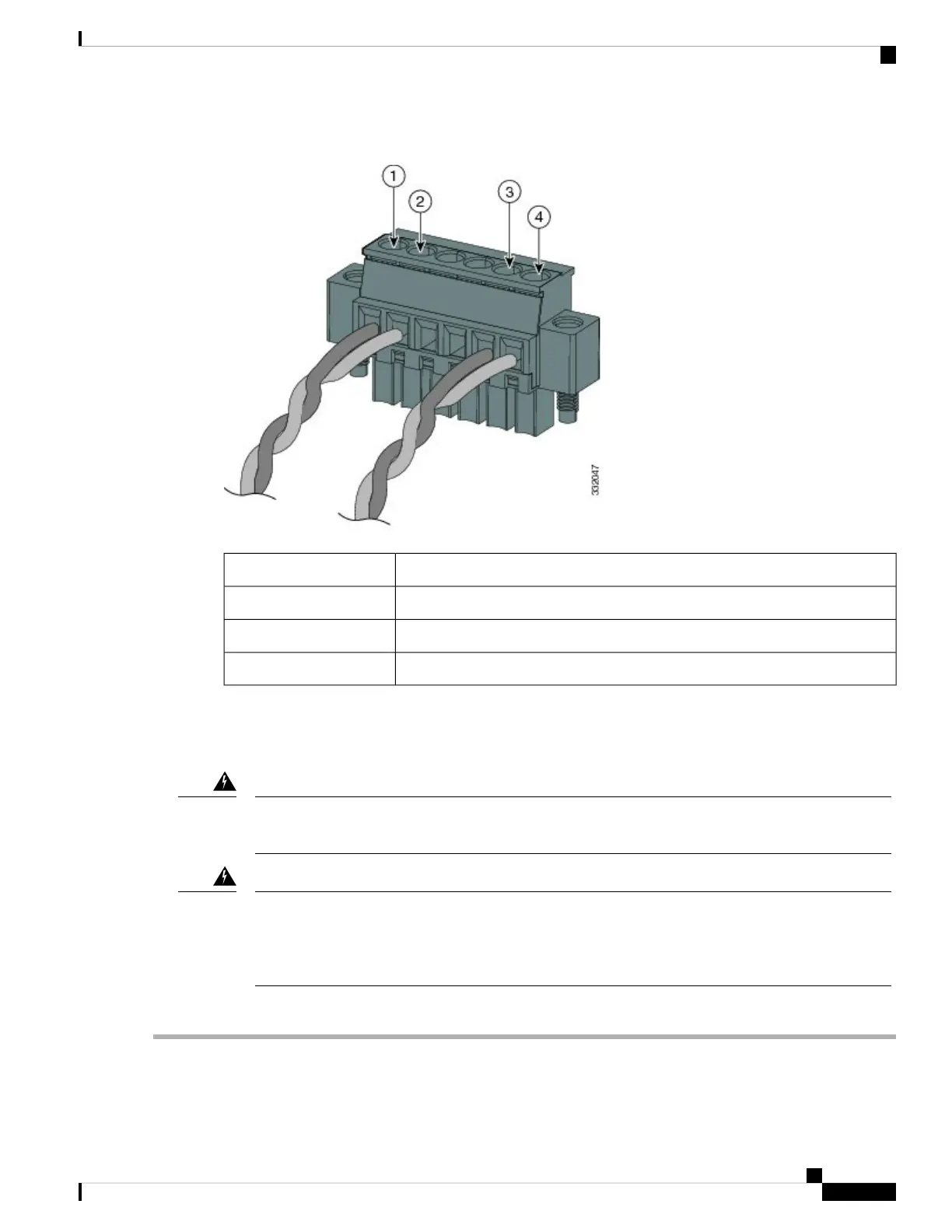

Figure 7: Completed Connections for Two External Alarm Devices on the Alarm Connector
IN1 wired connection1
REF wired connection2
COM wired connection3
NO wired connection4
Attaching the Alarm Connector to the Device
Failure to securely tighten the captive screws can result in an electrical arc if the connector is accidentally
removed. Statement 397
Warning
When you connect or disconnect the power and/or alarm connector with power applied, an electrical
arc can occur. This could cause an explosion in hazardous area installations. Be sure that all power is
removed from the device and any other circuits. Be sure that power cannot be accidentally turned on or
verify that the area is nonhazardous before proceeding. Statement 1058
Warning
To attach the alarm connector to the front panel of the device:
Step 1 Insert the alarm connector into the receptacle on the device front panel.
Connecting the Cisco ISA 3000
11
Connecting the Cisco ISA 3000
Attaching the Alarm Connector to the Device

Cisco ISA 3000 Specifications

General

Firewall	Yes
VPN	Yes
Concurrent Sessions	100, 000
Memory	4 GB
Flash Memory	8 GB
