Chapter 2 Introducing the Cisco ISE-3300 Series Hardware
ISE-3315, ISE-3355, and ISE-3395 Hardware Summary
ISE-3315 Serial Number Location
The serial number label is located at the lower left of the front-panel of the ISE-3315 (see Figure 2-1).
CPI figure for the Cisco ISE-3315 still needs to be created.

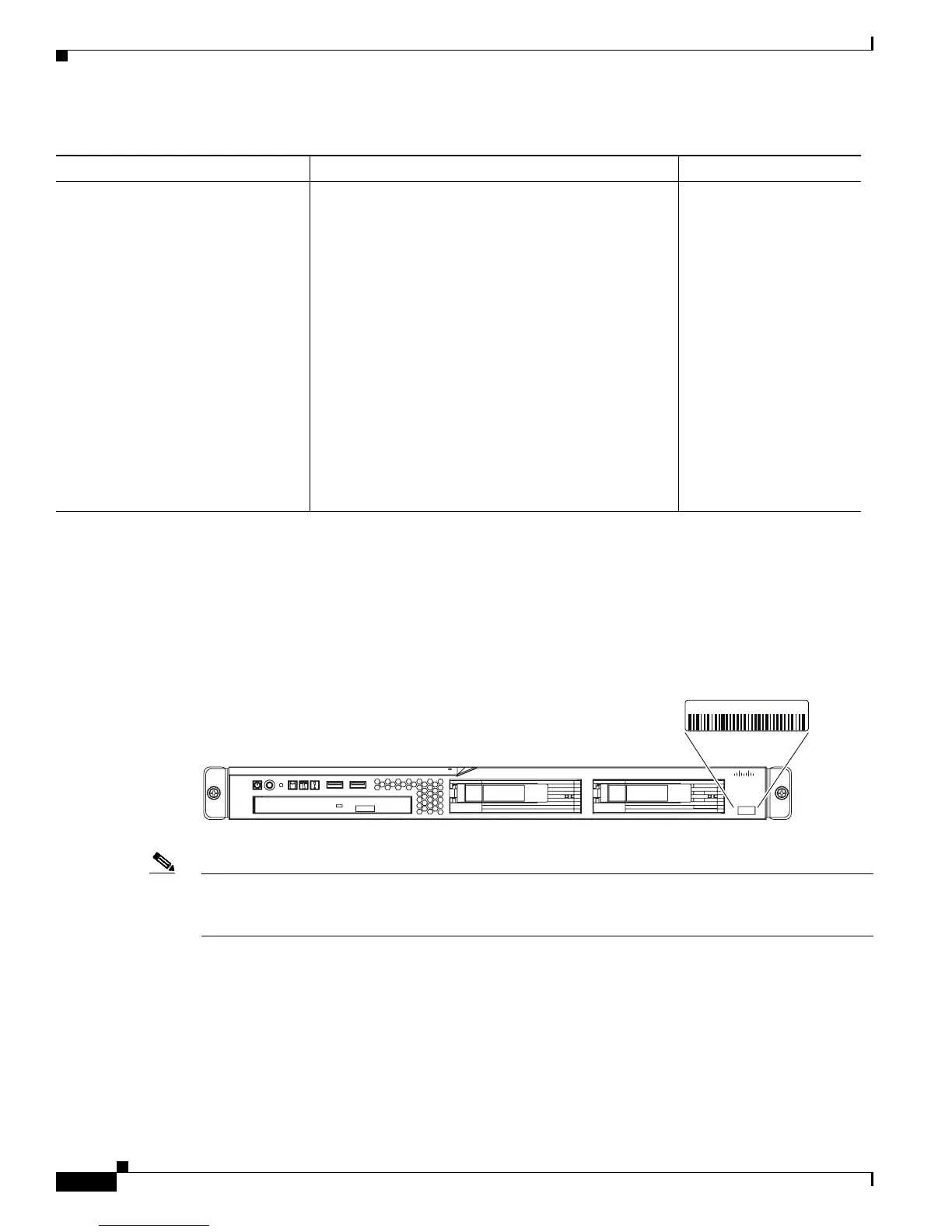

Figure 2-1 Cisco ISE-3315 Appliance Serial Number Location
Note The serial number for the ISE-3315 is seven characters in length. You can also view the ISE-3315 serial
number location on the Cisco Support website using the Cisco Product Identification Tool. For details,
see Cisco Product Identification Tool, page 218.
Cisco ISE-3315 Front and Rear Panels
The Cisco ISE-3315 platform is recommended for deployments serving from between 100 and 500 users
and managing up to three additional appliances or three HA pairs. The Cisco ISE-3315 comes equipped
with four network interfaces that provide flexibility in NIC interface selection and also make it capable
for use in high-availability configurations. For additional details, see Cisco ISE and FIPS-Compliance,
page 24.
ISE-3395 Platform
Supports the following:
• Between 1000 and 5000
concurrent users
• Up to 40 standalone or HA-pairs
• Dual processor: 2 x Quad-core Intel Xeon
(Nehalem)
• 8GB RAM
• 4 x 300 GB SAS RAID HDD
• 4 10/100/1000 LAN ports [2 integrated NICs; 2
Gigabit NICs (PCI-E)]
• CD/DVD-ROM Drive
• 4 USB Ports (1 front, 1 internal, 2 rear)
• Cavium CN1120-NHB-E SSL Accelerator Card or
nCipher Card (FIPS 140-2 Level 2 Common
Criteria EAL2)
• Power supply: Dual 675W (redundant)
Note The ISE-3395 is based on the IBM System
x3550 M2 server platform.
• Figure 2-12 on
page 2-14, “Cisco
ISE-3395 Front Panel
Features”
• Figure 2-13 on
page 2-15, “Cisco
ISE-3395 Front Panel
LEDs/Buttons”
• Figure 2-14 on
page 2-16, “Cisco
ISE-3395 Rear Panel
Features”
• Figure 2-15 on
page 2-17, “Cisco
ISE-3395 Rear Panel
LEDs”
Table 2-1 Cisco ISE Appliance Hardware Summary (continued)
Cisco ISE Appliance Product Hardware Specifications Diagrams
279775
Cisco ISE 3315 Series
Identity Services Engine
CISCO
XXXXNNNNNNN
