Cisco MDS 9100 Series User Manual

1-9
Cisco MDS 9148S Multilayer Switch Hardware Installation Guide
OL-20185-01
Chapter 1 Product Overview
Power Supplies

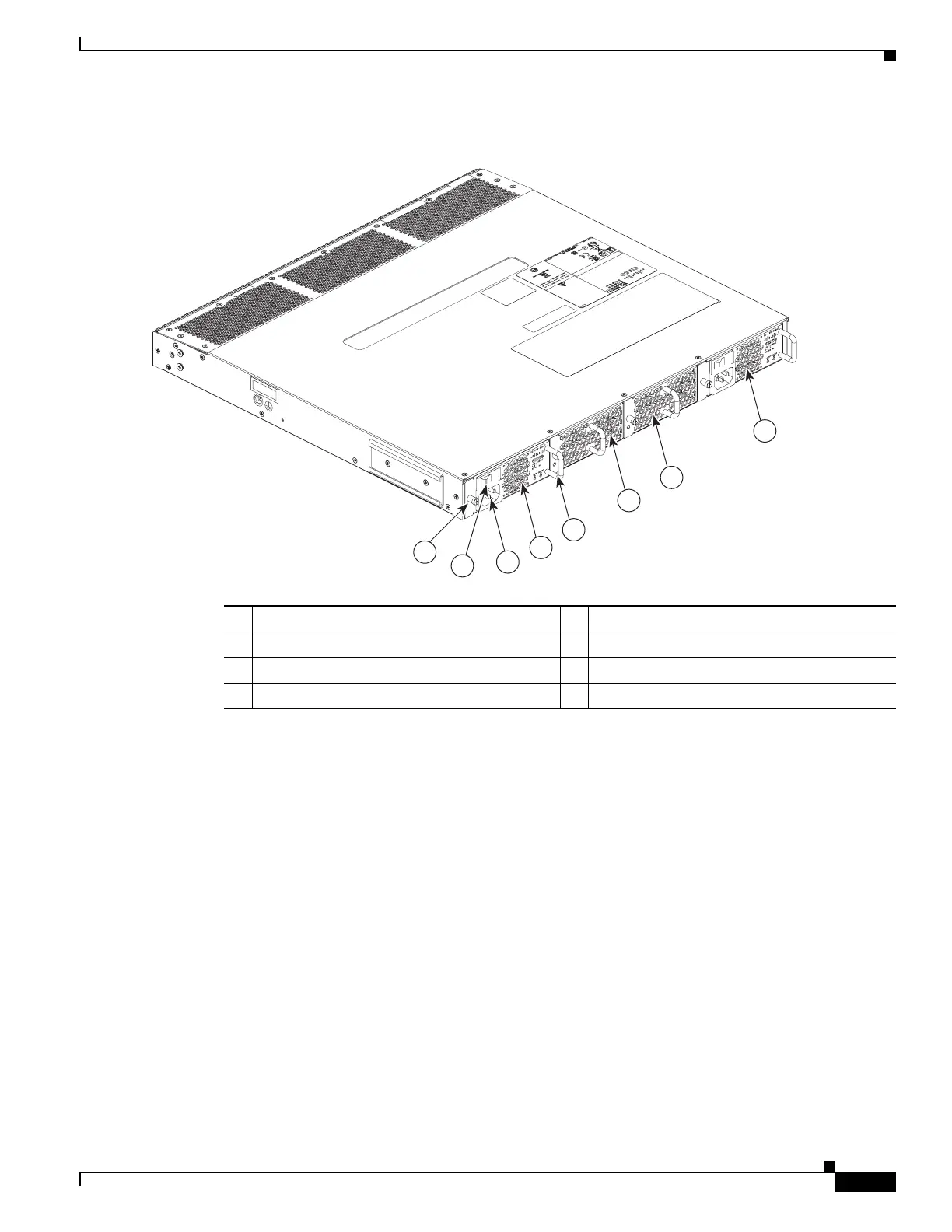

Figure 2 Rear View of the Cisco MDS 9148S Multilayer Fabric Switch
This chapter describes hardware information about the Cisco MDS 9148S switch and its components,
and it includes the following sections:
• Power Supplies, page 1-9
• Fan Modules, page 1-10
• Cisco MDS 9148S Multilayer Switch Ports, page 1-10
• Switch LEDs, page 1-10
• Supported SFP+ Transceivers, page 1-12
Power Supplies
The Cisco MDS 9148S switch supports only AC power supplies. Each power supply provides sufficient
power to maintain switch operation in the event of a single power supply failure. Power supplies are hot
swappable and can be individually replaced without disruption to the system.
The power supply has two LEDs, INPUT OK and OUTPUT OK. Power supply status is also indicated
on a front panel LED.
352747
1
4
3
2
6
5
7
8
1 Captive screw 5 Power module handle
2 On/Off switch 6 Fan module (fans 4 & 2)
3 Power receptable 7 Fan module (fans 3 & 1)
4 Power supply 2 8 Power supply 1
