Attaching the Brackets

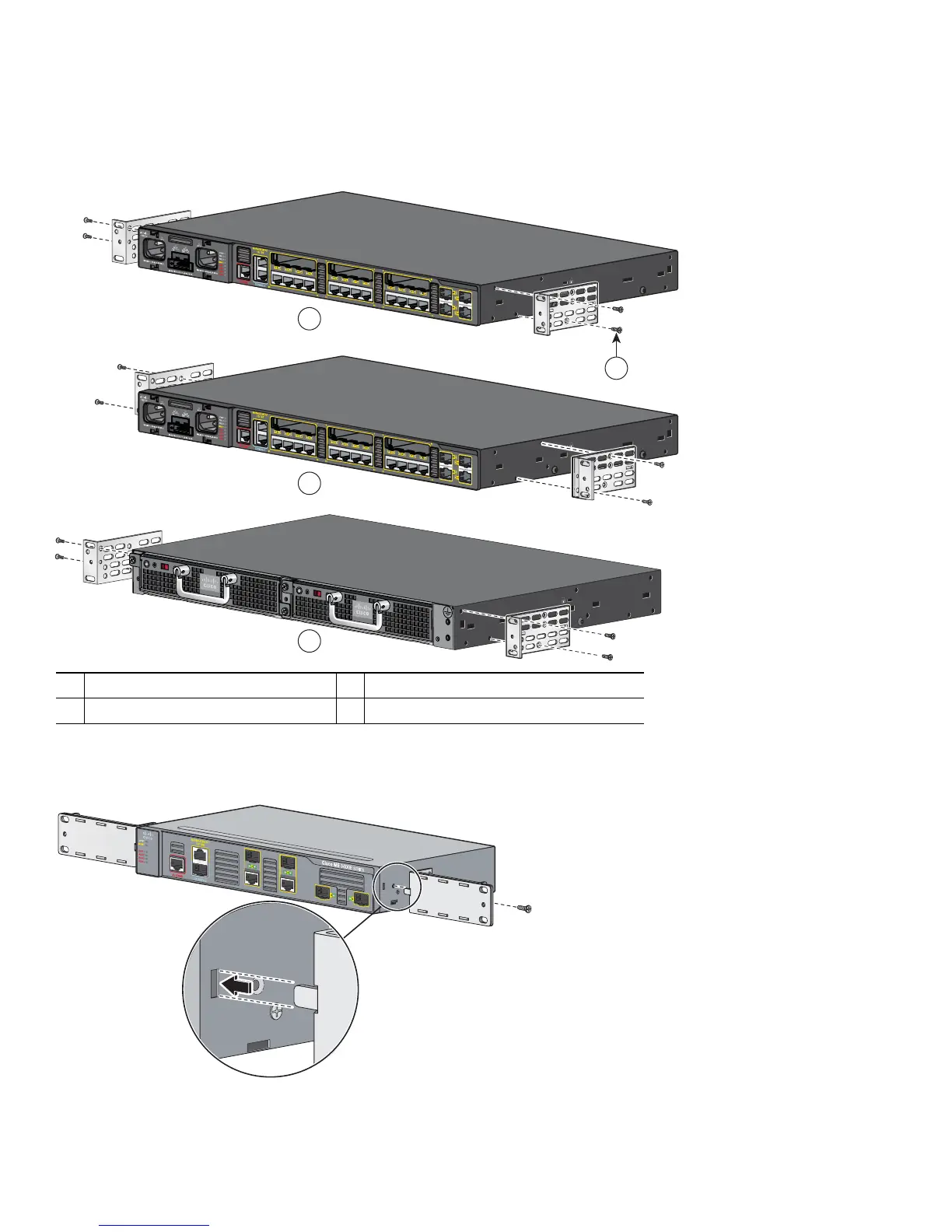

Use four Phillips flat-head screws to attach the long side of the brackets to the switches in one of mounting positions (for all
but the Cisco ME 3400EG-2CS-A switch):
Use the tab on the bracket and the Phillips flat-head screw to attach the short side of each bracket to the
Cisco ME 3400EG-2CS-A switch in this mounting position:
1
Front-mounting position
3
Mid-rack mounting position (telco rack)
2
Number-8 Phillips flat-head screws
4
Rear-mounting position
