Cumulative no. of prefixes denied: 0.
Prefix advertised 0, suppressed 0, withdrawn 0
Maximum prefixes allowed 1048576
Threshold for warning message 75%, restart interval 0 min
An EoR was not received during read-only mode
Last ack version 1, Last synced ack version 0
Outstanding version objects: current 0, max 0
Additional-paths operation: None
Connections established 0; dropped 0
Local host: 192.13.26.5, Local port: 179, IF Handle: 0x00000000
Foreign host: 192.13.26.6, Foreign port: 23456
Last reset 00:00:00
External BGP neighbor not directly connected.
Related Topics
• Connect MPLS VPN Customers, on page 15
• Configure Multiprotocol BGP on the PE Routers and Route Reflectors, on page 12
For more details on BGP, see BGP Configuration Guide for Cisco NCS 540 Series Routers.
Configure RIPv2 as the Routing Protocol Between the PE and CE Routers

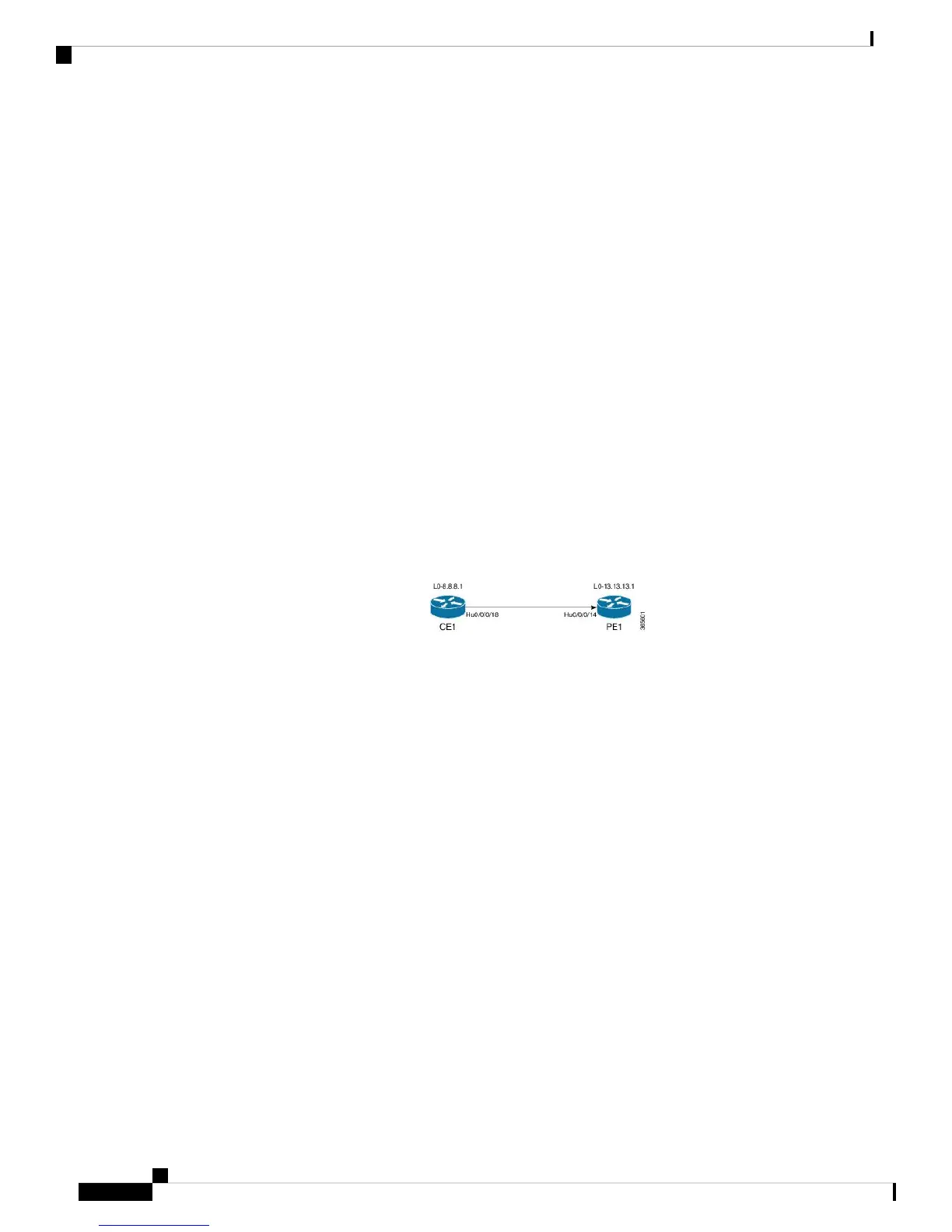

Figure 8: RIP as the Routing Protocol between PE and CE Routers
Configuration Example
This example lists the steps to configure RIPv2 as the routing protocol between the PE and CE routers. The
VRF instance vrf1601 is configured in the router rip configuration mode and the respective interface
(TenGigE0/0/0/0.1601 on PE1 and TenGigE0/0/0/0.1601 on CE1) is associated with that VRF. The redistribute
option specifies routes to be redistributed into RIP.
PE1:
Router-PE1#configure
Router-PE1(config)#router rip
Router-PE1(config-rip)#vrf vrf1601
Router-PE1(config-rip-vrf)#interface TenGigE0/0/0/0.1601
Router-PE1(config-bgp-vrf-if)#exit
Router-PE1(config-bgp-vrf)#redistribute bgp 2001
Router-PE1(config-bgp-vrf)#redistribute connected
Router-PE1(config-bgp-vrf)#commit
CE1:
Router-CE1#configure
Router-CE1(config)#router rip
Router-CE1(config-rip)#vrf vrf1601
Router-CE1(config-rip-vrf)#interface TenGigE0/0/0/0.1601
Router-CE1(config-bgp-vrf-if)#exit
Router-CE1(config-bgp-vrf)#redistribute connected
L3VPN Configuration Guide for Cisco NCS 540 Series Routers, IOS XR Release 6.3.x
22
MPLS L3VPN Overview
Configure RIPv2 as the Routing Protocol Between the PE and CE Routers

Cisco NCS 540 Series Specifications

General

Series	NCS 540
Category	Network Router
Operating System	Cisco IOS XR
Form Factor	1RU, 2RU
Forwarding Capacity	Up to 800 Gbps
Redundancy	Power supply, fan
Power Supply	AC or DC options
Management	CLI, SNMP, NETCONF
Storage Temperature	-40 to 70°C (-40 to 158°F)
Humidity	5% to 95% non-condensing
